3-DM556T-S30 Discontinued

This product has been discontinued and is no longer available for purchase. Please contact us for a replacement.

Downloads

Same series
ModelPriceStock
1-CL57Y-S12 Discontinued—————
1-CL57Y-S20 Discontinued—————
1-CL57Y-S30A Discontinued—————
1-CLYS20 Discontinued—————
1-CLYS30 Discontinued—————
1-CLYS30-1M5 Discontinued—————
1-CLYS30S-V20 Discontinued—————
1-CLYS40 Discontinued—————
1-DM542T-24HS34 Discontinued—————
1-DM542T-24HS39 Discontinued—————
1-DM556S-24HS39 Discontinued—————
11C13S0754ED3-013RS Discontinued—————
11E13S0754ED2-100RS Discontinued—————
11E18S0754ED2-101RS Discontinued—————
11E18S0754FD3-250RS Discontinued—————
11E18S0754GD3-250RS Discontinued—————
11E20S0674AA2-100RS Discontinued—————
11E20S0674ED2-100RS Discontinued—————
11HS12-0674D2-PG27 Discontinued—26.85Economy Planetary——
11HS12-0674S-PG100 Discontinued—99.548Economy Planetary——
11HS20-0674D-PG14-AR3 Discontinued—13.73Economy Planetary——
11HS20-0714S-PG100 Discontinued—99.05Economy Planetary——
11N13S0754AA2-100RS Discontinued—————
11N13S0754QE2-150RS Discontinued—————
11N18S0754ED3-250RS Discontinued—————
11N20S0674AA2-100RS Discontinued—————
14E13S0574JE3-150RS Discontinued—————
14E13S0574QE3-150RS Discontinued—————
14E17S0914JE3-250RS Discontinued—————
14E17S0914QE3-250RS Discontinued—————
View all in category
3 Axis Stepper CNC Kit 3.0Nm(425oz.in) 4.2A Nema 23 Stepper Motor & Driver DM556T & 48V Power Supply
This CNC kit included: 3 x Digital Stepper Drive 1.8~5.6A 20-50VDC DM556T 3 x Nema 23 Bipolar 3N... Read More
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

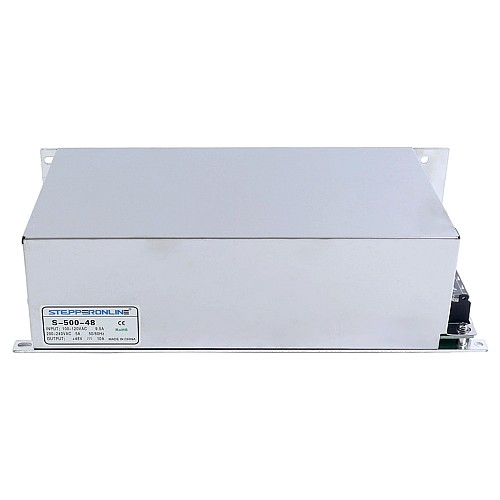

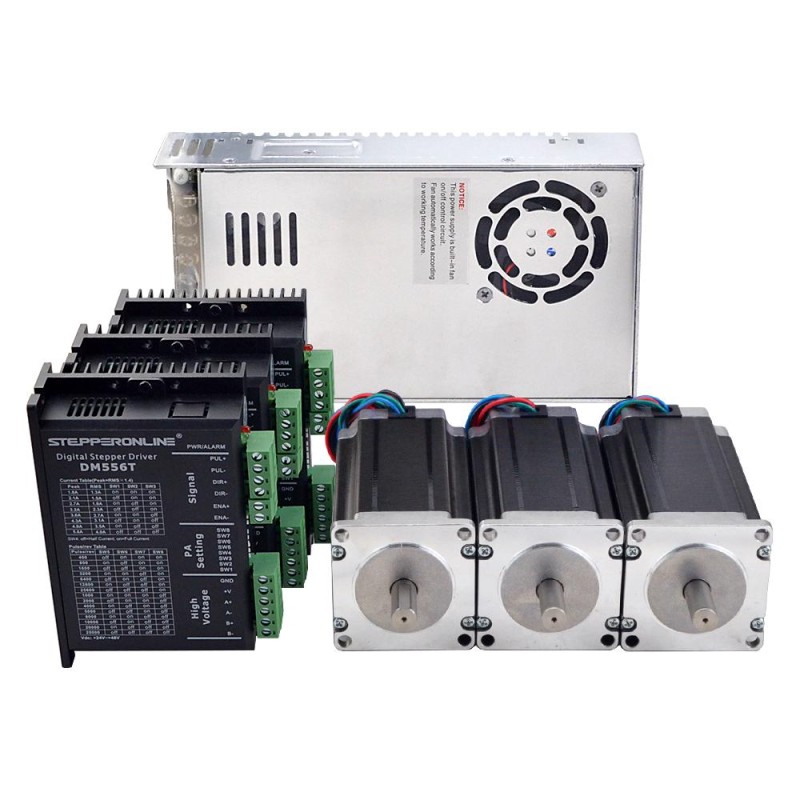

This CNC kit included:
  • 3 x Digital Stepper Drive 1.8~5.6A 20-50VDC DM556T
  • 3 x Nema 23 Bipolar 3Nm(425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC

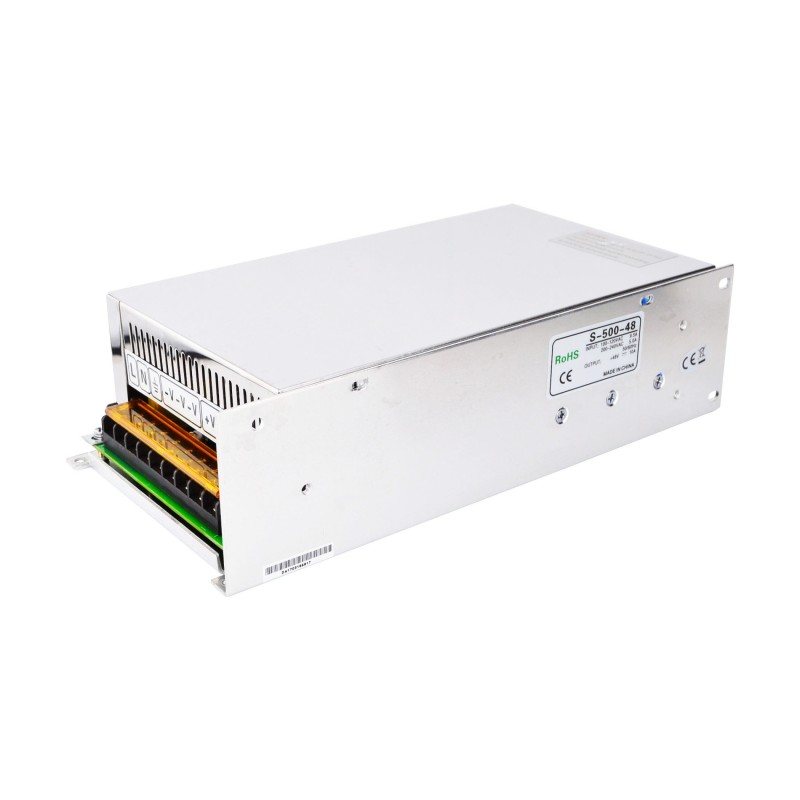

  • 1 x 500W 48V 10.5A 115/230V Switching Power Supply Stepper Motor CNC Router Kits

Motor Specification

  • Manufacturer Part Number: 23HS45-4204S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 3.0Nm(425oz.in)
  • Rated Current/phase: 4.2A
  • Phase Resistance: 0.9ohms
  • Inductance: 3.8mH±20%(1KHz)
  • Frame Size: 57 x 57mm
  • Body Length: 113mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

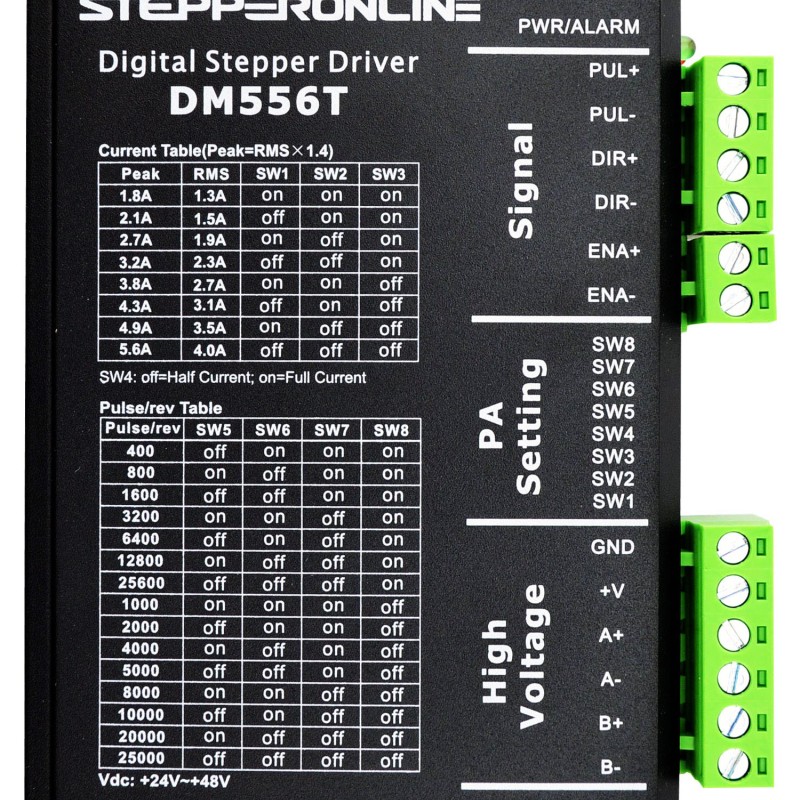

Driver Specification

  • Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
  • Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
  • Step & direction(PUL/DIR) control
  • Multi-Stepping for smooth motor movement
  • TTL compatible and optically isolated inputs
  • Input voltage 20-50VDC
  • 16 selectable micro-step resolutions of 400-25,600 via DIP switches
  • 8 selectable output current settings of 1.8 - 5.6A via DIP switches
  • Soft-start with no "jump" when powered on
  • Pulse input frequency up to 200KHz
  • Automatic idle-current reduction
  • Protections for over-voltage and over-current

Power Specification

  • 48V DC 10.5A output
  • AC input voltage range: 90~135VAC/180~264VAC
  • High efficiency low cost
  • Forced air cooling by built-in DC fan
  • Low output ripple and yawp
  • Over current, over voltage, short circuit and overheat protections
  • 215*115*50mm(L*W*H)
Product Type
Product Type Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 300
Holding Torque(oz.in) 425
Input Voltage Reference(V) 24 - 48DC
No. of Phase 2
Number of Axes 3
Physical Specification
Frame Size(mm) Nema 23 (57 x 57)
Output Shaft Type D
Product Series TS Series
Shaft Diameter(mm) 10
