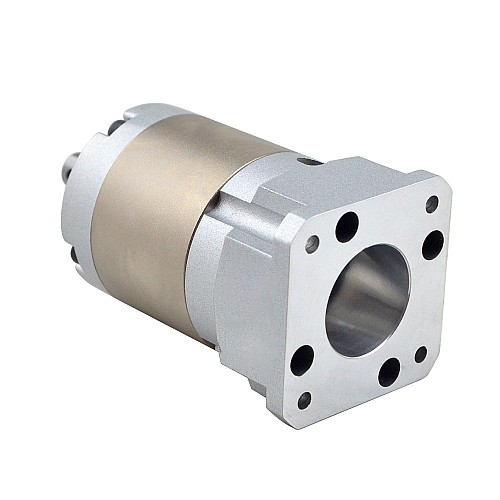

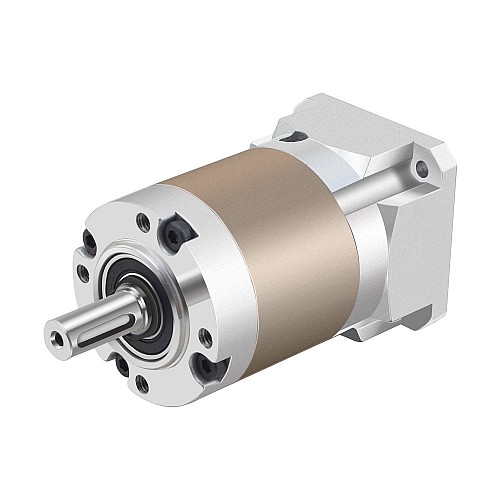

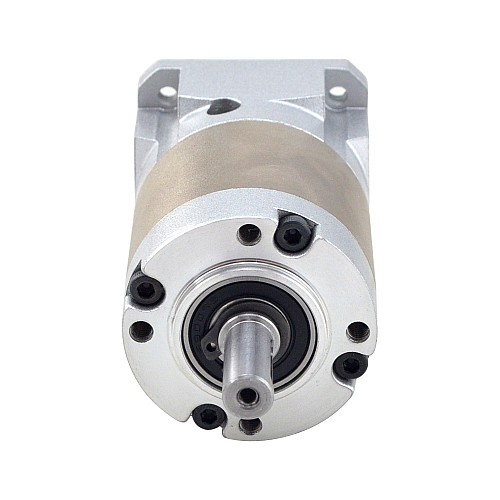

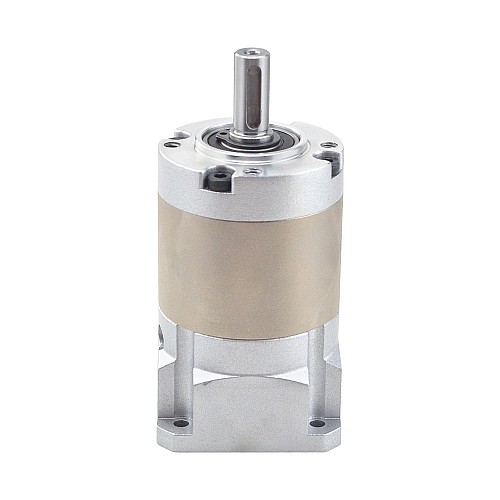

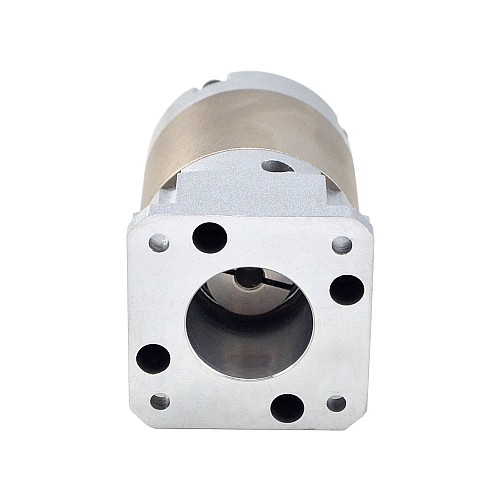

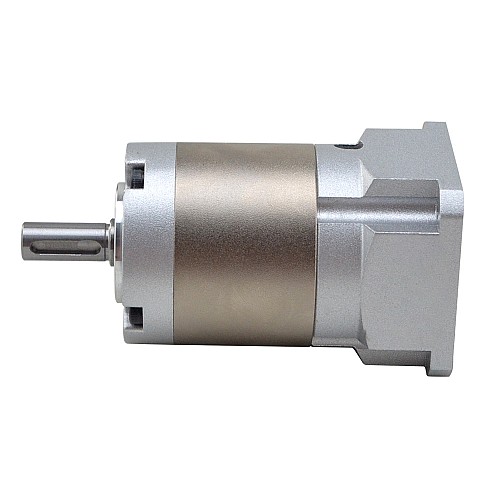

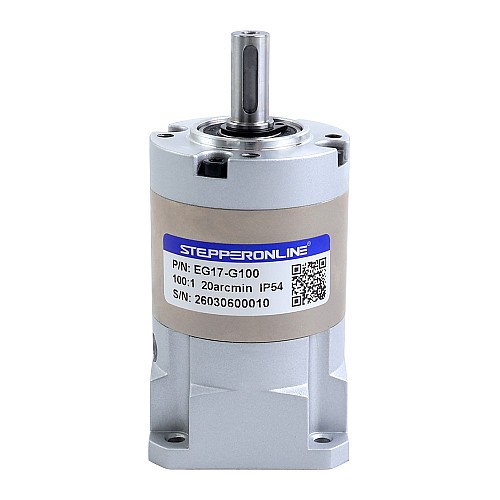

EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 20arc-min for Nema 17 Stepper Motor

0 reviews - Write a review

C$44.28

5 + C$42.77

10 + C$41.35

50 + C$40.03

100 + C$38.79

In Stock: 10000
Model: EG17-G100
Gross Weight: 0.43kg
Certificated: ISO, CE, REACH

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

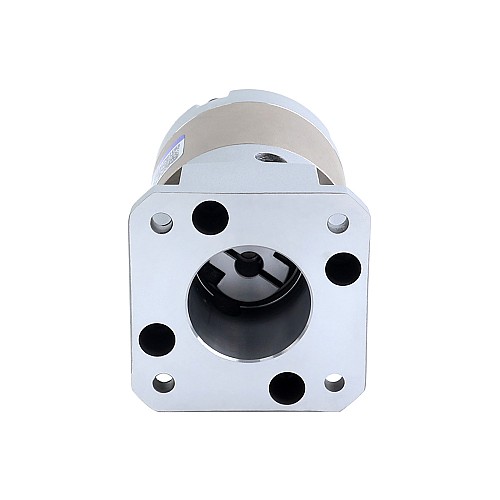

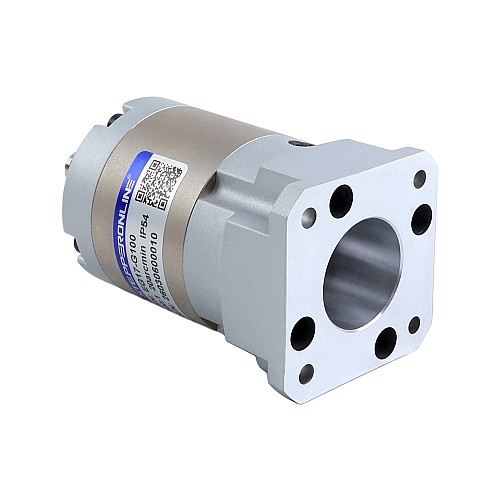

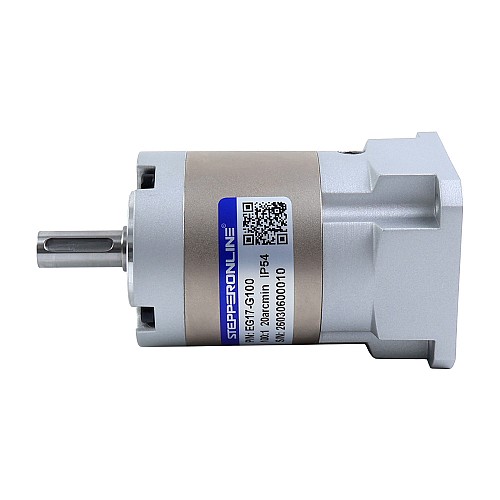

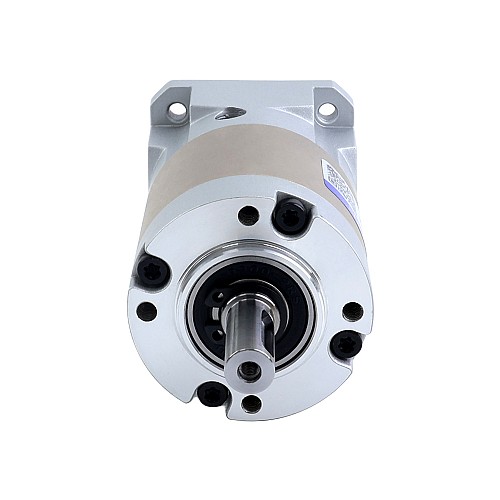

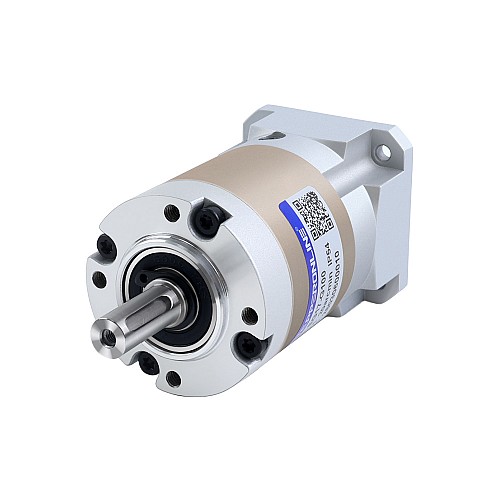

This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 100:1 and a maximum 20arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 17 stepper motor and brushless dc motor.

Gearbox Specifications

Part Number: EG17-G100
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 100:1
Efficiency: 94%
Rotor Inertia: 0.03kg·cm²
Backlash at No-load: <=20arcmin
Max.Permissible Torque: 5Nm(44.26lb-in)
Moment Permissible Torque: 10Nm(88.81lb-in)
Noise: <=65dB
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 42 x 42mm
Gearbox Length: 66mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ8mm
Output Shaft Length: 21.5mm
Input Shaft Diameter: Φ5mm
Input Shaft Length: 21.5-25mm

The suitable bracket is ST-M12.

Physical Specification
Backlash at No-load	<=20arcmin
Frame Size(mm)	42 x 42
Gear Material	Alloy Steel
Gear Ratio(xx:1)	100
Gearbox Length(mm)	66
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	5
Input Shaft Length(mm)	21.5 - 25
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 17 Stepper Motor
Output Shaft Diameter(mm)	8
Output Shaft Length(mm)	21.5
Output Shaft Type	Keyway
Product Series	EG
Weight(g)	391
