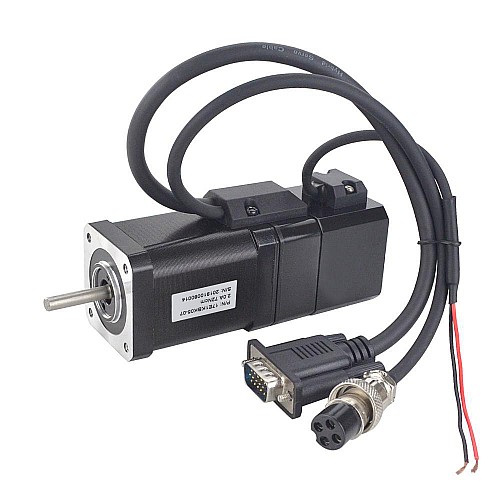

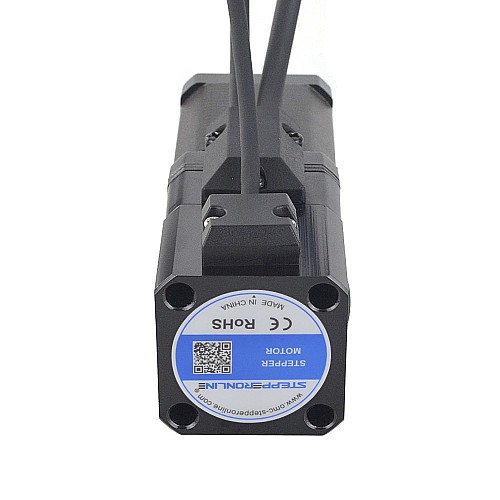

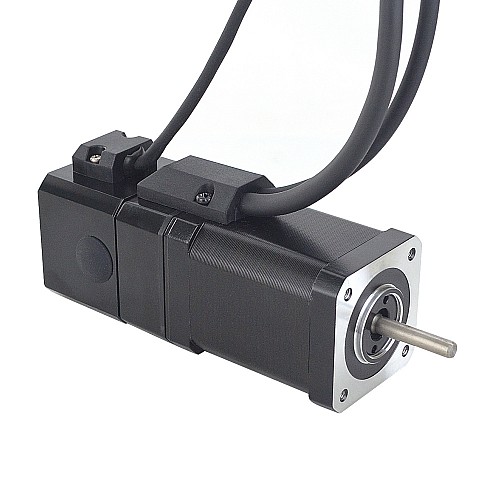

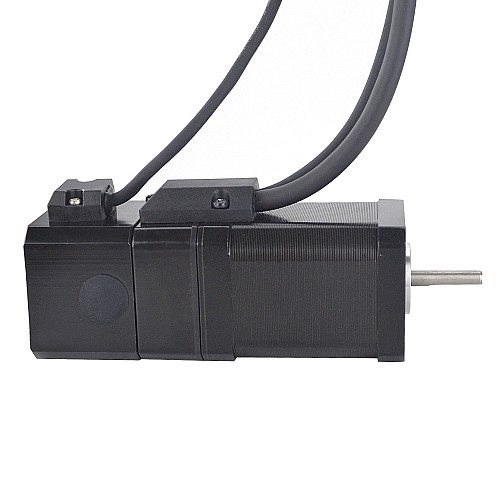

P Series Nema 17 Closed Loop Stepper Motor 72Ncm(101.98oz.in) with Electromagnetic Brake

0 reviews - Write a review

C$123.80

5 + C$117.99

10 + C$112.67

50 + C$107.83

100 + C$103.38

In Stock: 10000
Model: 17E1KBK05-07
Gross Weight: 0.90kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 17E1KBK05-07
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 72Ncm(101.98oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 1.75ohms
Inductance: 4.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Shaft Length: 15mm
Lead Length: 270mm
Weight: 0.5kg

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Incremental
Output Signal Channels: 2channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: ＜4V
Output Low Voltage: ＜1V

Brake Connections

Red--24V+
Red--24V-
0.5Nm

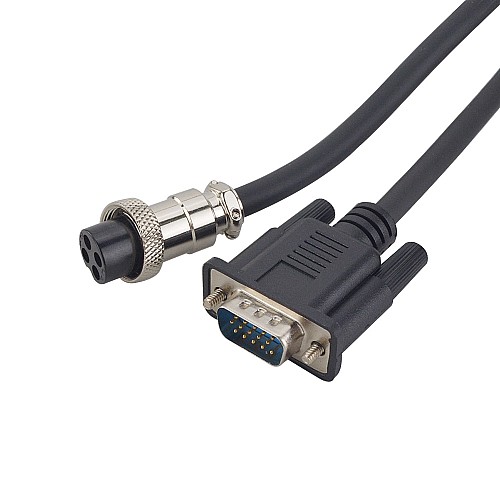

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Holding Torque(Ncm)	72
Inductance(mH)	4
Output Circuit Type	Differential
Output Signal Channels	2
Phase Resistance(ohms)	1.75
Rated Current(A)	2
Stepper Motor with	Encoder/Brake
Brake Specification
Brake Current(A)	0.16
Brake Power(W)	3.96
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	50
Brake Type	Power Off Brake
Response Time(ms)	50
Physical Specification
Body Length(mm)	60
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	24
