Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor

Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor - F6D250-48GU-30S/6GU50RC | StepperOnline CA
F6D250-48GU-30S/6GU50RC
Output Shaft TypeHollow
Rated Voltage(V)48
Gear Ratio(xx:1)50
Rated Speed(rpm)60
Question
Same series
ModelOutput Shaft TypeRated Voltage(V)Gear Ratio(xx:1)Rated Speed(rpm)PriceStock
F4D60-12GN-18S/4GN100RCHollow1210018C$77.40In stock
F4D60-12GN-18S/4GN100RTKeyway1210018C$77.40In stock
F4D60-12GN-18S/4GN10RCHollow1210180C$75.28In stock
F4D60-12GN-18S/4GN10RTKeyway1210180C$75.28In stock
F4D60-12GN-18S/4GN15RCHollow1215120C$75.28In stock
F4D60-12GN-18S/4GN15RTKeyway1215120C$75.28In stock
F4D60-12GN-18S/4GN180RCHollow1218010C$77.40In stock
F4D60-12GN-18S/4GN180RTKeyway1218010C$77.40In stock
F4D60-12GN-18S/4GN20RCHollow122090C$75.28In stock
F4D60-12GN-18S/4GN20RTKeyway122090C$75.28In stock
F4D60-12GN-18S/4GN30RCHollow123060C$75.28In stock
F4D60-12GN-18S/4GN30RTKeyway123060C$75.28In stock
F4D60-12GN-18S/4GN50RCHollow125036C$75.28In stock
F4D60-12GN-18S/4GN50RTKeyway125036C$75.28In stock
F4D60-12GN-30S/4GN100RCHollow1210030C$77.40In stock
F4D60-12GN-30S/4GN100RTKeyway1210030C$77.40In stock
F4D60-12GN-30S/4GN10RCHollow1210300C$75.28In stock
F4D60-12GN-30S/4GN10RTKeyway1210300C$75.28In stock
F4D60-12GN-30S/4GN10RT-SALEKeyway1210300C$76.49In stock
F4D60-12GN-30S/4GN15RCHollow1215200C$75.28In stock
F4D60-12GN-30S/4GN15RTKeyway1215200C$75.28In stock
F4D60-12GN-30S/4GN180RCHollow1218016.67C$77.40In stock
F4D60-12GN-30S/4GN180RTKeyway1218016.67C$77.40In stock
F4D60-12GN-30S/4GN20RCHollow1220150C$75.28In stock
F4D60-12GN-30S/4GN20RTKeyway1220150C$75.28In stock
F4D60-12GN-30S/4GN30RCHollow1230100C$75.28In stock
F4D60-12GN-30S/4GN30RTKeyway1230100C$75.28In stock
F4D60-12GN-30S/4GN50RCHollow125060C$75.28In stock
F4D60-12GN-30S/4GN50RTKeyway125060C$75.28In stock
F4D60-24GN-18S/4GN100RCHollow2410018C$77.40In stock
View all in category
Brushed 48V 250W 26.43Nm(3742.80oz.in) 60RPM w/ 50:1 Right Angle Gearbox DC Gear Motor
This is a 48V 250W DC gear motor with a flange of 104x104mm. The built-in 50:1 hollow shaft right ... Read More
0 reviews • Write a review
from
C$134.46
5 + C$130.85
10 + C$127.43
50 + C$124.18
100 + C$121.10

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 48V 250W DC gear motor with a flange of 104x104mm. The built-in 50:1 hollow shaft right angle Gearbox brings speed and torque to 60rpm and 26.43Nm(3742.80oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction make this motor widely used in household appliances, automotive designs, consumer appliances and other fields.

Electrical Specifications

  • P/N: F6D250-48GU-30S/6GU50RC
  • Output Power: 250W
  • Voltage: 48V
  • Rated Speed: 60rpm
  • Rated Torque: 26.43Nm(3742.80oz.in)
  • Brush Service Life: 2000h

Physical Specifications

  • Frame Size: 104x104mm
  • Body Length Includes Gearbox: 324mm
  • Gearbox Type: Right Angle Gearbox
  • Gear Ratio: 50:1
  • Shaft Type: Hollow
  • Bore Diameter: Φ22mm
Electrical Specification
Motor Type Brushed DC Motor
Rated Speed(rpm) 60
Rated Torque(Nm) 26.43
Rated Torque(oz.in) 3742.8
Rated Voltage(V) 48
Physical Specification
Gear Ratio(xx:1) 50
Gearbox Shape Square
Gearbox Type Right Angle Gearbox
Output Shaft Type Hollow

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview

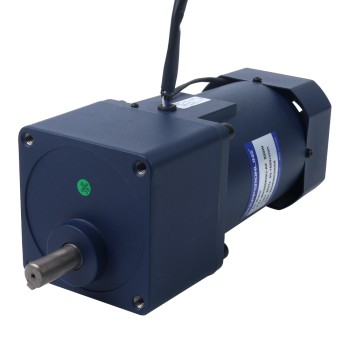

200W 220VAC 50Hz 6-90RPM 14.01Nm(1983.98oz.in) Flange 104mm Spur Gearbox Single-phase AC Variable Speed Motor
200W 220VAC 50Hz 6-90RPM 14.01Nm(1983.98oz.in) Flange 104mm Spur Gearbox Single-phase AC Variable Speed Motor
This 104x104mm single-phase AC motor with adjustable speed control is operated with 220VAC. It has a speed range of 6-90rpm and a gearbox with a gear ..
from
C$114.91
Add to Cart
Add to Wish List Compare this Product
Quickview
200W Single Phase 220VAC Motor Speed Controller for Variable Speed Motor
200W Single Phase 220VAC Motor Speed Controller for Variable Speed Motor
This motor speed controller comes with a voltage of single-phase 220VAC and is suitable for 200W variable speed motors. It features advanced PID contr..
from
C$14.73
Add to Cart
Add to Wish List Compare this Product
Quickview
Brushless DC Motor Controller DBLC-01
Brushless DC Motor Controller DBLC-01
Function of control box 1. Display speed. It can display the real time rotation speed of the motor. 2. Start/Stop button on the panel to control the..
from
C$16.95
Add to Cart
Add to Wish List Compare this Product
Quickview
250W 12-48VDC 15A Motor Speed Controller for Variable Speed Motor
250W 12-48VDC 15A Motor Speed Controller for Variable Speed Motor
This motor speed controller comes with a voltage of 12-48VDC and is suitable for 250W variable speed motors. It also can achieve two-way speed regulat..
from
C$22.26
Add to Cart
Add to Wish List Compare this Product
Quickview
1 Axis Stepper CNC Kit 3.0Nm(425oz.in) Nema 23 Stepper Motor & Driver & Power Supply
1 Axis Stepper CNC Kit 3.0Nm(425oz.in) Nema 23 Stepper Motor & Driver & Power Supply
This CNC kit included: 1 x DM542T: Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor 1 x 23HS45-4204S: Nema 23 Bipolar 3N..
from
C$73.44
Add to Cart
Add to Wish List Compare this Product
Quickview
Stepper Controller 5-30VDC for Single Axis Stepper Motor
Stepper Controller 5-30VDC for Single Axis Stepper Motor
This small stepper motor controller is used for single-axis stepper motors. It has an operating voltage range of 5-30VDC, a wide adjustable speed rang..
from
C$26.67
Add to Cart
Add to Wish List Compare this Product
Quickview
Stepper Driver & Controller 10-30VDC 0-4A for Single-Axis Nema 6, 8, 11, 14, 17 Stepper Motor
Stepper Driver & Controller 10-30VDC 0-4A for Single-Axis Nema 6, 8, 11, 14, 17 Stepper Motor
This compact integrated stepper motor driver and controller is designed for single-axis stepper motors, featuring a wide operating voltage range of 10..
from
C$34.90
Add to Cart
Add to Wish List Compare this Product
Quickview

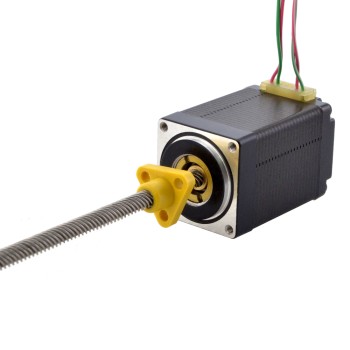

CN On Sale - NEMA 11 External Acme Linear Stepper Motor 1.0A 46mm Stack Screw Lead 10.16mm(0.4") Lead Length 150mm
