Stepper Controller 5-30VDC for Single Axis Stepper Motor

0 reviews - Write a review

C$27.22

5 + C$25.93

10 + C$24.78

50 + C$23.71

100 + C$22.73

In Stock: 10000
Model: ST-C01
Gross Weight: 0.29kg
Certificated: ISO, CE

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

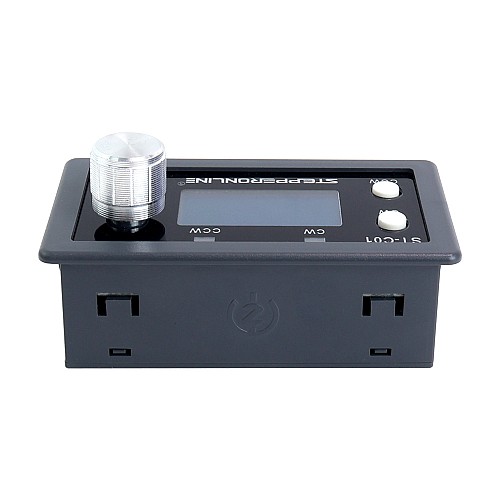

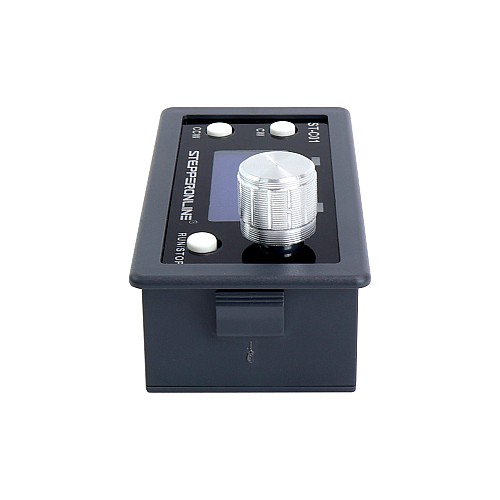

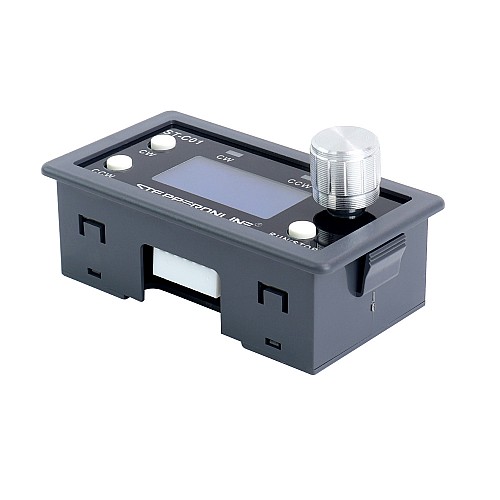

This small stepper motor controller is used for single-axis stepper motors. It has an operating voltage range of 5-30VDC, a wide adjustable speed range, and various built-in fixed operating modes.
Users can select from these modes and set distance, speed, delay, and quantity of motion. The controller programming is simple due to clear logic and supports power-off saving.
While widely used in general industrial control, it is not recommended for medical, fire, and other critical applications.

Model: ST-C01
Adaptive Motor: Stepper motor
Number of Control Axis: Single sxis
Motor Signal: Common cathode
Output Signal Voltage: 5V

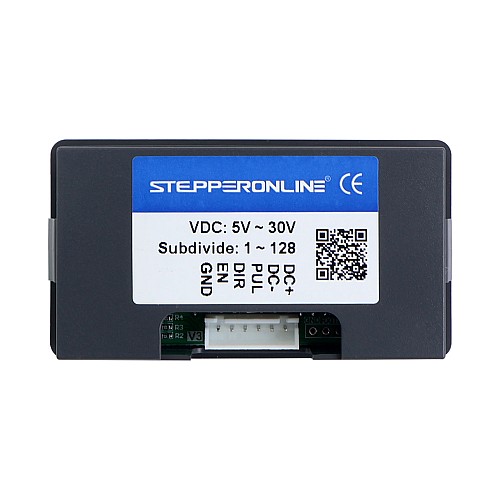

Power Supply Range: DC 5-30V general
Subdivision Selection Range: 1-128 subdivision
Working environment: -5℃-60℃(no condensation)
Remote communication control: TTL serial port
Support acceleration and deceleration control
Support automation, manual, setting and serial port control

This controller only has common cathode output. Therefore, it cannot be adapted to the drivers that only support common anode control (such as DM320T/DM332T/DM422T/DM420Y).

Product Type
Product Type	Controller
Electrical Specification
Analog Input	No
Control Modes	Pulse Mode
Encoder Feedback	No (Open Loop)
Input Voltage Reference(V)	12 - 24DC
No. of Axis	1
No. of Phase	2
Output Signal Voltage(V)	5
Power Supply Range	5 - 30DC
Physical Specification
Environment	- 5 ℃ - 60 ℃ (no condensation)
Forward Rotation Delay Time	0.0-999.9 seconds
Input Reverse Connection Protection	Yes
Installation Type	Split
Integrated with Driver	No
Inventory Method	Dedicated Inventory
Main Functions of the System	Automatic, Manual, Setting and Serial port control
Motor Signal	Common Cathode
Number of Cycles	1-9999
Number of Forward Rotation Pulses	1-9999999 pulses
Number of Reverse Pulses	1-9999999 pulses
Remote Communication Control	TTL Serial Port
Reverse Delay Time	0.0-999.9 seconds
Subdivision Selection Range	1-128 subdivision
