CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox

CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox - CN-SGA37-33123000-G90 | StepperOnline CA
CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox - CN-SGA37-33123000-G90 | StepperOnline CA
CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox - CN-SGA37-33123000-G90 | StepperOnline CA
CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox - CN-SGA37-33123000-G90 | StepperOnline CA
CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox - CN-SGA37-33123000-G90 | StepperOnline CA
CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox - CN-SGA37-33123000-G90 | StepperOnline CA
CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox - CN-SGA37-33123000-G90 | StepperOnline CA
CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox - CN-SGA37-33123000-G90 | StepperOnline CA
CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox - CN-SGA37-33123000-G90 | StepperOnline CA
CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox - CN-SGA37-33123000-G90 | StepperOnline CA
SGA37-33123000-G90-SALE
Shaft Diameter(mm)6
Shaft Length(mm)17
Rated Voltage(V)12
Rated Current(A)0.14
Question

Downloads

SGA37-33123000-G90_Full_Datasheet.pdfPDF · 138.23KB
Same series
ModelShaft Diameter(mm)Shaft Length(mm)Rated Voltage(V)Rated Current(A)PriceStock
SGA37-33123000-G90617120.14C$6.79In stock
SGA37-33123000-G90-SALE617120.14C$4.74In stock
SGA37-33126000-G60615.5120.6C$6.79In stock
SGB37-33123000-G540615.5120.24C$9.50In stock
SGC37-32125000-G90615.5120.6C$10.16In stock
SGC37-32125000-G90-SALE615.5120.6C$7.12In stock
SGD37-33124500-G60615.5120.6C$10.16Backorder
SGE27-27063800-G18741160.22C$6.10Backorder
SGE37-28246000-G180615.5240.9C$8.47In stock
SGE37-36123000-G540615.5120.93C$10.85Backorder
SGF32-32127000-G72615120.6C$10.16Backorder
SGF37-32127000-G128615.5121C$16.95In stock
CN On Sale - Brushed 12V DC Gear Motor 2Kg.cm/24RPM 90:1 Spur Gearbox
This is a standard 12volt brushed DC gear motor, generating 2kg.cm of torque at 24rpm. It's a small,... Read More
0 reviews • Write a review
from Save -30%
C$4.74
C$6.79

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

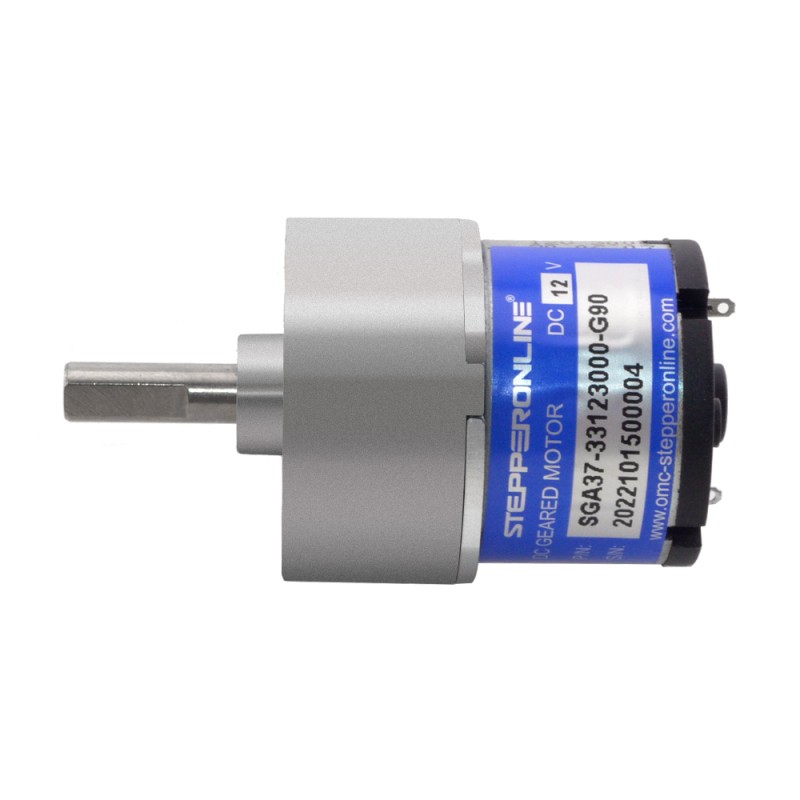

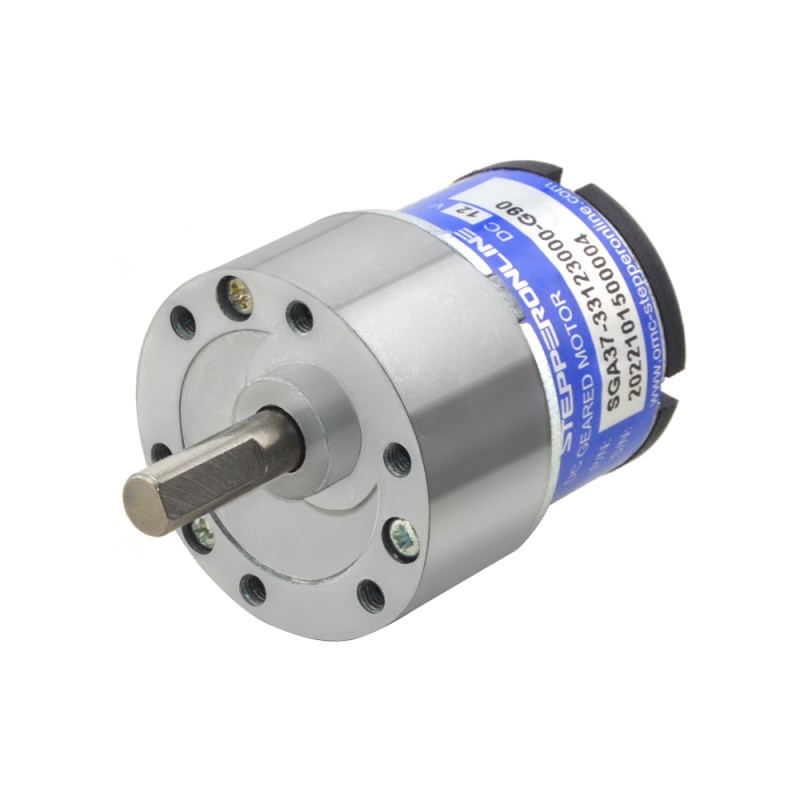

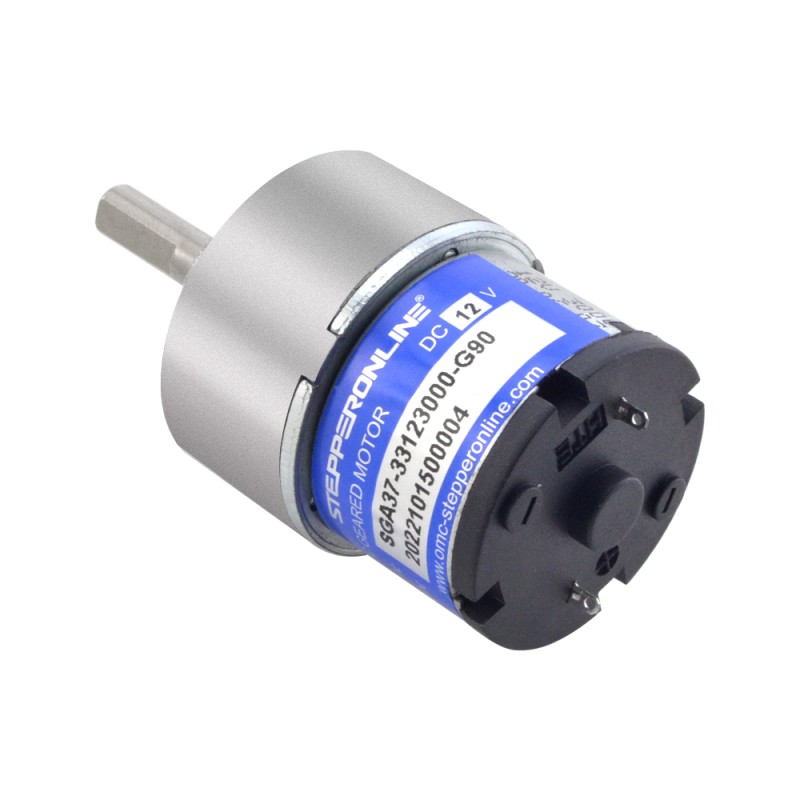

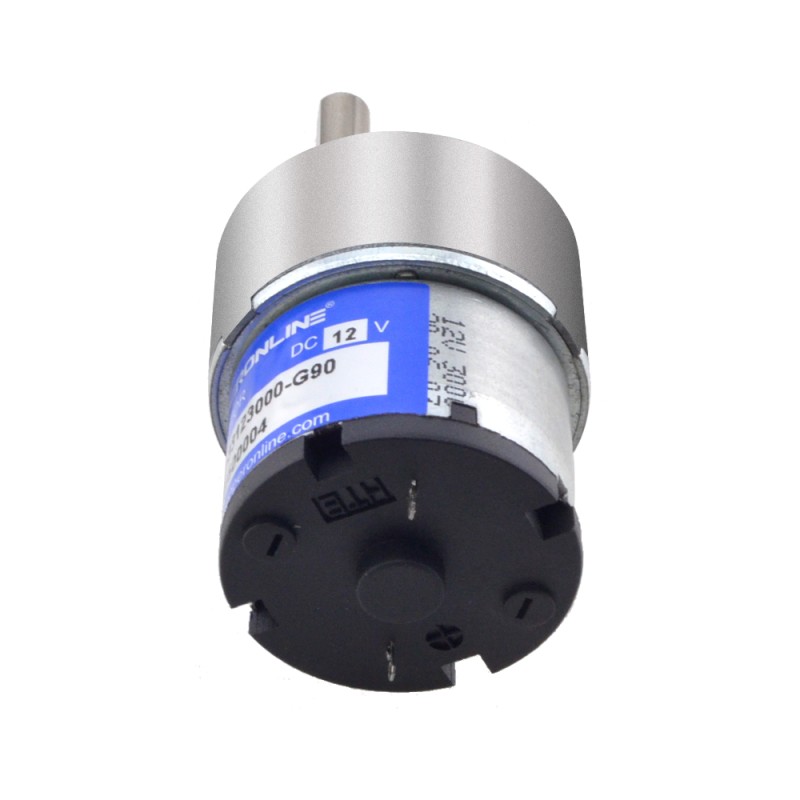

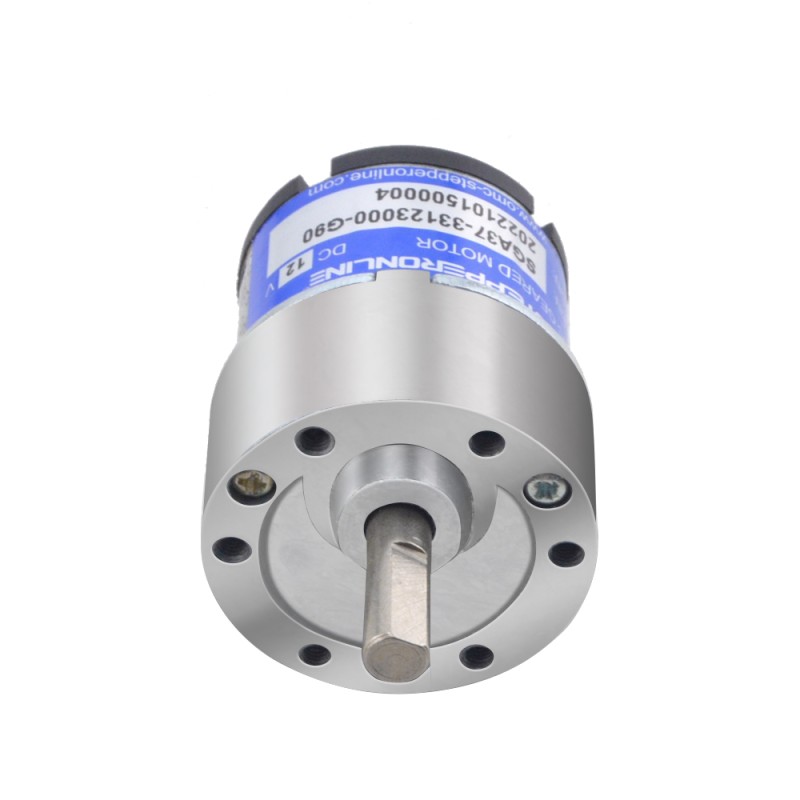

This is a standard 12volt brushed DC gear motor, generating 2kg.cm of torque at 24rpm. It's a small, inexpensive motor suitable for low torque, high speed applications. Combined with a 90 : 1 spur gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.

Electrical Specification

  • Part Number: SGA37-33123000-G90
  • Rated Voltage: 12V
  • Rated Torque: 2kg.cm(27.66oz.in)
  • Rated Current: <=140mA
  • Rated Speed: 24rpm
  • No-load Current: <=30mA
  • No-load Speed: 33rpm
  • Rotation Direction: CW/CCW
  • Motor Type: Brushed DC Motor

Gearbox Specification

  • Gearbox Type: Spur Gearbox
  • Gear Ratio: 90 : 1

Physical Specification

  • Motor Size: Φ33 x 22.4mm
  • Gearbox Size: Φ37 x 19.4mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 17mm
  • D-cut Length: 12mm
Electrical Specification
Motor Type Brushed DC Motor
Rated Current(A) 0.14
Rated Speed(rpm) 24
Rated Torque(kg.cm) 2
Rated Torque(oz.in) 27.66
Rated Voltage(V) 12
Physical Specification
Gear Ratio(xx:1) 90
Gearbox Shape Round
Gearbox Type Spur Gearbox
Output Shaft Type D
Shaft Diameter(mm) 6
Shaft Length(mm) 17

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Brushed 12V DC Gear Motor 3.8Kg.cm/24.5RPM w/ 428.6:1 Planetary Gearbox
Brushed 12V DC Gear Motor 3.8Kg.cm/24.5RPM w/ 428.6:1 Planetary Gearbox
This is a standard 12 volt brushed DC gear motor, generating 3.8kg.cm of torque at 24.5rpm. It's a small, inexpensive motor suitable for low torque, h..
from
C$0.00
Add to Cart
Add to Wish List Compare this Product
Quickview
Brushed 24V DC Gear Motor 15Kg.cm/33RPM w/ 99.5:1 Planetary Gearbox
Brushed 24V DC Gear Motor 15Kg.cm/33RPM w/ 99.5:1 Planetary Gearbox
This is a standard 24 volt brushed DC gear motor, generating 15kg.cm of torque at 33rpm. It's a small, inexpensive motor suitable for low torque, high..
from
C$0.00
Add to Cart
Add to Wish List Compare this Product
Quickview

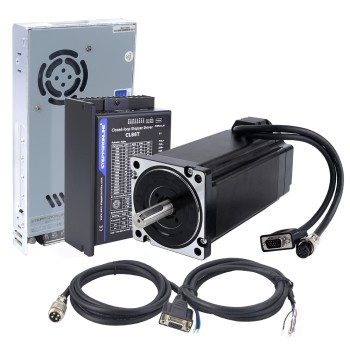

TS Series 1 Axis 12.0Nm(1699.34oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
TS Series 1 Axis 12.0Nm(1699.34oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
Items in Kit 1 x 34HS59-6004D-E1000: 12.0Nm Closed loop stepper motor 1 x CL86T-V41: Closed Loop Stepper Driver V4.1 0~8.0A 18~80VAC/24~110VDC&nbs..
from
C$163.72
Add to Cart
Add to Wish List Compare this Product
Quickview
20:1 Worm Gearbox NMRVS40 Worm Gear Speed Reducer 14mm Input Shaft Diameter
20:1 Worm Gearbox NMRVS40 Worm Gear Speed Reducer 14mm Input Shaft Diameter
The size of this gearbox is 86mmx86mm and the input shaft diameter is 14mm. This worm gearbox is designed for Nema 34 Stepper Motor or other 86mmx86..
from
C$60.68
Add to Cart
Add to Wish List Compare this Product
Quickview

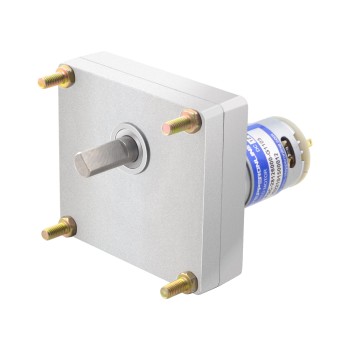

Brushed 12V DC Gear Motor 50Kg.cm/4.1RPM w/ 1105:1 Rectangular Spur Gearbox
Brushed 12V DC Gear Motor 50Kg.cm/4.1RPM w/ 1105:1 Rectangular Spur Gearbox
This is a standard 12 volt brushed DC gear motor, generating 50kg.cm of torque at 4.1rpm. It's a small, inexpensive motor suitable for low torque, hig..
from
C$15.25
Add to Cart
Add to Wish List Compare this Product
Quickview
Single Output Shaft for NMRV40 Worm Gear Speed Reducer
Single Output Shaft for NMRV40 Worm Gear Speed Reducer
This is single output shaft for NMRV40 Worm Gear Speed Reducer, the output shaft diameter is 18mm with 6mm keyway and M6 screw holes on the end. ..
from
C$5.67
Add to Cart
Add to Wish List Compare this Product
Quickview

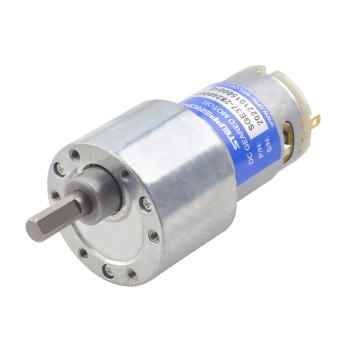

Brushed 24V DC Gear Motor 8.5Kg.cm/25RPM 180:1 Spur Gearbox
Brushed 24V DC Gear Motor 8.5Kg.cm/25RPM 180:1 Spur Gearbox
This is a standard 24 volt brushed DC gear motor, generating 8.5kg.cm of torque at 25rpm. It's a small, inexpensive motor suitable for low torque, hig..
from
C$8.47
Add to Cart
Add to Wish List Compare this Product
Quickview

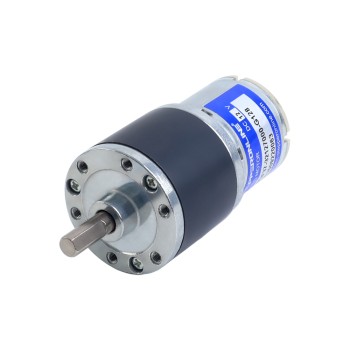

Brushed 12V DC Gear Motor 6Kg.cm/40RPM 128:1 Spur Gearbox
