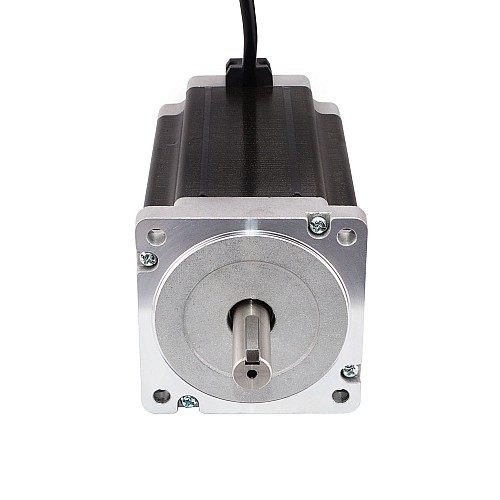

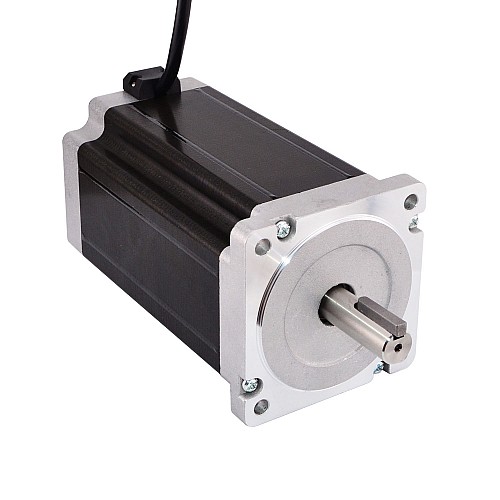

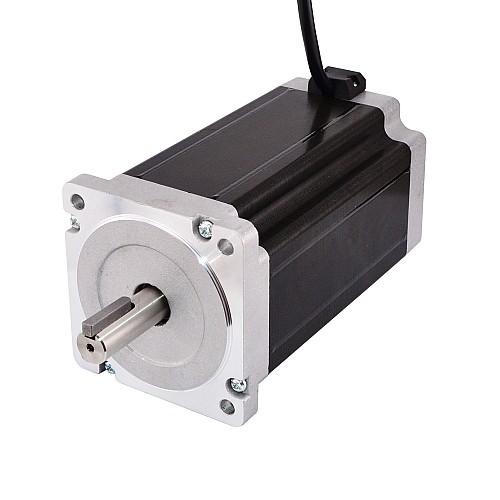

Keyway Dual Shaft Nema 34 Stepper Motor 13Nm(1841oz.in) 5A 86x86x150mm

3 reviews - Write a review

€77.89

5 + €75.23

10 + €72.75

50 + €70.41

100 + €68.24

In Stock: Pre-order
Model: 34HS59-5004D
Gross Weight: 5.60kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 575

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

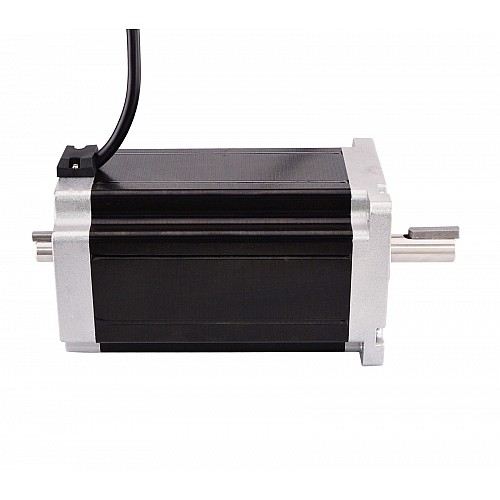

This is a dual-shaft motor with a 15mm long rear shaft and holding torque of 13Nm(1841oz.in), and the shaft diameter is 12mm. Threaded holes are available on the rear end cap which can be used to brakes, encoder for hand wheels.

Electrical Specification

Manufacturer Part Number: 34HS59-5004D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 13Nm(1841oz.in)
Rated Current/phase: 5A
Phase Resistance: 1ohms
Inductance: 11mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 151.5mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Key-Way Length: 25mm
Rear Shaft Length: 15mm
Rear Shaft Diameter: 12mm
Number of Leads: 4
Lead Length: 500mm

Connection

A+	A-	B+	B-
Red	Black	Yellow	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1300
Holding Torque(oz.in)	1841
Inductance(mH)	11
Phase Resistance(ohms)	1
Rated Current(A)	5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	151.5
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	5450
