E6 Series 200W AC Servo Motor Kit 3000rpm 0.64Nm 17-Bit Encoder IP65

Discontinued

E6 Series 200W AC Servo Motor Kit 3000rpm 0.64Nm 17-Bit Encoder IP65

1 reviews - Write a review

C$0.00

In Stock: 1
Model: E6-RS200H2A2-M17S
Gross Weight: 3.05kg
Certificated: ISO, CE

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

The E6 series 200W 3000rpm 0.64Nm servo system is the latest cost-effective servo system. The power ranges from 200W to 1000W. It has the advantages of convenient wiring. It is the best choice for applications that require cost and performance.

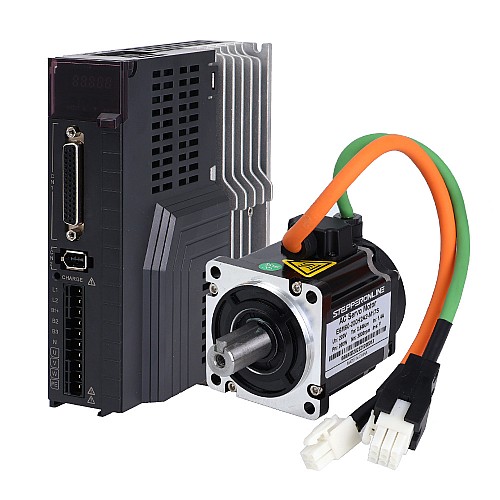

Items in kit

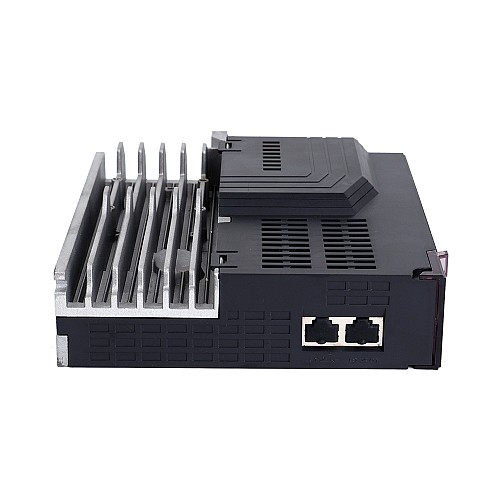

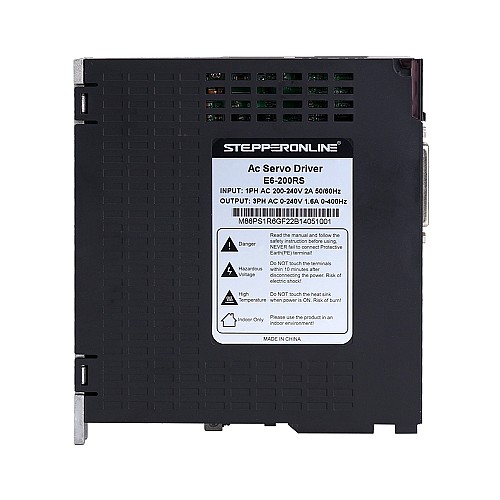

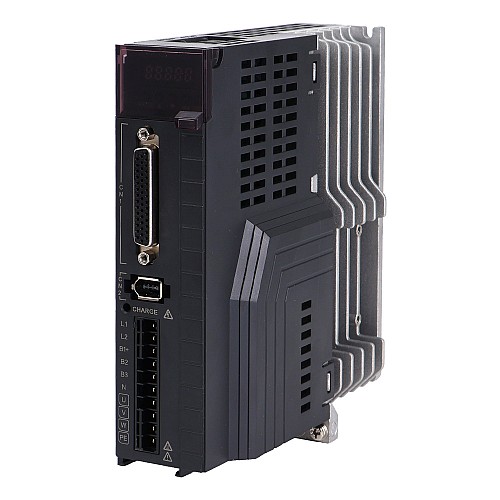

1 x E6-200RS: 200W AC Servo Motor Driver

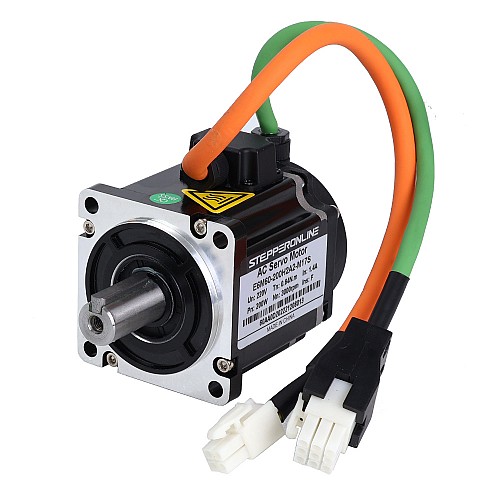

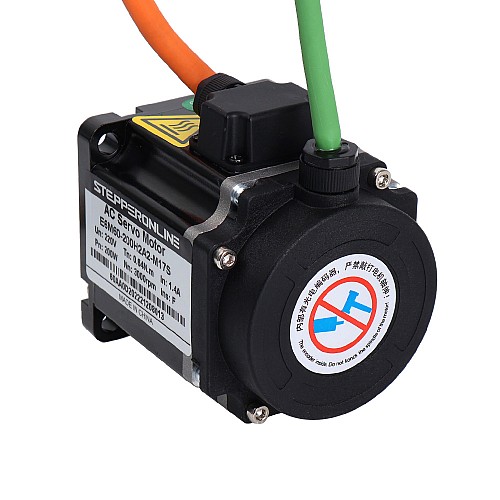

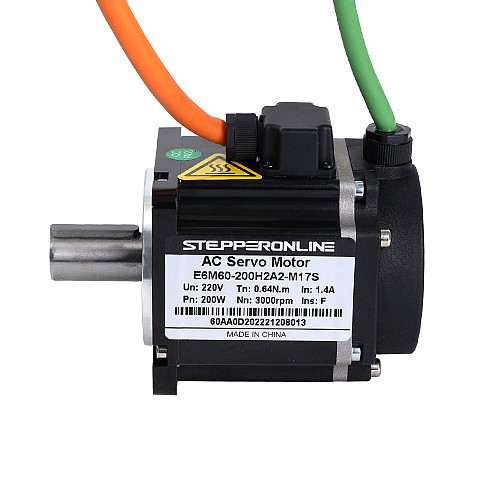

1 x E6M60-200H2A2-M17S: 200W AC Servo Motor 3000rpm 0.64Nm 17-Bit Encoder IP65
1 x CMOL3M: 3.0m Motor Extension Cable with IP65 AMP Connector
1 x CEOL3M: 3.0m Encoder Extension Cable with IP65 AMP Connector

Servo Driver Specification

Part Number: E6-200RS
Rated Output Current: 2.8A
RS232, RS485, Modbus communication
Support pulse control
Encoder signals A/B/Z differential output and Z OC output
2 inputs and 4 outputs
Rated voltage 220VAC 1ph
Rated power 200W
17-bit magnetic incremental
Automatic motor identification
Dimension: 154*171*51mm

Servo Motor Specification

Part Number: E6M60-200H2A2-M17S
Rated Voltage: 220VAC
Rated Power: 200W
Rated Torque: 0.64Nm
Peak Torque: 1.92Nm
Rated Speed: 3000rpm
Peak Speed: 6500rpm
Rated Current: 1.4A
Peak Current: 6.2A
Torque Const: 0.5N.m/A
Resistance: 3.34ohms
Inductance: 0.56mH
Inertia: 0.29kg*m²*10^-4
Poles: 5
Encoder Type: 17bit incremental, magnetic encoder
IP Rating: IP65
Frame Size: 60 x 60mm
Body Length: 72.5mm
Shaft Length: 30mm
Shaft Diameter: 14mm
Key Length: 25mm
Mass Weight: 0.9Kg

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is A6-RS400H2A1-M17.

Electrical Specification
Control Modes	Pulse and RS485
Encoder Resolution	17bit
Encoder Type	Magnetic Incremental
Input Voltage(V)	220VAC
Peak Speed(rpm)	6500
Peak Torque(Nm)	1.92
Rated Power(W)	200
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.64
With Brake	No
Physical Specification
Aviation Plug or Not	No
Frame Size(mm)	60 x 60
Integrated or Not	No
Inventory Method	Shared Inventory
IP Rating	65
Shaft Diameter(mm)	14

File	Size
E6_Servo_Easy_Manual.pdf	1.47MB	Download
E6M60-200H2A2-M17S.STEP	9.49MB	Download
E6M60-200H2A2-M17S_Full_Datasheet.pdf	159.85KB	Download
E6_Series_Full_User_Manual.pdf	24.26MB	Download
