We've upgraded our website — we'd love to hear how we can make it even better. Share feedback
Cart0 item(s) - C$0.00 0

  • Your shopping cart is empty!

0

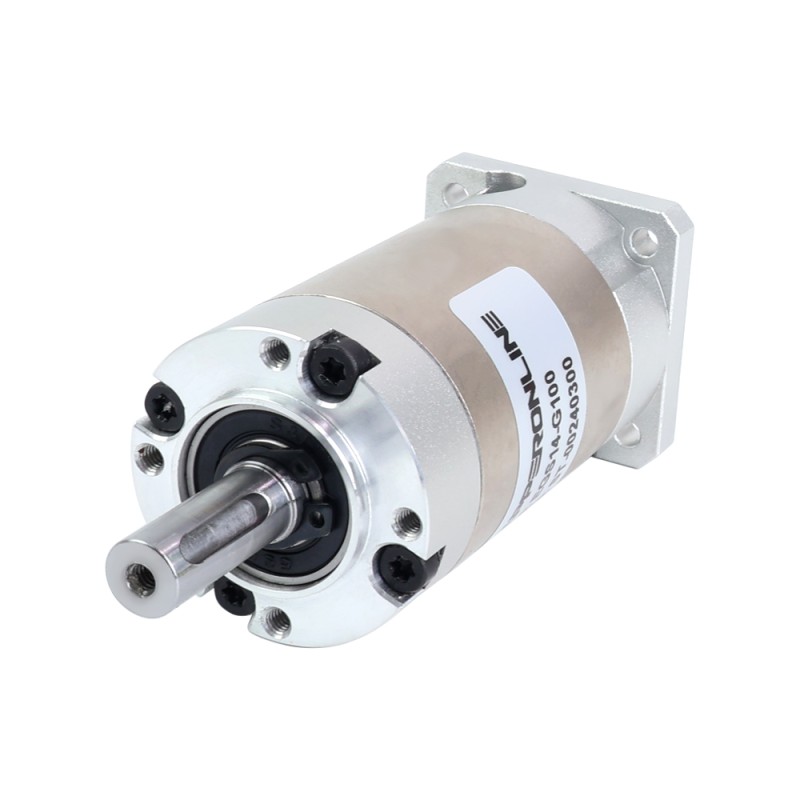

EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor

EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor - EGS14-G100 | StepperOnline CA
EGS14-G100
Output Shaft TypeKeyway
Frame Size(mm)35 x 35
Gear Ratio(xx:1)100
Backlash at No-load<=25 arcmin
Question

Downloads

EGS14-G100_Full_Datasheet.pdfPDF · 133.85KBEGS14-G100.STEPSTEP · 1.71MBLog in to download
Same series
ModelOutput Shaft TypeFrame Size(mm)Gear Ratio(xx:1)Backlash at No-loadPriceStock
EG17-G10Keyway42 x 4210<=15 arcminC$42.43In stock
EG17-G100Keyway42 x 42100<=20 arcminC$52.72In stock
EG17-G20Keyway42 x 4220<=20 arcminC$52.72In stock
EG17-G5Keyway42 x 425<=15 arcminC$42.43In stock
EG17-G50Keyway42 x 4250<=20 arcminC$52.72In stock
EG17-G7Keyway42 x 427<=15 arcminC$42.01In stock
EG23-G10-D10Keyway60 x 6010<=15 arcminC$49.43In stock
EG23-G10-D6Keyway60 x 6010<=15 arcminC$49.43In stock
EG23-G10-D8Keyway60 x 6010<=15 arcminC$49.43In stock
EG23-G20-D10Keyway60 x 6020<=20 arcminC$67.96In stock
EG23-G20-D6Keyway60 x 6020<=20 arcminC$67.96In stock
EG23-G20-D6-USEDKeyway60 x 6020<=20 arcminC$40.77In stock
EG23-G20-D8Keyway60 x 6020<=20 arcminC$67.96In stock
EG23-G5-D10Keyway60 x 605<=15 arcminC$49.43In stock
EG23-G5-D6Keyway60 x 605<=15 arcminC$49.43In stock
EG23-G5-D8Keyway60 x 605<=15 arcminC$49.43In stock
EG23-G50-D10Keyway60 x 6050<=20 arcminC$67.96In stock
EG23-G50-D10-USEDKeyway60 x 6050<=20 arcminC$71.89In stock
EG23-G50-D6Keyway60 x 6050<=20 arcminC$67.96In stock
EG23-G50-D6-USEDKeyway60 x 6050<=20 arcminC$33.97In stock
EG23-G50-D6-USEDKeyway60 x 6050<=20 arcminC$47.97In stock
EG23-G50-D8Keyway60 x 6050<=20 arcminC$67.96In stock
EG24-G10Keyway60 x 6010<=15 arcminC$49.43In stock
EG24-G20Keyway60 x 6020<=20 arcminC$67.96In stock
EG24-G5Keyway60 x 605<=15 arcminC$49.43In stock
EG24-G50Keyway60 x 6050<=20 arcminC$74.14Backorder
EG34-G10Keyway90 x 9010<=10 arcminC$86.49In stock
EG34-G10-D13Keyway90 x 9010<=10 arcminC$90.61In stock
EG34-G10-USEDKeyway90 x 9010<=15 arcminC$69.19In stock
EG34-G20Keyway90 x 9020<=15 arcminC$123.55In stock
View all in category
EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 25arc-min for Nema 14 Stepper Motor
The size of this gearbox is 35 x 35mm and the input shaft diameter is 5mm. This high-precision plane... Read More
0 reviews • Write a review
from
C$55.61
5 + C$53.32
10 + C$51.20
50 + C$49.24
100 + C$47.44

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

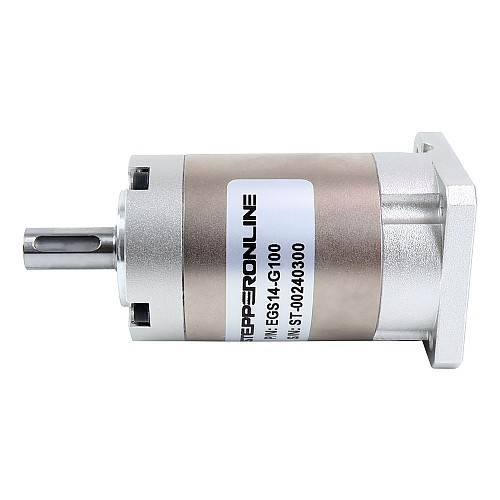

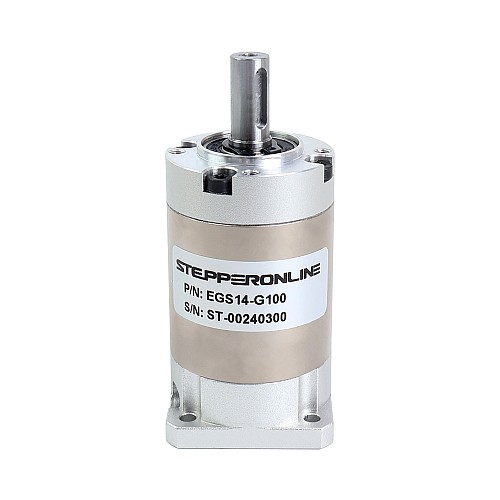

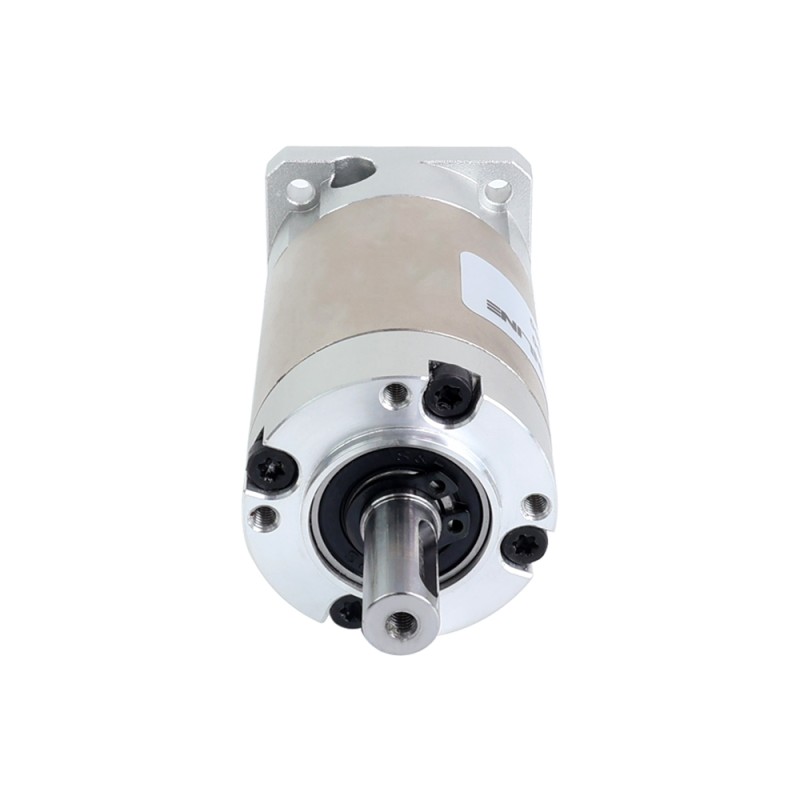

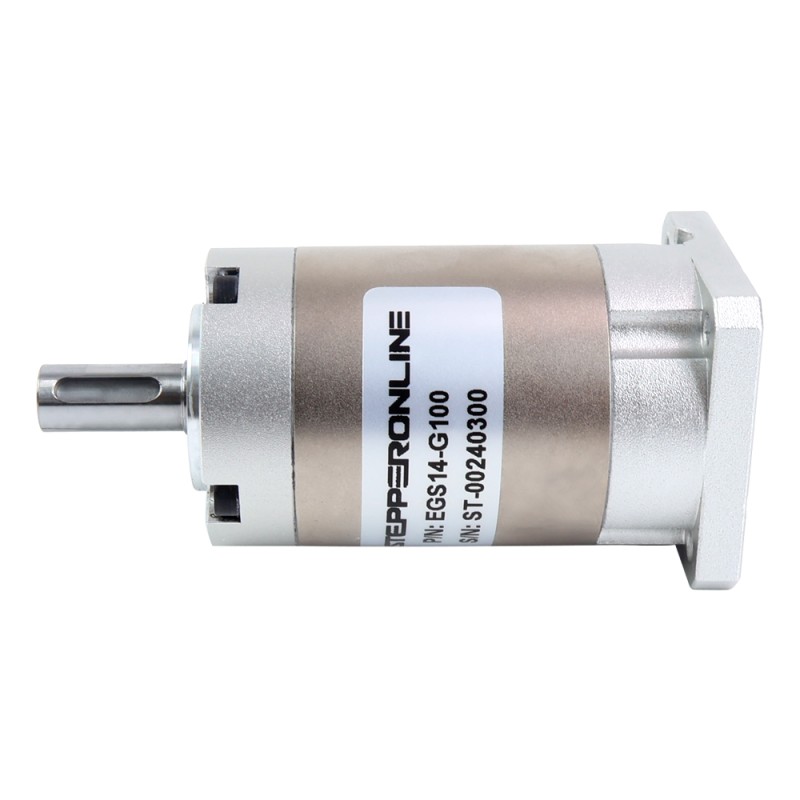

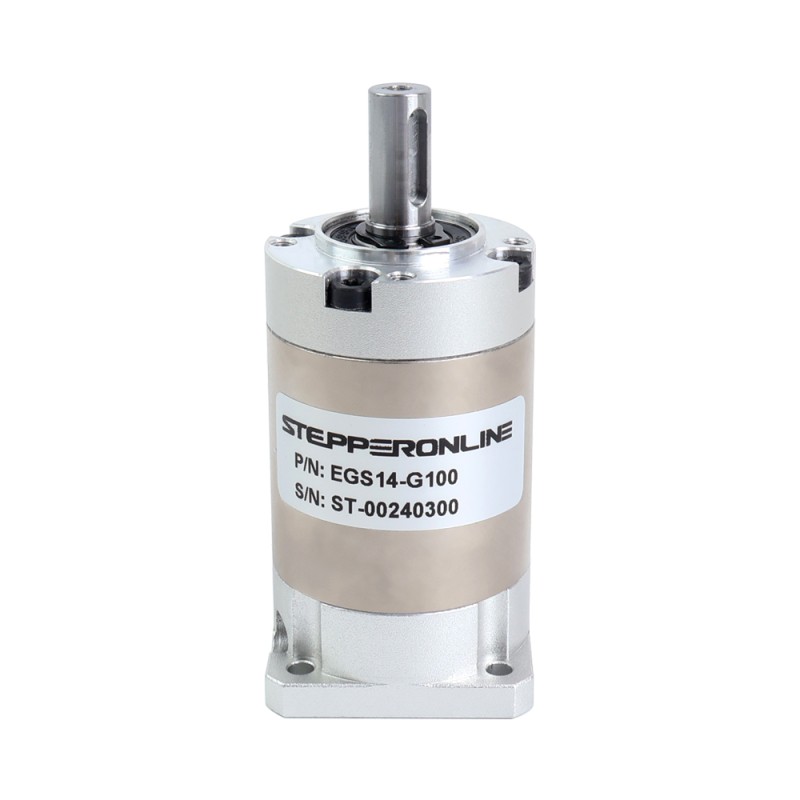

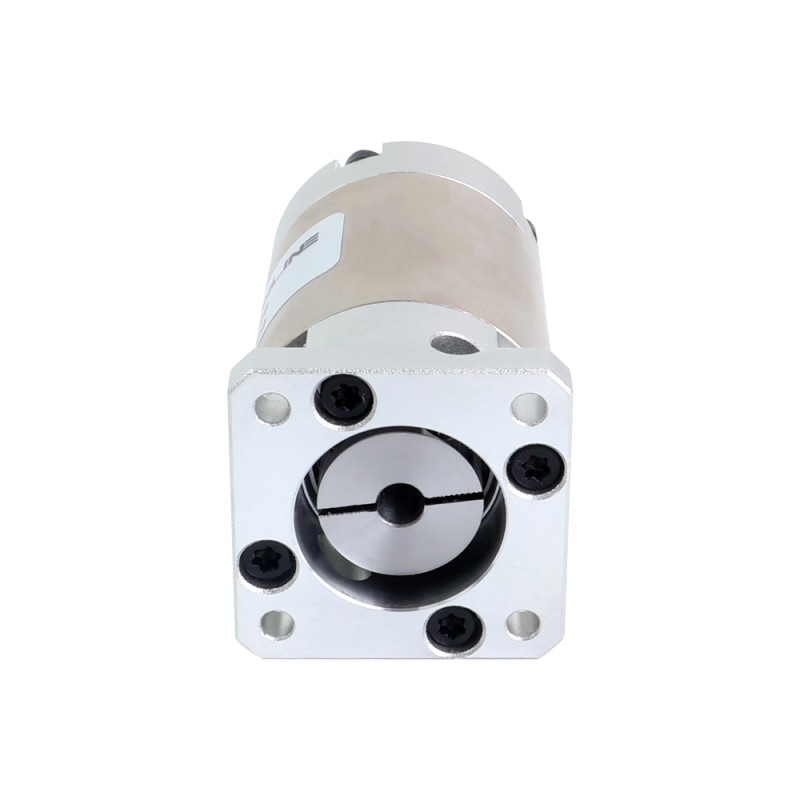

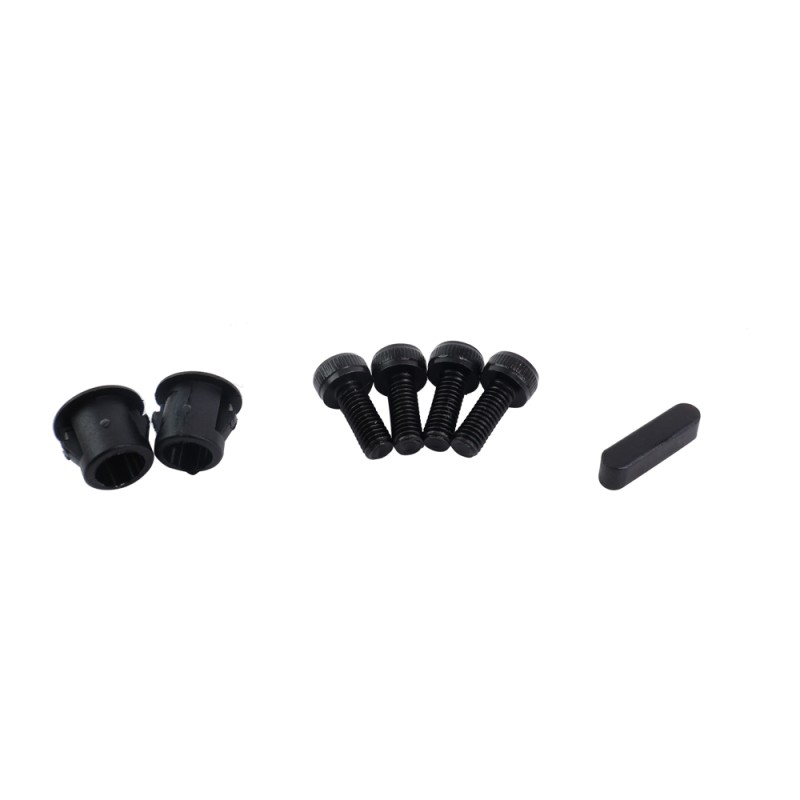

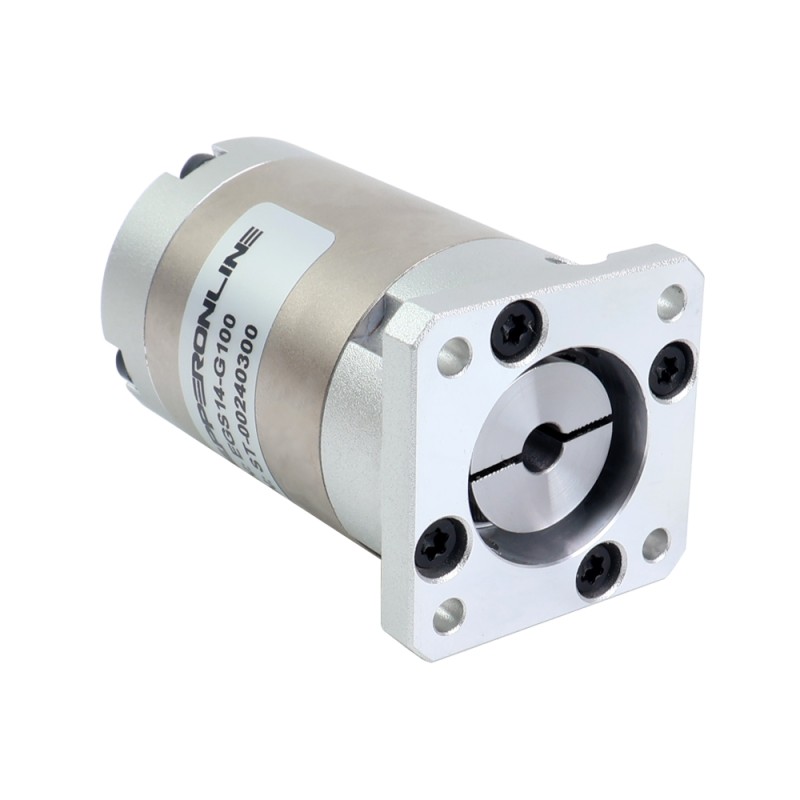

The size of this gearbox is 35 x 35mm and the input shaft diameter is 5mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 100:1 and a maximum 25arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value.

Gearbox Specifications

  • Part Number: EGS14-G100
  • Gearbox Type: Spur Planetary
  • Gear Material: Alloy Steel
  • Gear Ratio: 100:1
  • Efficiency: 90%
  • Backlash at No-load: <=25arcmin
  • Max.Permissible Torque: 9Nm(79.66lb-in)
  • Moment Permissible Torque: 18Nm(159.32lb-in)
  • Noise: <=55dB(1000rpm)
  • Waterproof Rating: IP54
  • Lifetime: 20000hours

Physical Specifications

  • Frame Size: 35 x 35mm
  • Gearbox Length: 59mm
  • Output Shaft Type: KeyWay
  • Output Shaft Diameter: Φ8mm
  • Output Shaft Length: 20mm
  • Input Shaft Diameter: Φ5mm
  • Input Shaft Length: 6.5-10mm
Physical Specification
Backlash at No-load <=25 arcmin
Frame Size(mm) 35 x 35
Gear Material Alloy Steel
Gear Ratio(xx:1) 100
Gearbox Length(mm) 59
Gearbox Type Spur Planetary
Input Shaft Diameter(mm) 5
Input Shaft Length(mm) 6.5 - 10
IP Rating 54
Matching Motor Size Nema 14 Stepper Motor
Output Shaft Diameter(mm) 8
Output Shaft Length(mm) 20
Output Shaft Type Keyway
Product Series EG

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

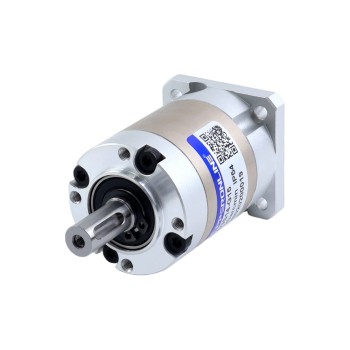

EG Series Planetary Gearbox Gear Ratio 15:1 Backlash 20arc-min for Nema 14 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 15:1 Backlash 20arc-min for Nema 14 Stepper Motor
This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 15:1 and a maximum 20arc-min backlash. It's an excellent choi..
from
C$55.61
Add to Cart
Add to Wish List Compare this Product
Quickview

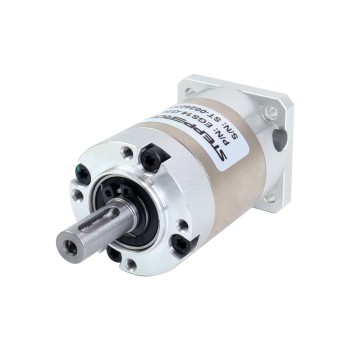

EG Series Planetary Gearbox Gear Ratio 20:1 Backlash 20arc-min for Nema 14 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 20:1 Backlash 20arc-min for Nema 14 Stepper Motor
The size of this gearbox is 35 x 35mm and the input shaft diameter is 5mm. This high-precision planetary gearbox is belong to EG series gearbox, it wi..
from
C$55.61
Add to Cart
Add to Wish List Compare this Product
Quickview

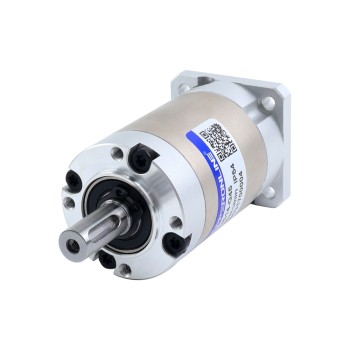

EG Series Planetary Gearbox Gear Ratio 45:1 Backlash 25arc-min for Nema 14 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 45:1 Backlash 25arc-min for Nema 14 Stepper Motor
This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 45:1 and a maximum 25arc-min backlash. It's an excellent choi..
from
C$55.59
Add to Cart
Add to Wish List Compare this Product
Quickview

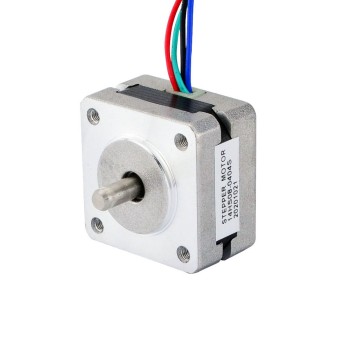

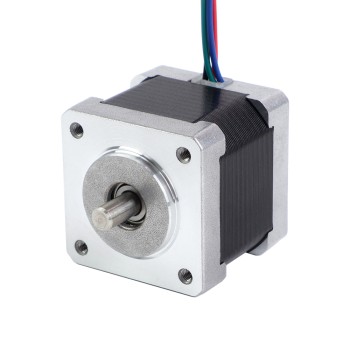

Nema 14 Bipolar 1.8deg 18Ncm(25.49oz.in) 1.0A 35x35x34mm 4 Wires
Nema 14 Bipolar 1.8deg 18Ncm(25.49oz.in) 1.0A 35x35x34mm 4 Wires
This is a 2-phase Nema 14 stepper motor with a 1.8° step angle. Each phase draws 1.0A and allows for holing torque of 18Ncm (25.49oz.in). It has a sho..
from
C$13.12
Add to Cart
Add to Wish List Compare this Product
Quickview
EG Series Planetary Gearbox Gear Ratio 5:1 Backlash 15arc-min for Nema 14 Stepper Motor
EG Series Planetary Gearbox Gear Ratio 5:1 Backlash 15arc-min for Nema 14 Stepper Motor
This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 5:1 and a maximum 15arc-min backlash. It's an excellent choic..
from
C$41.19
Add to Cart
Add to Wish List Compare this Product
Enter your email address below and we will notify you as soon as this item is back in stock.
Name
Email
Comments
