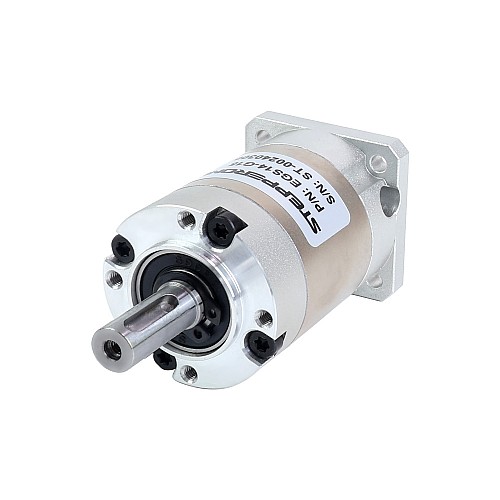

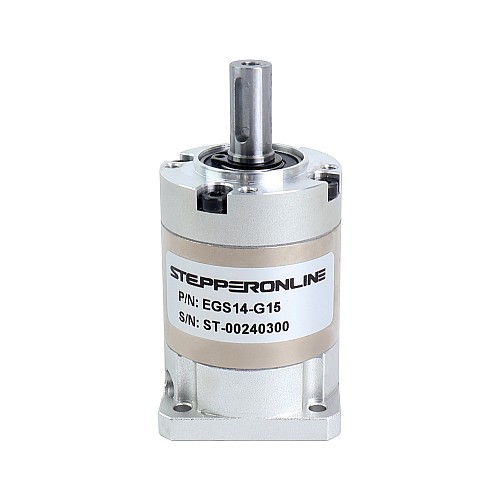

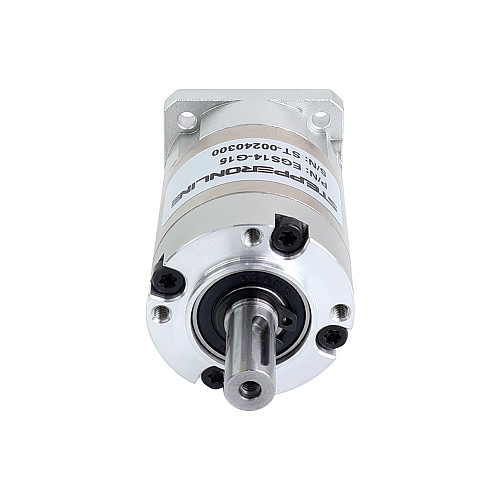

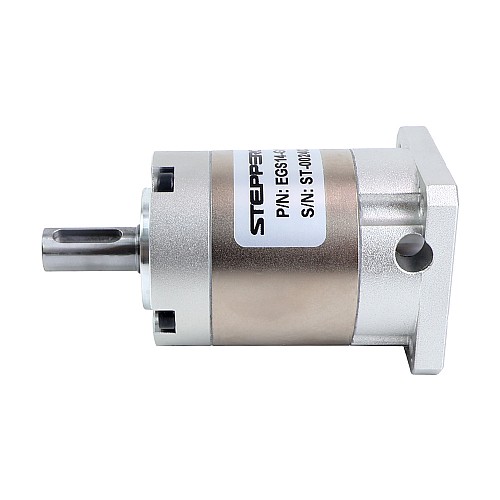

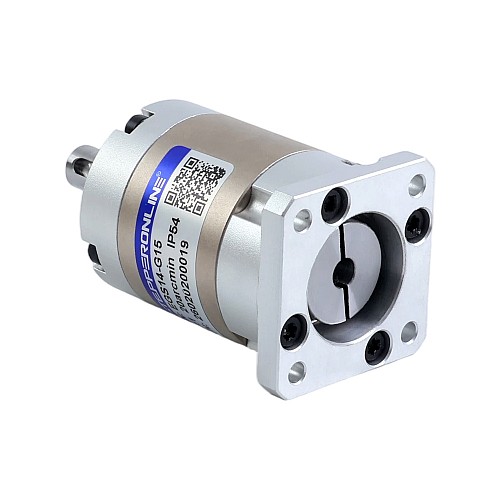

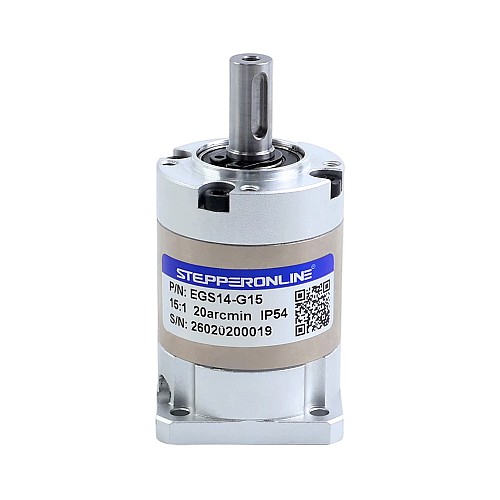

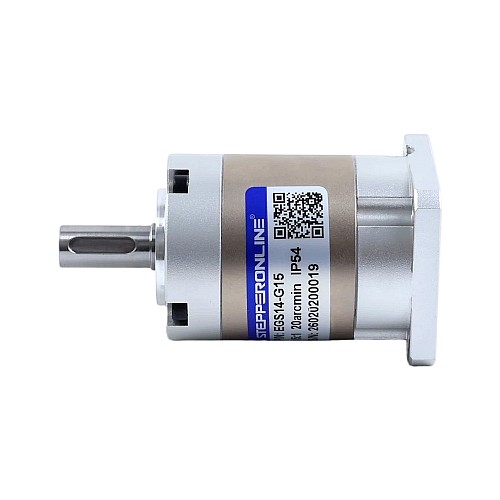

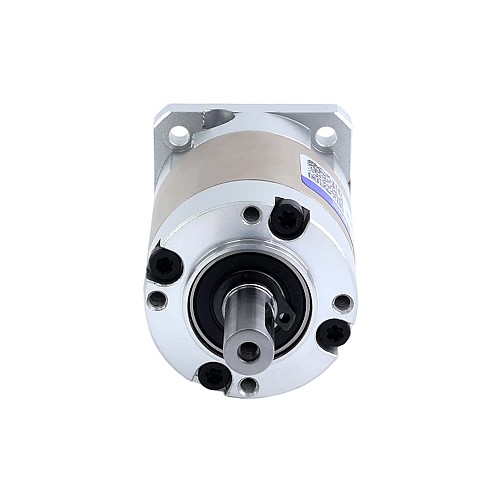

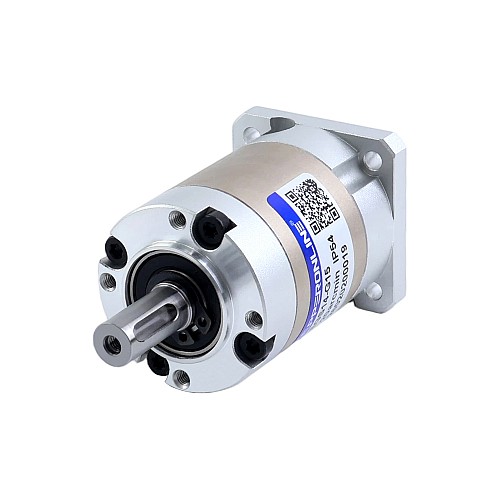

EG Series Planetary Gearbox Gear Ratio 15:1 Backlash 20arc-min for Nema 14 Stepper Motor

0 reviews - Write a review

C$56.76

5 + C$54.42

10 + C$52.26

50 + C$50.26

100 + C$48.43

In Stock: 10000
Model: EGS14-G15
Gross Weight: 0.26kg
Certificated: ISO, CE, REACH

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 15:1 and a maximum 20arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value.

Gearbox Specifications

Part Number: EGS14-G15
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 15:1
Efficiency: 94%
Backlash at No-load: <=20arcmin
Max.Permissible Torque: 9Nm(79.66lb-in)
Moment Permissible Torque: 18Nm(159.32lb-in)
Noise: <=55dB(1000rpm)
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 35 x 35mm
Gearbox Length: 49.5mm
Output Shaft Type: KeyWay
Output Shaft Diameter: Φ8mm
Output Shaft Length: 20mm
Input Shaft Diameter: Φ5mm
Input Shaft Length: 6.5-10mm

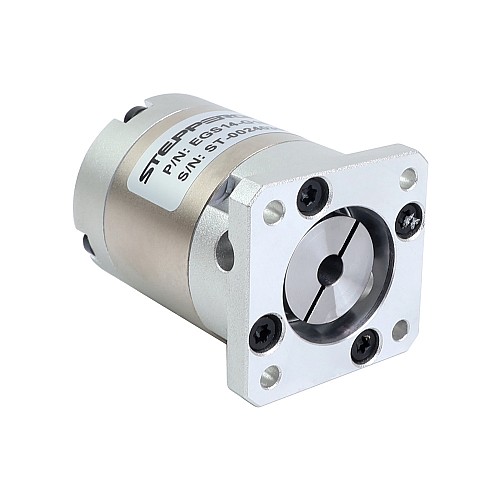

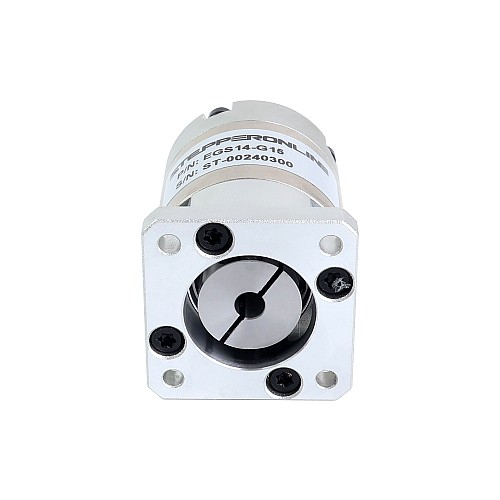

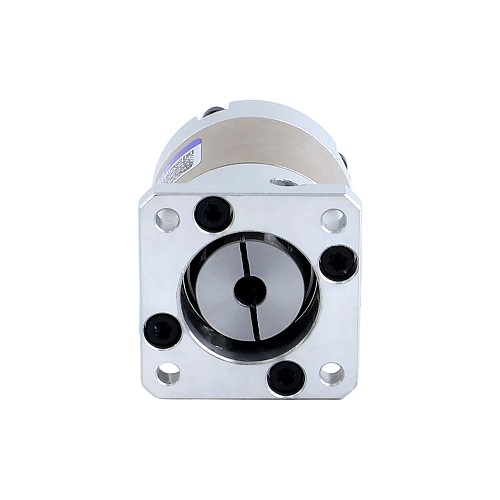

This in-line planetary gearbox has a built-in input shaft coupling and can only match Nema 14 stepper motors with a diameter of 5mm and a shaft length of 6.5-10mm.

Physical Specification
Backlash at No-load	<=20arcmin
Frame Size(mm)	35 x 35
Gear Material	Alloy Steel
Gear Ratio(xx:1)	15
Gearbox Length(mm)	49.5
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	5
Input Shaft Length(mm)	6.5 - 10
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 14 Stepper Motor
Output Shaft Diameter(mm)	8
Output Shaft Length(mm)	20
Output Shaft Type	Keyway
Product Series	EG
