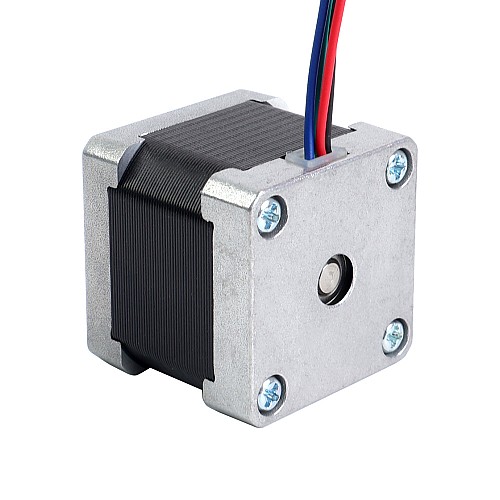

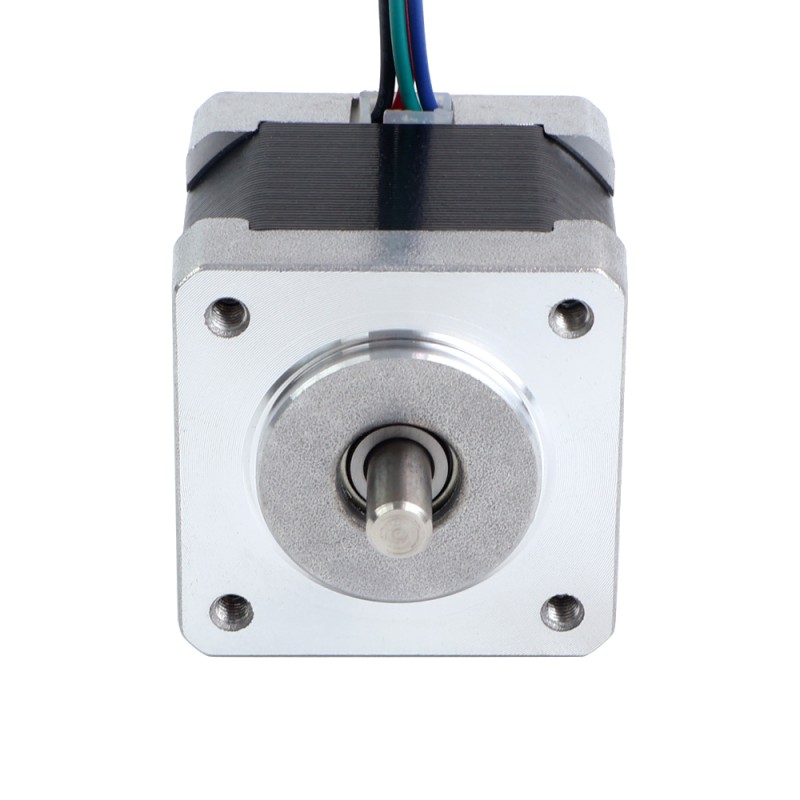

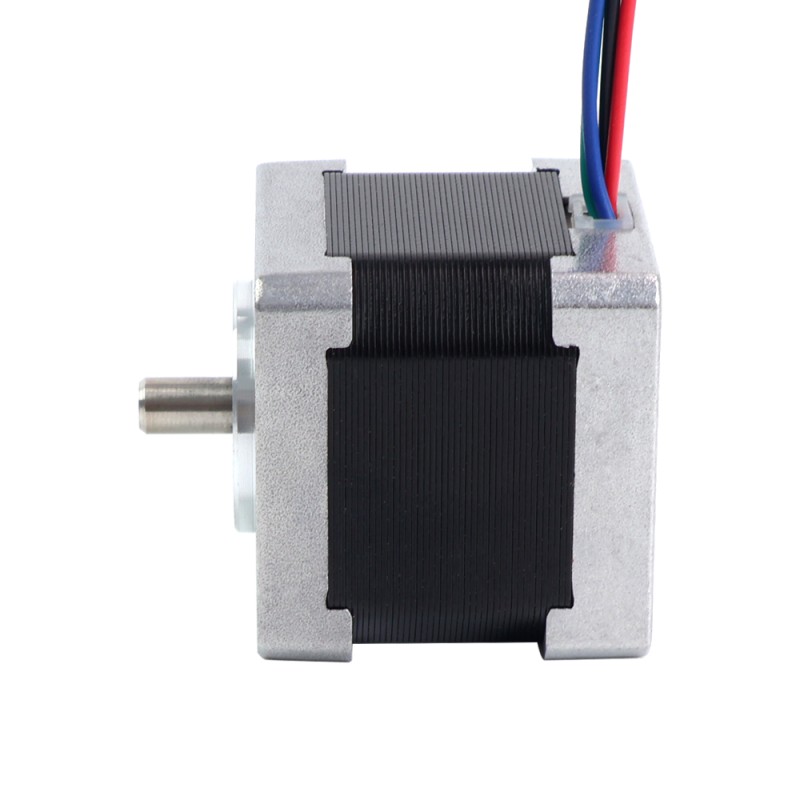

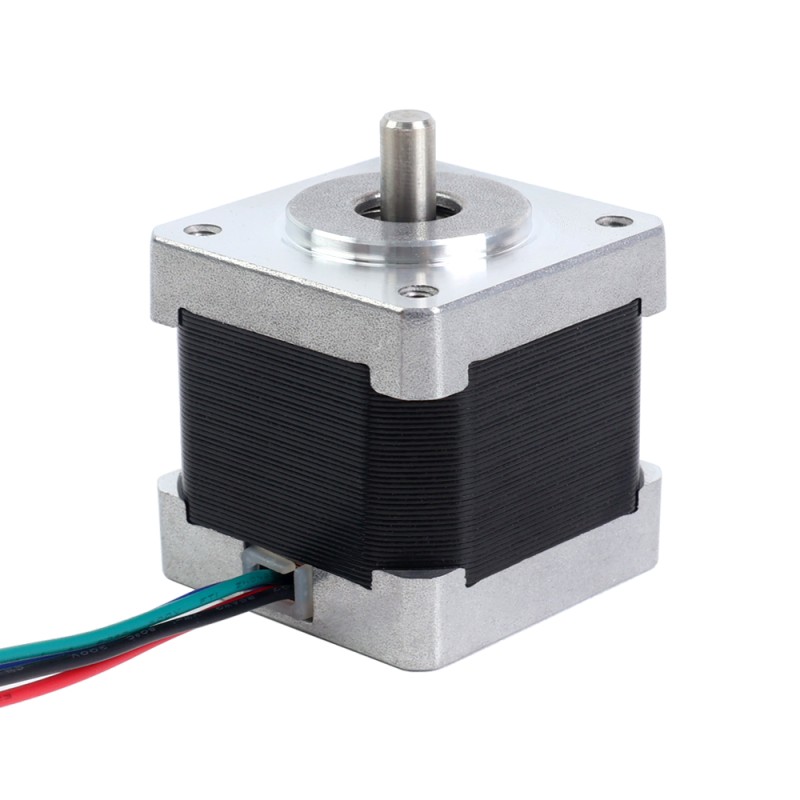

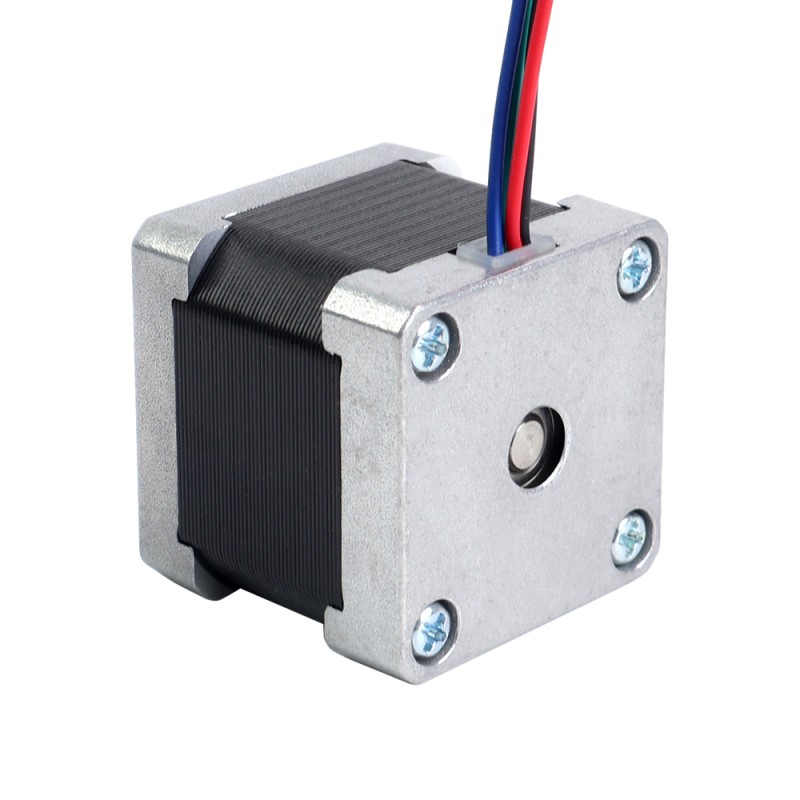

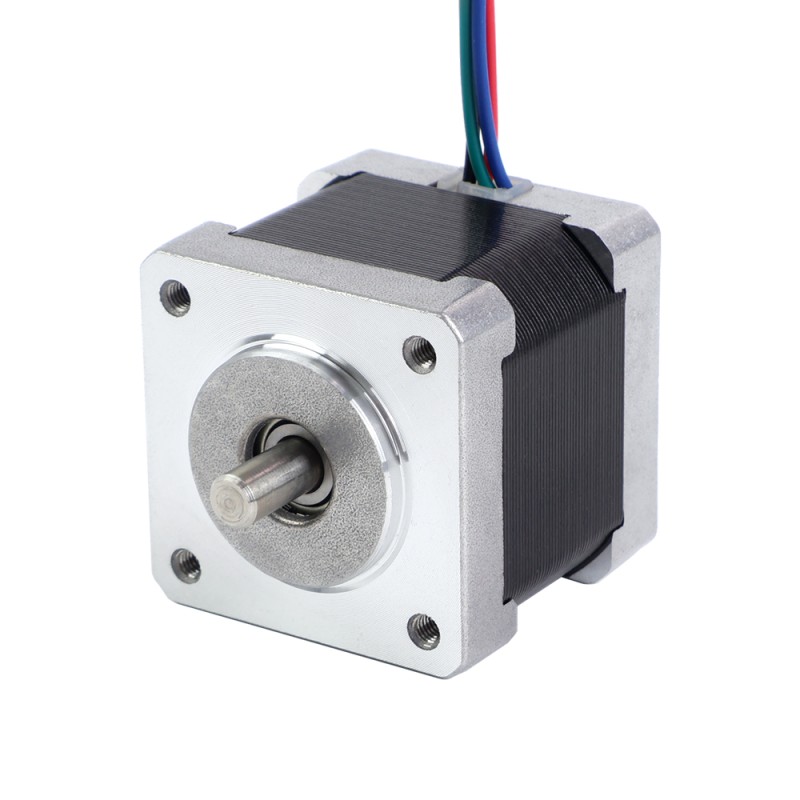

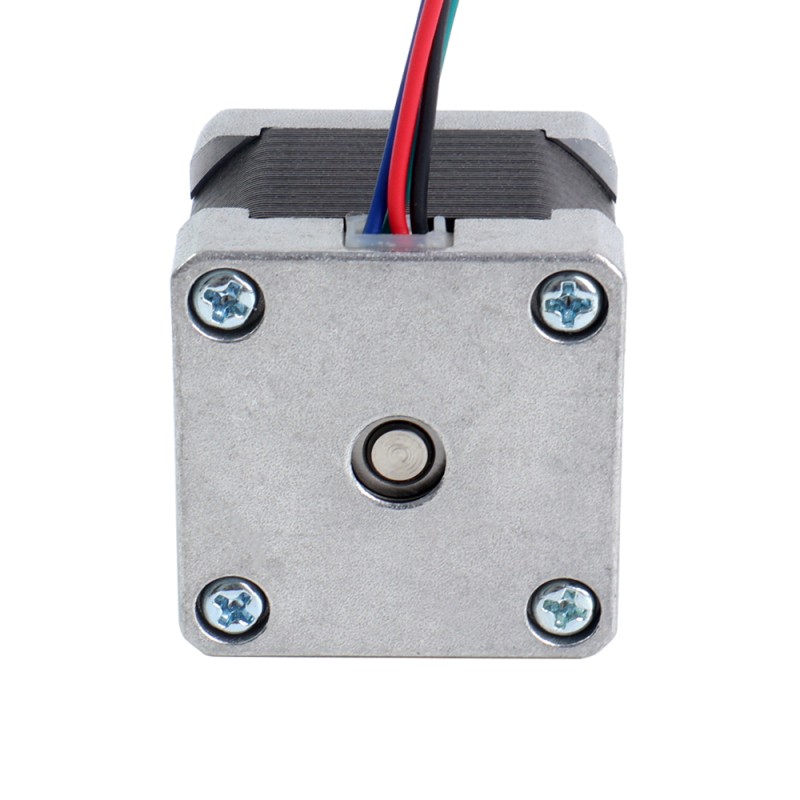

Name: Nema 14 Bipolar 1.8deg 18Ncm(25.49oz.in) 1.0A 35x35x34mm 4 Wires
Brand: STEPPERONLINE
SKU: 14HS13-1004S-EGS
Price: 13.12 CAD
Availability: InStock

Nema 14 Bipolar 1.8deg 18Ncm(25.49oz.in) 1.0A 35x35x34mm 4 Wires

14HS13-1004S-EGS

Output Shaft TypeO

No. of Lead4

Single Shaft/Dual ShaftSingle Shaft

Holding Torque(Ncm)18

Question

Downloads

14HS13-1004S-EGS.STEPSTEP · 559.41KBLog in to download 14HS13-1004S-EGS_Full_Datasheet.pdfPDF · 146.52KB 14HS13-1004S-EGS_Torque_Curve.pdfPDF · 73.1KB

Same series

Model	Output Shaft Type	No. of Lead	Single Shaft/Dual Shaft	Holding Torque(Ncm)	Price	Stock
14HS08-0404S	O	4	Single Shaft	5	C$13.24	In stock
14HS10-0404S	D	4	Single Shaft	14	C$13.24	In stock
14HS11-1004S	D	4	Single Shaft	12.5	C$14.69	In stock
14HS13-0406S	D	6	Single Shaft	10	C$12.30	Backorder
14HS13-0804D	O	4	Dual Shaft	18	C$13.44	In stock
14HS13-0804S	D	4	Single Shaft	18	C$12.30	In stock
14HS13-1004S-EGS	O	4	Single Shaft	18	C$13.12	In stock
14HS14-1254H	Hollow	4	Dual Shaft	16	C$21.29	In stock
14HS17-0504S	D	4	Single Shaft	23	C$15.14	In stock
14HS19-2004H	Hollow	4	Dual Shaft	33	C$31.00	In stock
14HS20-1504D	D	4	Dual Shaft	40	C$18.92	In stock
14HS20-1504S	D	4	Single Shaft	40	C$20.98	In stock

Nema 14 Bipolar 1.8deg 18Ncm(25.49oz.in) 1.0A 35x35x34mm 4 Wires

This is a 2-phase Nema 14 stepper motor with a 1.8° step angle. Each phase draws 1.0A and allows for... Read More

0 reviews • Write a review

from

C$13.12

5 + C$12.44

10 + C$11.82

50 + C$11.27

100 + C$10.76

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 2-phase Nema 14 stepper motor with a 1.8° step angle. Each phase draws 1.0A and allows for holing torque of 18Ncm (25.49oz.in). It has a short shaft length of 10mm that is specifically designed to work with our EGS14 gearboxes.

Electrical Specification

Manufacturer Part Number: 14HS13-1004S-EGS
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 18Ncm(25.49oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 4.2ohms
Inductance: 6.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 35 x 35mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Shaft Length: 10mm
Number of Leads: 4
Cable Length: 400mm
Weight: 180g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	18
Holding Torque(oz.in)	25.49
Inductance(mH)	6.0
Phase Resistance(ohms)	4.2
Rated Current(A)	1.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	34
Cable Length(mm)	400
Frame Size(mm)	Nema 14 (35 x 35)
IP Rating	40
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	10
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	180
