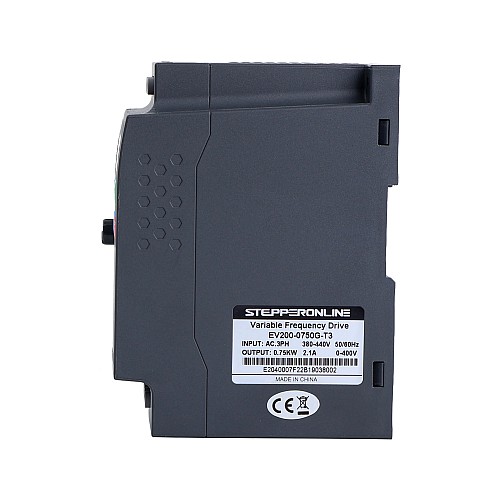

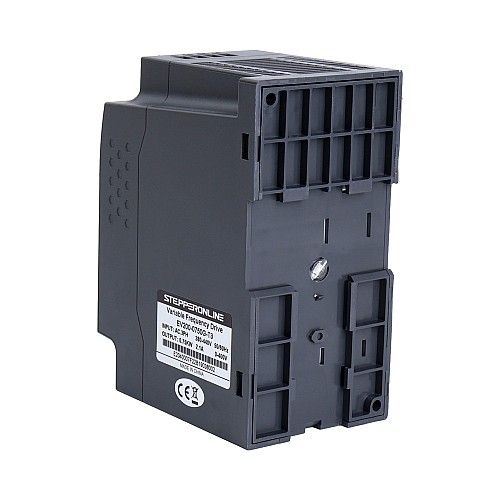

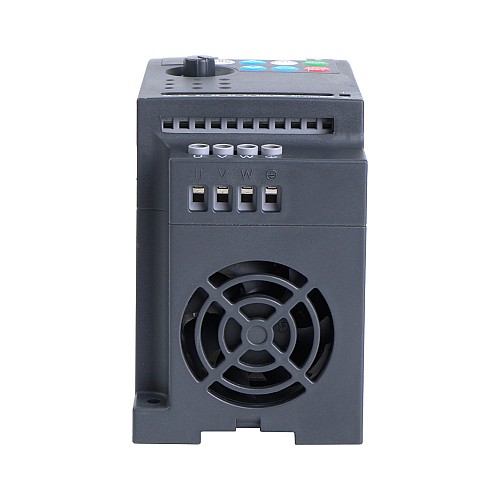

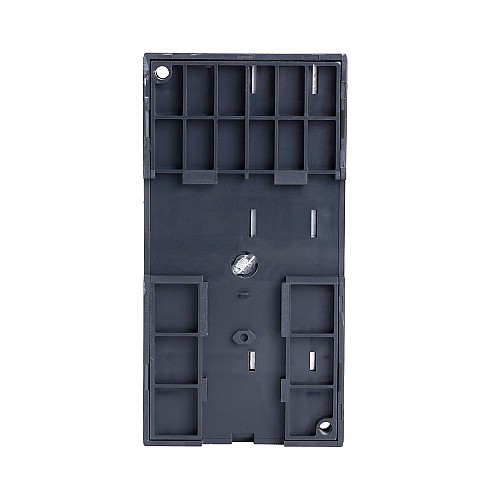

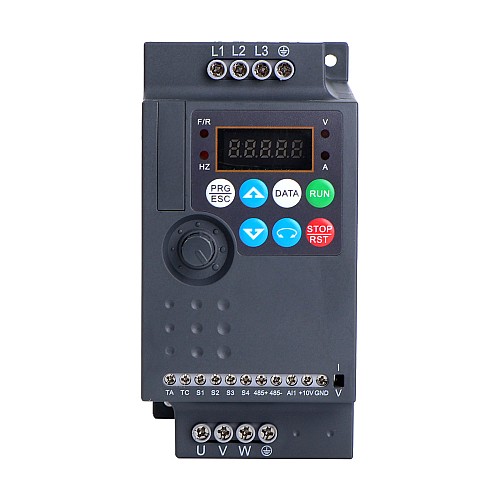

EV200 Series VFD 1HP 0.75KW 2.1A Three Phase 380V Variable Frequency Drive
0 reviews - Write a review
C$0.00
  • In Stock: 1
  • Model: EV200-0750G-T3
  • Gross Weight: 0.83kg
  • Certificated: ISO, CE
Sold: 6
Add to Cart
Question
Add to Wish List Compare this Product
This product has a minimum quantity of 999
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This is a 3HP 2.2KW 5.1A three phase 380V variable frequency drive. EV200 series high-performance small inverter is a new generation of high-quality, high-reliability small inverter. Based on the needs of small power, small size and simple speed regulation, single-Three-phase 380VAC and three-Three-phase 380VAC small inverters are targetedly launched, which are easy to operate and more cost-effective.

Key Features

  • New narrow body design, compact structure layout, smart design, which is conducive to saving installation space and reducing power distribution costs
  • Independent air duct, straight up and down, efficient heat dissipation; can be installed side by side, rational use of installation space, greatly reducing the cost of power distribution cabinet
  • The keyboard can be external

Key Specification

  • Input Voltage: Three-phase 380VAC
  • Input Current: 3.4A
  • Output Current: 2.1A
  • Rated Output Voltage: Three-phase 380VAC
  • Output Frequency: 0 - 500Hz
  • Power: 1HP(0.75KW)
  • Dimension: 73*143*112.6mm
  • Mounting Size: 60*129mm
Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is EV50T30015BX0.
Variable Frequency Drive Specification
Input Current 3.4A
Input Frequency 50 / 60Hz
Input Voltage 3PH 380VAC
Output Current 2.1A
Output Frequency 500HZ
Output Power 1HP / 0.75KW
Physical Specification
Inventory Method Dedicated Inventory
File Size
EV200_Simple_Manual.pdf 821.38KB Download
EV200_Series_User_Manual.pdf 688.69KB Download
EV200_Series_Full_User_Manual.pdf 1.51MB Download
EV200_Series_Definition_of_Communication_Data_Address.pdf 1.01MB Download
