Full D-cut Shaft Nema 17 Bipolar 0.9deg 46Ncm(65.1oz.in) 2A 42x42x48mm 4 Wires
6 reviews - Write a review
C$15.92
5 + C$15.18
10 + C$14.49
50 + C$13.87
100 + C$13.31
  • In Stock: 10000
  • Model: 17HM19-2004S1
  • Gross Weight: 0.45kg
  • Certificated: ISO, CE, UKCA, RoHS

Available Options

Add to Cart
Question
Add to Wish List Compare this Product
How to Choose a Shipping Warehouse？
For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

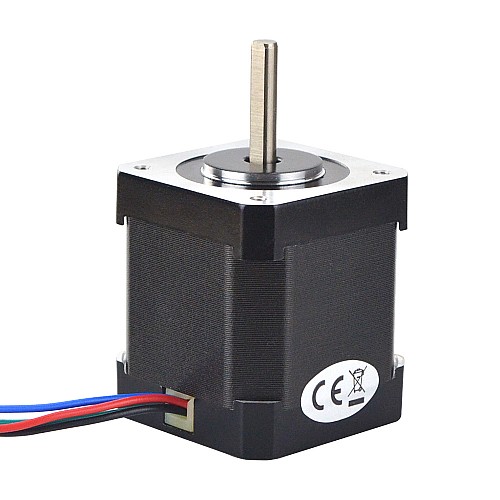

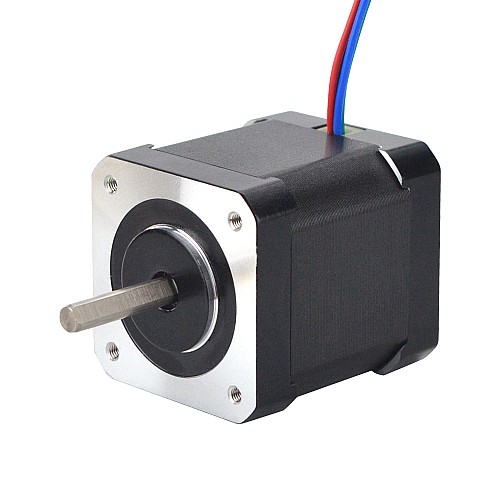

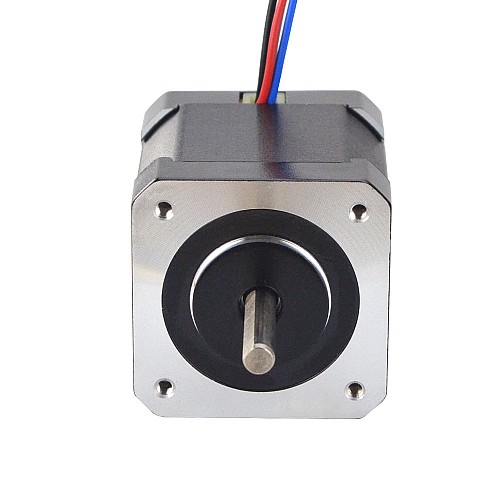

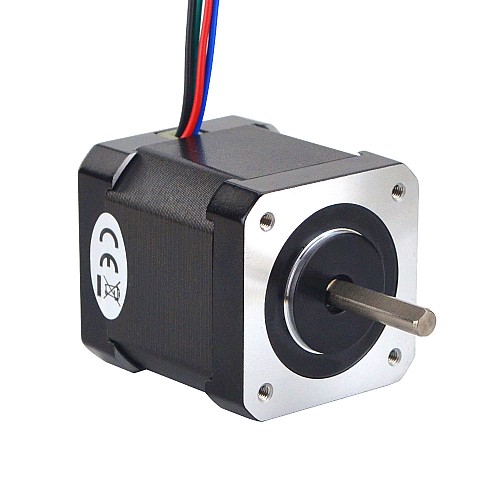

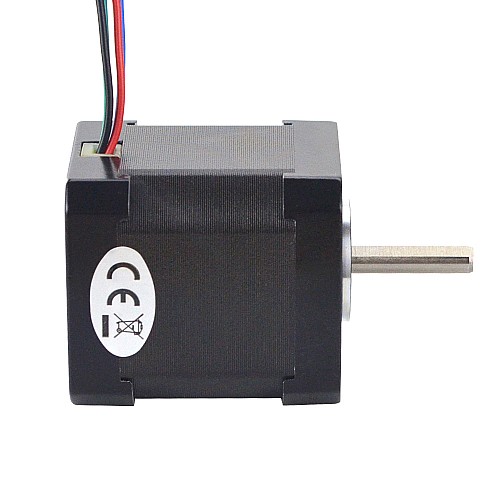

This bipolar Nema 17 stepper motor with step angle 0.9deg and size 42x42x48mm. It has 4 wires, each phase draws current 2.0A, with holding torque 46Ncm(65.1oz.in).


Electrical Specification

  • Manufacturer Part Number: 17HM19-2004S1
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.9deg
  • Holding Torque: 46Ncm(65.1oz.in)
  • Rated Current/phase: 2.0A
  • Phase Resistance: 1.45ohms
  • Inductance: 4.0mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 24mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 370g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 46
Holding Torque(oz.in) 65.1
Inductance(mH) 4
Phase Resistance(ohms) 1.45
Rated Current(A) 2
Step Angle(deg.) 0.9
Physical Specification
Body Length(mm) 48
Frame Size(mm) Nema 17 (42 x 42)
Inventory Method Dedicated Inventory
Lead Length(mm) 500
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Single Shaft/Dual Shaft Single Shaft
Weight(g) 370



  • Motor Shaft
  • Cable
  • Connector
  • Encoder
  • Brake
  • Gearbox


File Size
17HM19-2004S1_Full_Datasheet.pdf 136.92KB Download
17HM19-2004S1_Torque_Curve.pdf 130.29KB Download
