LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm

LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm for Servo Motor - LG5-40DL10S3-200 | StepperOnline CA
LG5-40DL10S3-200
Input Shaft Diameter(mm)8
Input Shaft Length(mm)25
Stroke Length(mm/ft)200/0.66
Max. Speed(mm/s) 500
Question

Downloads

LG5-40DL10S3-200_Full_Datasheet.pdfPDF · 156.89KBLG5_User_Manual.pdfPDF · 1.92MBLG5-40DL10S3-200.STEPSTEP · 5.43MBLog in to download
Same series
ModelInput Shaft Diameter(mm)Input Shaft Length(mm)Stroke Length(mm/ft)Max. Speed(mm/s) PriceStock
LG12-24DL103-500830500/1.64166C$344.74In stock
LG12-60DL10S3-5001430500/1.64500C$344.74In stock
LG5-23DL103-500821500/1.64166C$241.06In stock
LG5-40DL10S3-100825100/0.33500C$157.25In stock
LG5-40DL10S3-200825200/0.66500C$163.30In stock
LG5-40DL10S3-300825300/0.98500C$171.07In stock
LG5-40DL10S3-400825400/1.31500C$201.32In stock
LG8-24DL103-500830500/1.64166C$271.59In stock
LG8-60DL10S3-5001430500/1.64500C$271.59In stock
LG5 Series Ball Screw Driven Max. Horizontal/Vertical Payload 15kg/5kg Stroke 200mm
This LG5 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of... Read More
0 reviews • Write a review
from
C$163.30
5 + C$158.53
10 + C$154.03
50 + C$149.79
100 + C$145.75

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

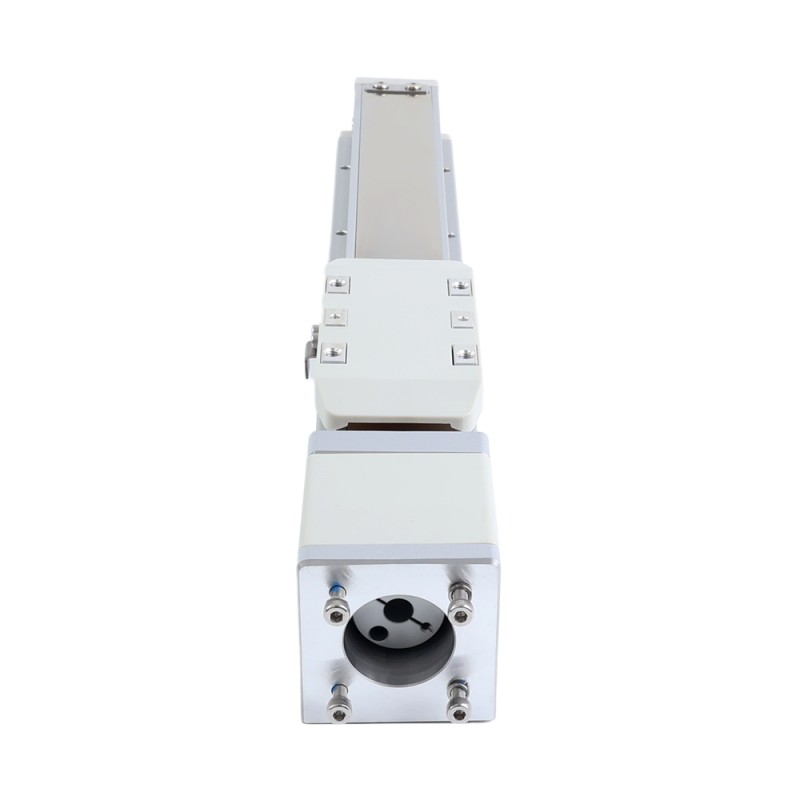

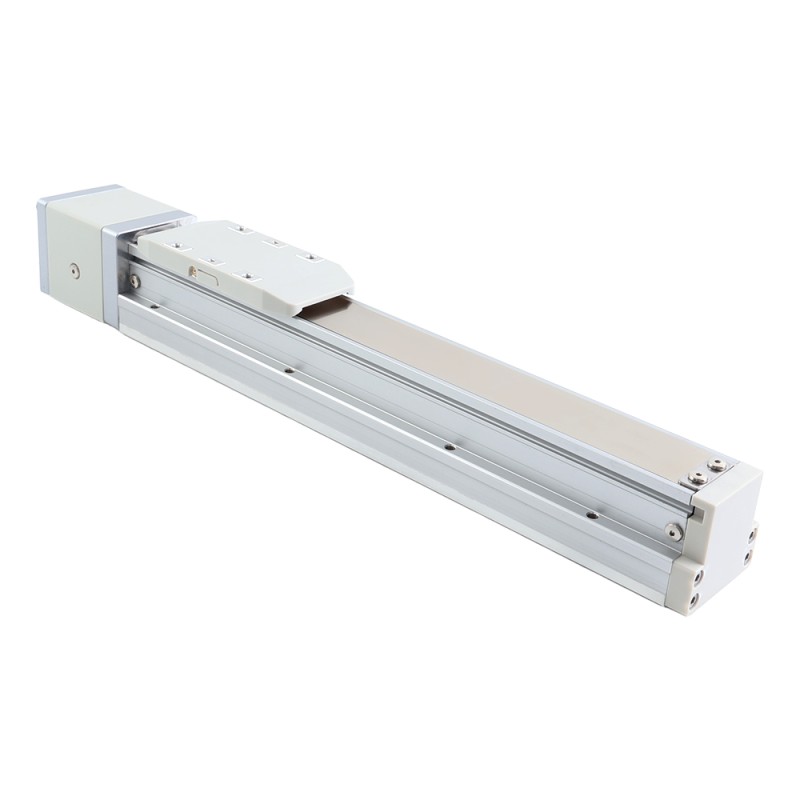

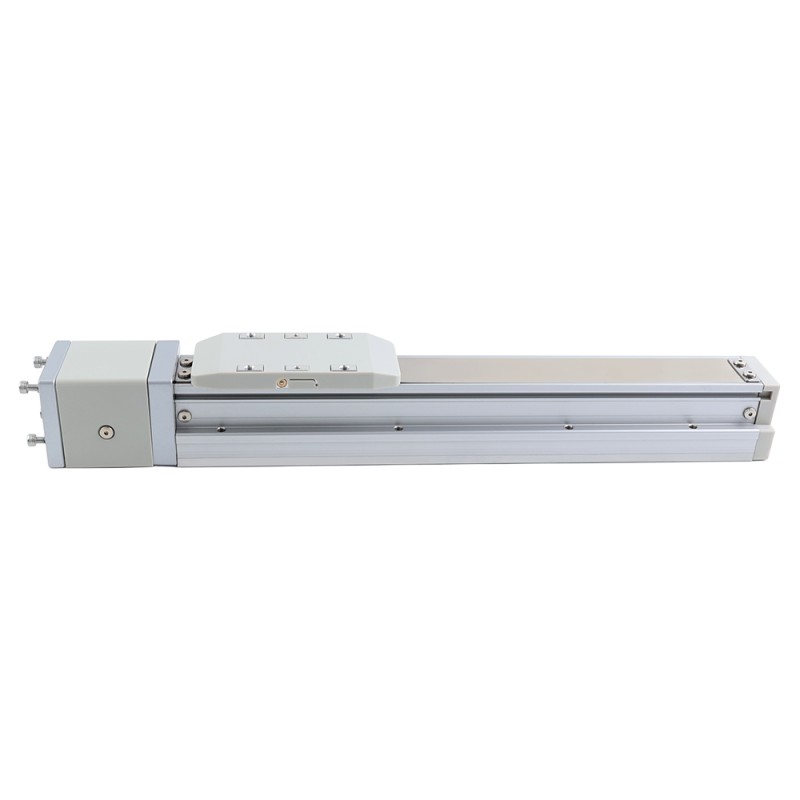

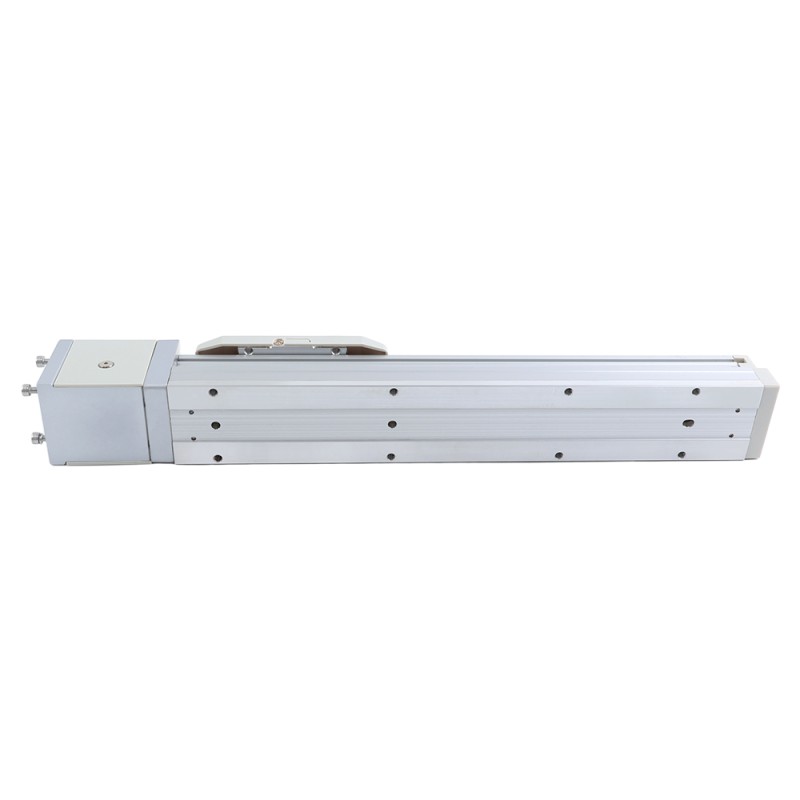

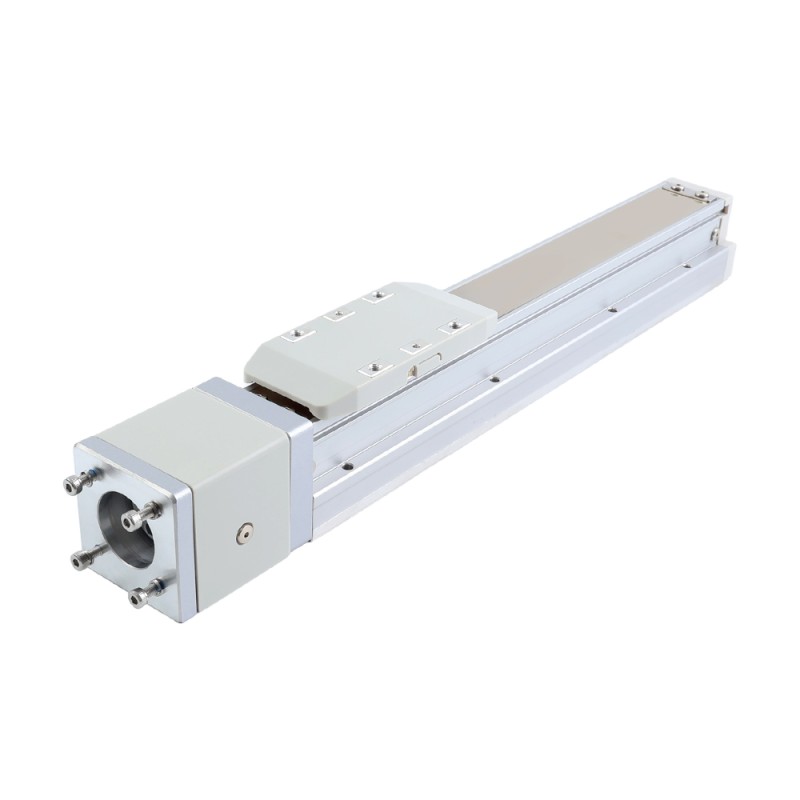

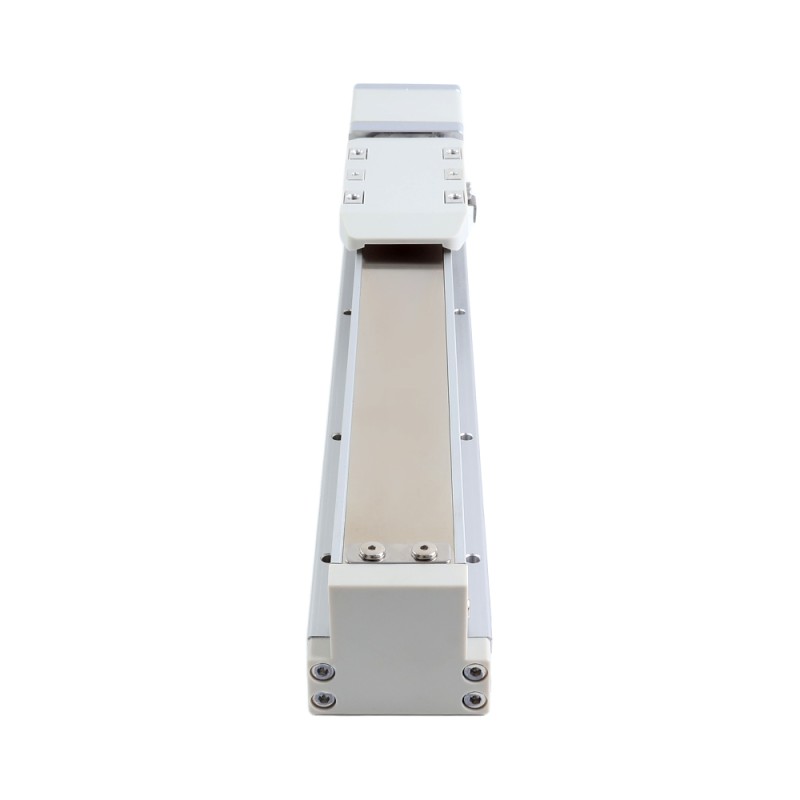

This LG5 series ball screw driven dustproof linear actuator offers a maximum horizontal payload of 15kg(33.07lb) and maximum vertical payload of 5kg(11.02lb), a stroke length of 200mm(0.66ft) and maximum speed of 500mm/s(1.64ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LG series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

  • PN: LG5-40DL10S3-200
  • Screw Type: Ball Screw
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 10mm(0.033ft)
  • Maximum Speed: 500mm/s(1.64ft/s)
  • Maximum Horizontal Payload: 15kg(33.07lb)
  • Maximum Vertical Payload: 5kg(11.02lb)
  • Rated Thrust: 170N

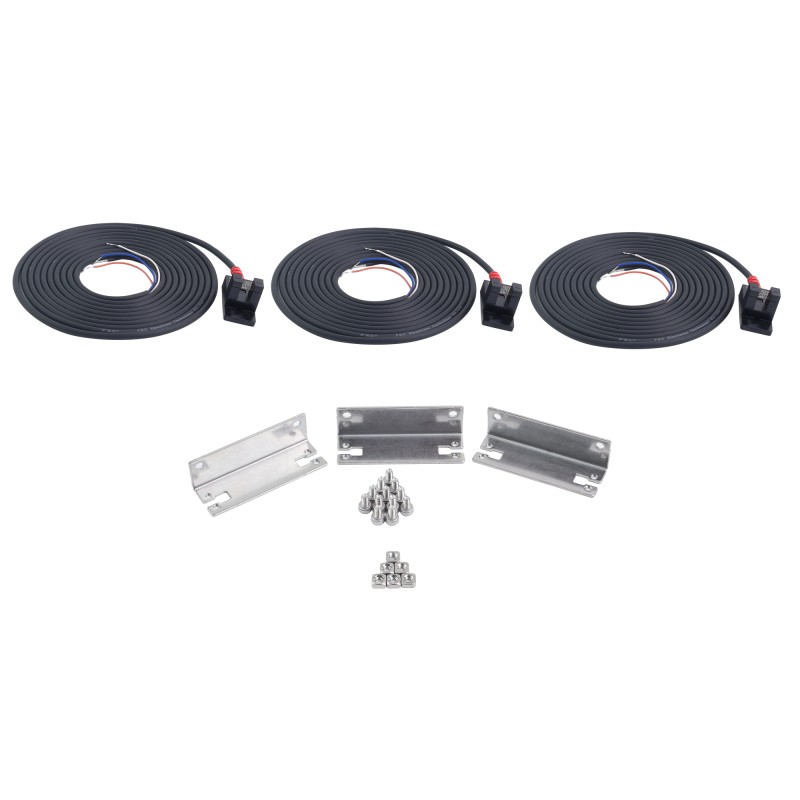

  • Sensor Type: NPN
  • Number of Sensors: 3
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ12mm
  • Motor Frame: 40mm Servo Motor(100W)
  • Stroke Length: 200mm(0.66ft)
  • Input Shaft Length: 25mm
  • Input Shaft Diameter: 8mm
Physical Specification
Input Shaft Diameter(mm) 8
Input Shaft Length(mm) 25
Lead(mm/ft) 10/0.033
Linear Motor Type Built-in screw
Max. Horizontal Payload(kg/lb) 15/33.07
Max. Speed(ft/s) 1.64
Max. Speed(mm/s) 500
Max. Vertical Payload(kg/lb) 5/11.02
Motor Mounting Flange 40mm Servo Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 170
Stroke Length(mm/ft) 200/0.66
Transmission Method Ball Screw Driven

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview

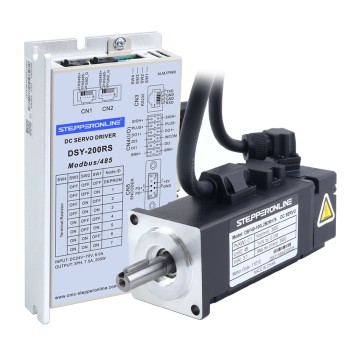

DSY Series 100W RS485 DC Servo Motor 24-70VDC 0.318Nm w/ Brake 3000rpm 17-Bit Incremental Encoder IP65
