DSY Series 100W RS485 DC Servo Motor 24-70VDC 0.318Nm 3000rpm 17-Bit Incremental Encoder IP65

0 reviews - Write a review

C$217.28

5 + C$209.85

10 + C$202.91

50 + C$196.43

100 + C$190.33

In Stock: 10000
Model: DSY-RS100L2A2-M17S
Gross Weight: 1.70kg
Certificated: ISO, CE

Sold: 30

Click country for real-time stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This is the latest DSY series DC servo system, featuring a 48VDC 100W servo motor and a 24-70VDC 200W servo driver. The motor boasts a rated torque of 0.318Nm, a peak torque of 0.954Nm, and a rated speed of 3000rpm.
This system is enhanced with a standard 17-bit single-turn magnetic incremental encoder and utilizes a high power density design, enabling it to deliver robust performance in a compact form factor, with the capability to achieve up to 3 times instantaneous overload. The innovative magnetic circuit design significantly reduces torque ripple, ensuring minimal vibration during operation and delivering smoother torque output.
Ideal for a wide range of applications, this servo system is particularly suited for mobile robots (AMR, AGV), service robots, specialized robots, logistics and warehousing, sorting systems, medical devices, precision instruments, and the light textile industry, where both voltage and size constraints are critical considerations.

Items in Kit

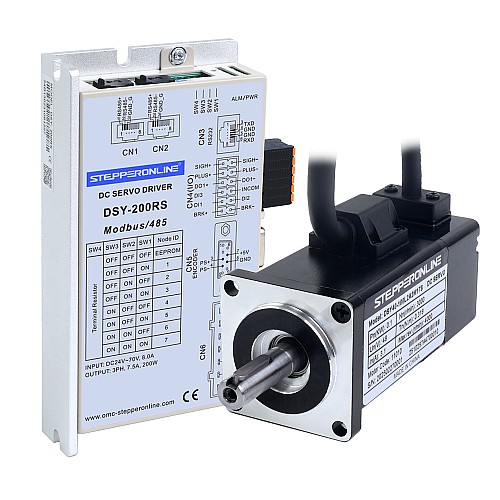

1 x DSY-200RS: 200W Pulse/RS485 DC Servo Motor Driver

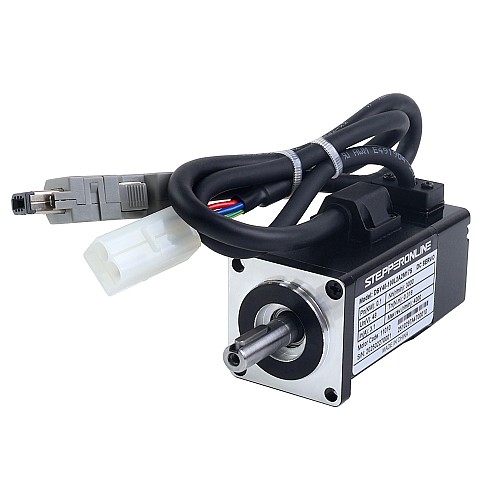

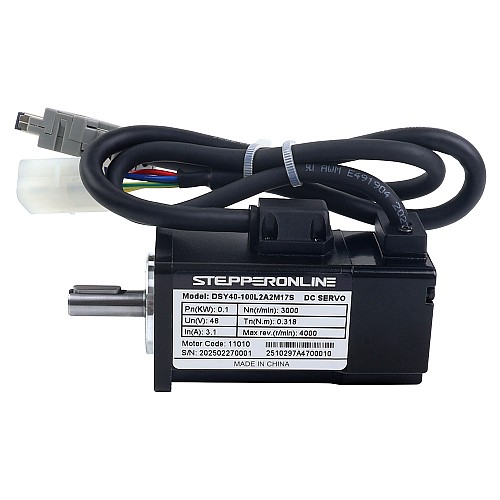

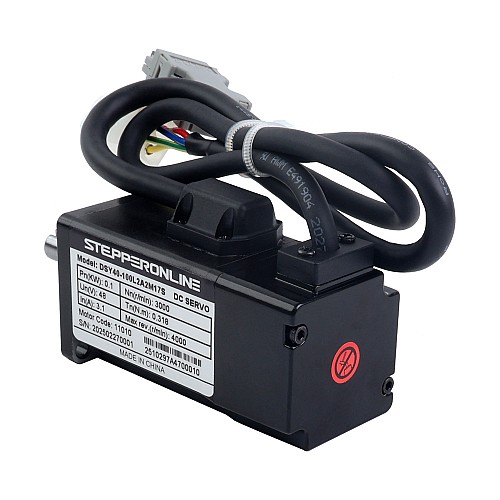

1 x DSY40-100L2A2M17S: 100W 48V DC Servo Motor 3000rpm 0.318Nm 17-Bit Encoder IP65

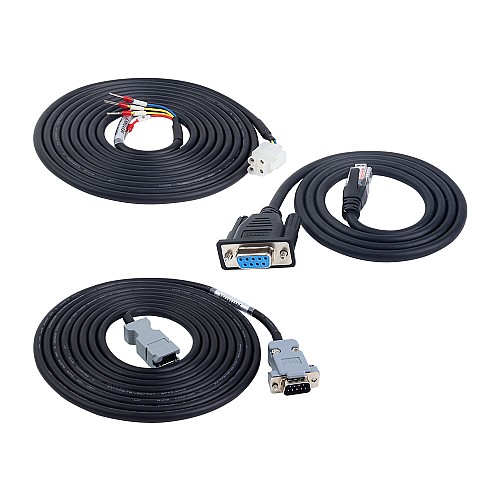

1 x P1-DS-03P08M: 3.0m Motor Cable
1 x E2-DS-03AM: 3.0m Encoder Cable
1 x RS232-5: 1.0m Debugging Cable

Servo Driver Specification

Part Number: DSY-200RS
Continuous Output Current: 7.5A
Maximum Output Current: 24.0A
Power Supply Input: 24-70VDC
Rated power 200W
Dimension: 141*75.5*25.4mm

Servo Motor Specification

Part Number: DSY40-100L2A2M17S
Rated Power: 100W
Rated Voltage: 48VDC
Rated Torque: 0.318Nm
Peak Torque: 0.954Nm
Rated Current: 3.1A
Rated Speed: 3000rpm
Torque Const: 0.10N.m/A
Line-line Resistance: 2.10ohms ± 10%
Line-line Inductance: 1.60mH ± 20%
Inertia: 0.046kg*m²*10^-4
Encoder: 17-bit single-turn magnetic incremental encoder
Poles: 10
IP Rating: IP65
Shaft diameter: 8mm
Cable Length: 3m(optional lengths are 1.5m and 5m)

Please download DSY series servo debug software here.

To learn more about the differences between all servo motors sold on STEPPERONLINE, please refer to this article.

The DSY series debugging software by STEPPERONLINE was developed and tested on Windows 10. Using other Windows versions may cause compatibility issues (e.g., garbled text) or affect software functionality.

Electrical Specification
Control Modes	Pulse/RS485
Encoder Resolution	17bit
Encoder Type	Magnetic Incremental
Input Voltage(V)	24 - 70VDC
Peak Speed(rpm)	4000
Peak Torque(Nm)	0.954
Rated Power(W)	100
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.318
Rated Voltage(V)	48VDC
With Brake	No
Physical Specification
Aviation Plug or Not	No
Frame Size(mm)	40 x 40
Integrated or Not	No
Inventory Method	Dedicated Inventory
IP Rating	65
Shaft Diameter(mm)	8

File	Size
DSY40-100L2A2M17S_Full_Datasheet.pdf	131.88KB	Download
DSY40-100L2A2M17S.STEP	1.42MB	Download
DSY-200RS.STEP	16.58MB	Download
DSY-RS_Series_Low_Voltage_Servo_Drive_User_manual_(V1.0).pdf	14.58MB	Download
