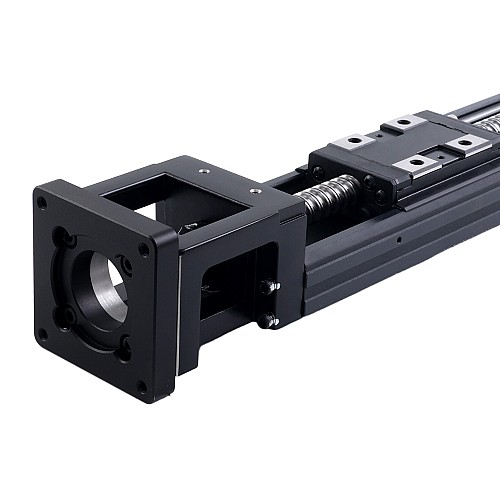

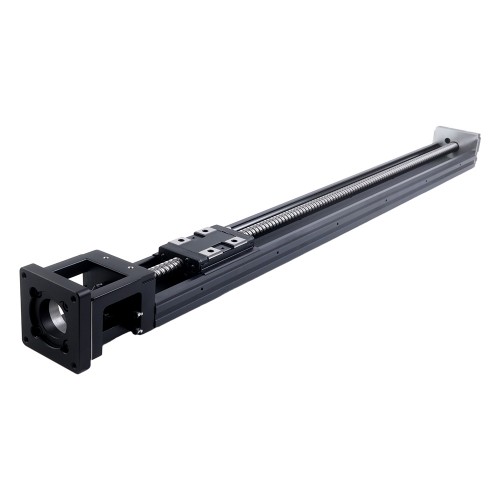

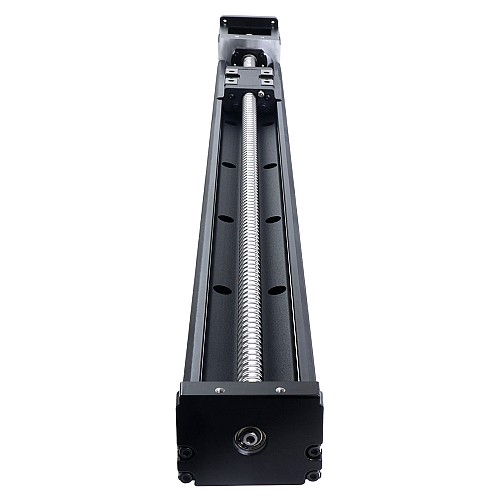

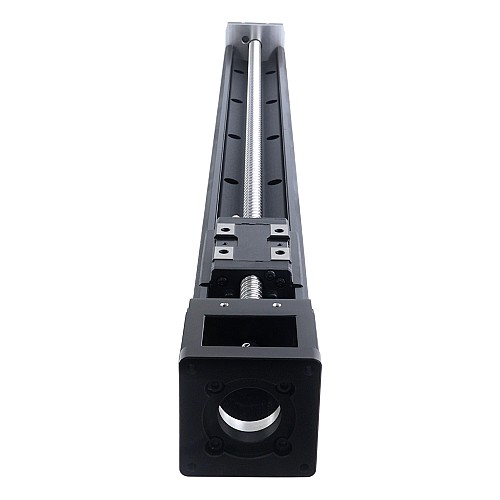

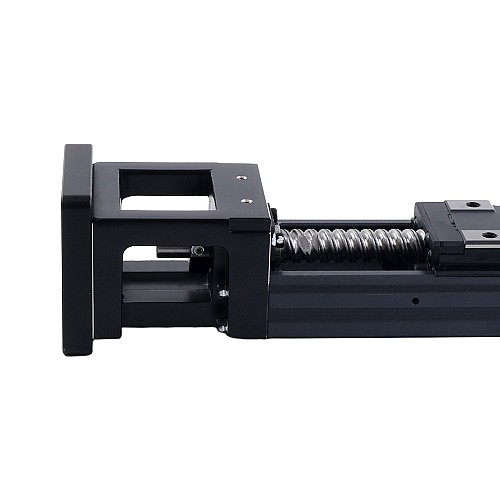

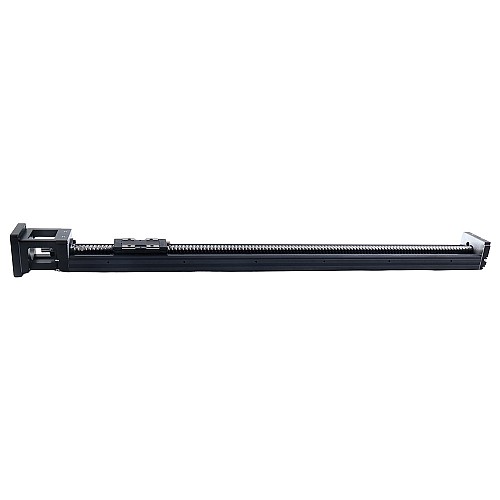

LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 510mm

This LKN60 series ball screw driven linear actuator offers a maximum horizontal payload of 30kg(66.14lb) and maximum vertical payload of 10kg(22.05lb), a stroke length of 510mm(1.64ft) and maximum speed of 540mm/s(1.77ft/s). The actuator is specifically compatible with Nema 23 stepper motors, ensuring versatile integration into precision motion systems.
To achieve a lean design and reduce both weight and footprint, this model omits non-essential components such as protective covers, integrated carriages, sensors, and couplings. Ideal for applications where minimal size and simplified assembly are prioritized, the LKN60 offers a reliable and economical linear motion solution without compromising core performance in high-cycle or confined automation environments.

• PN: LKN60-23DL100-510
• Screw Type: Ball Screw
• Position Accuracy: ± 0.01mm
• Ball Screw Lead: 10mm(0.0328ft)
• Maximum Speed: 540mm/s(1.77ft/s)
• Maximum Horizontal Payload: 30kg(66.14lb)
• Maximum Vertical Payload: 10kg(22.05lb)
• Rated Thrust: 341N
• Ball Screw Grade: C7
• Ball Screw Diameter: Φ12mm
• Motor Frame: Nema 23 stepper motor
• Stroke Lengths: 510mm(1.64ft)
