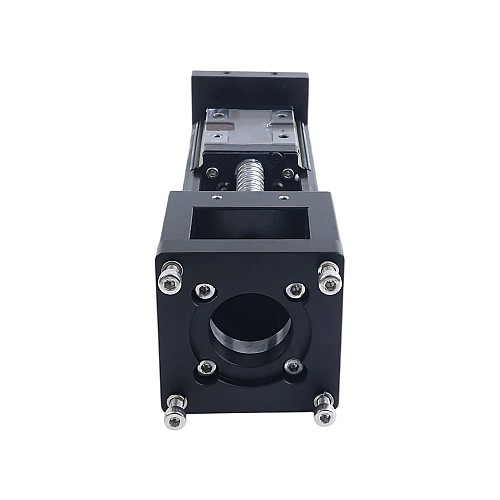

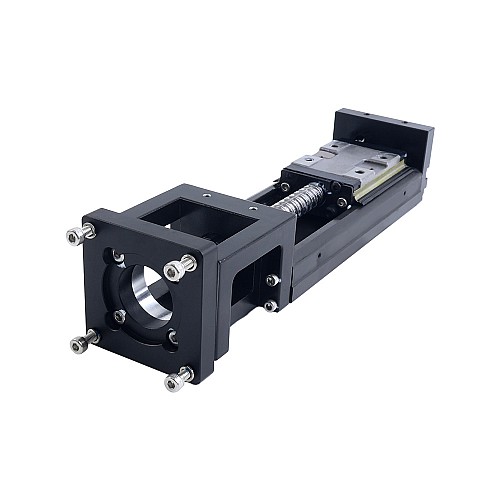

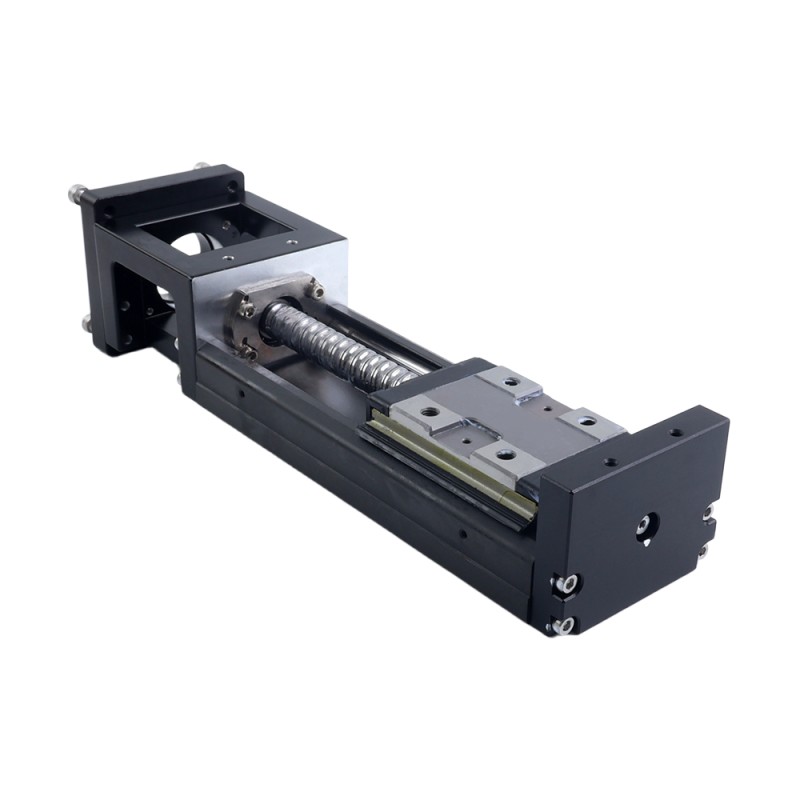

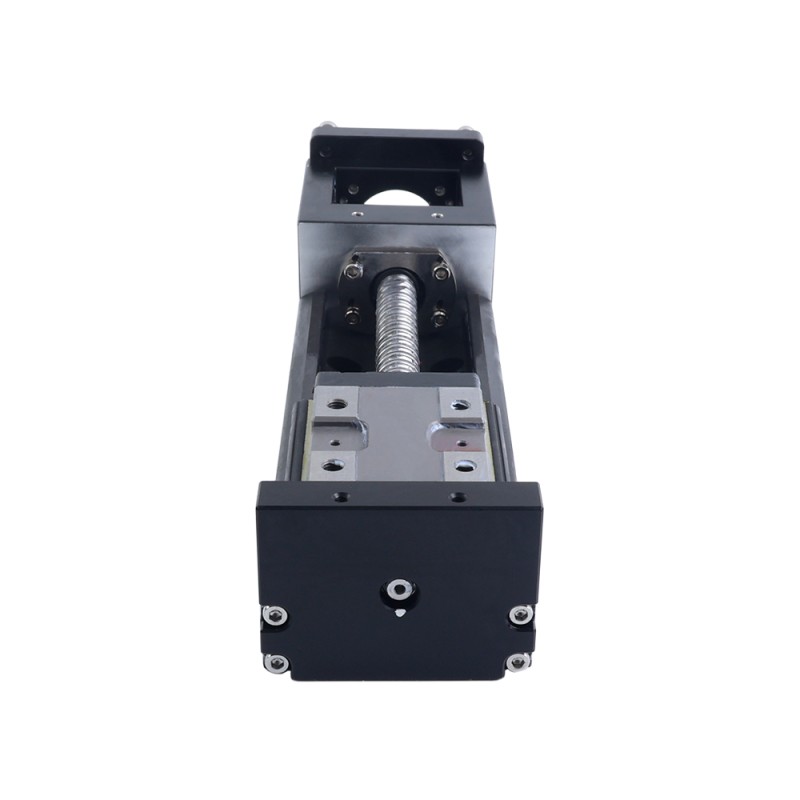

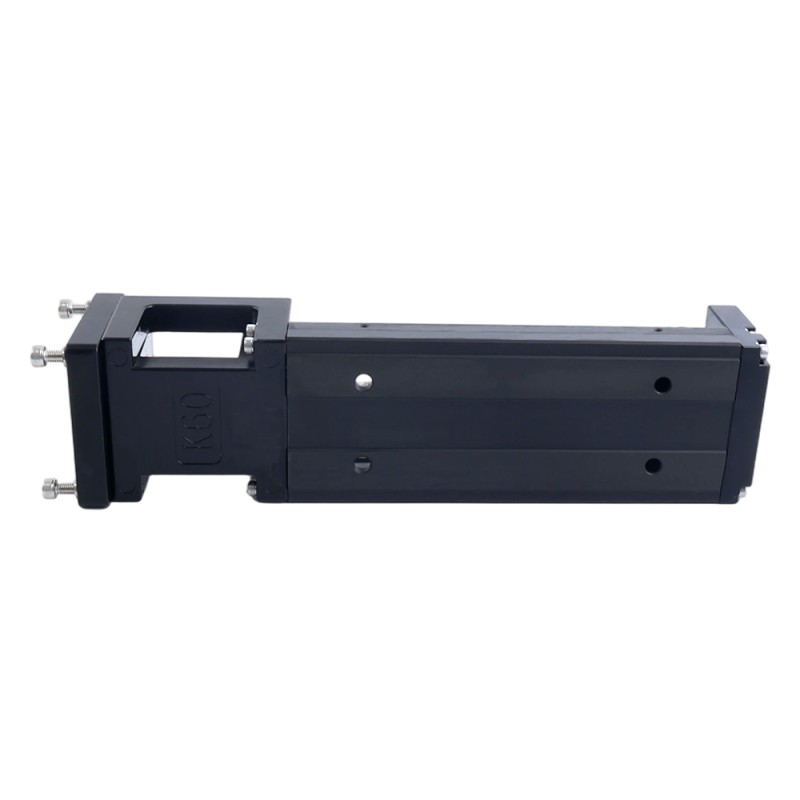

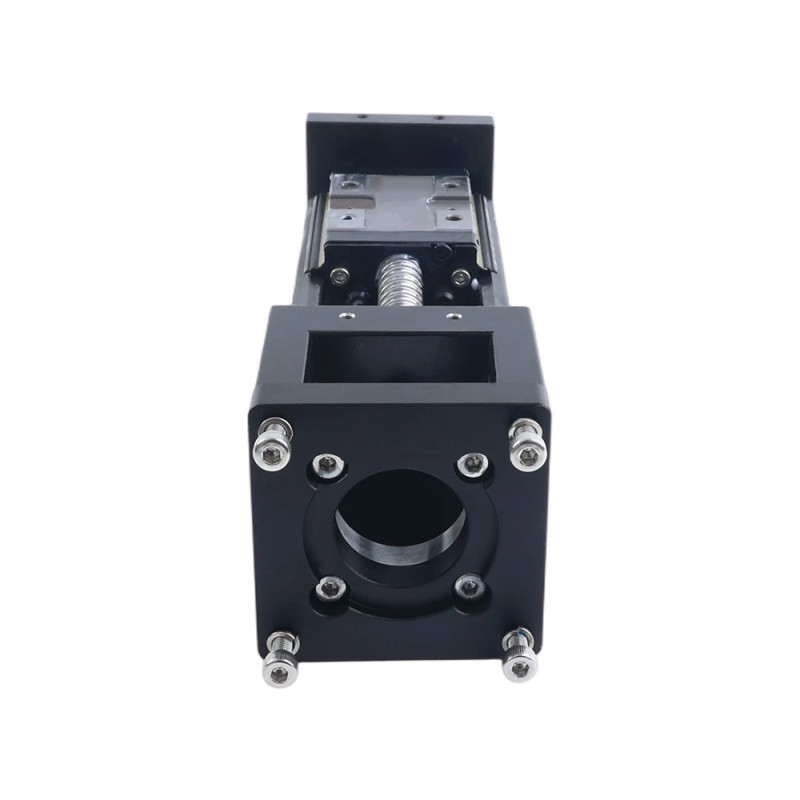

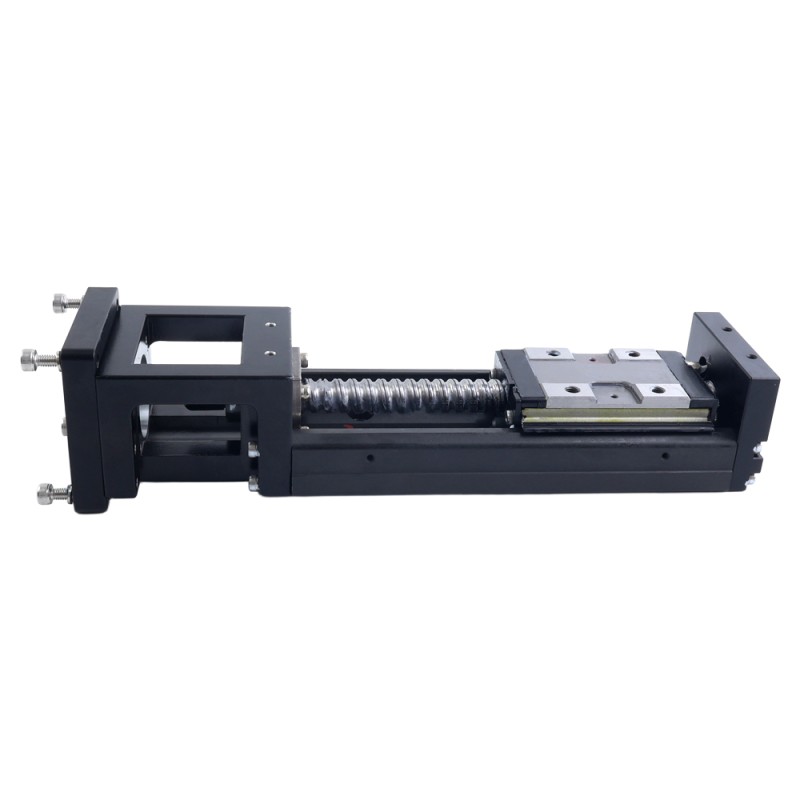

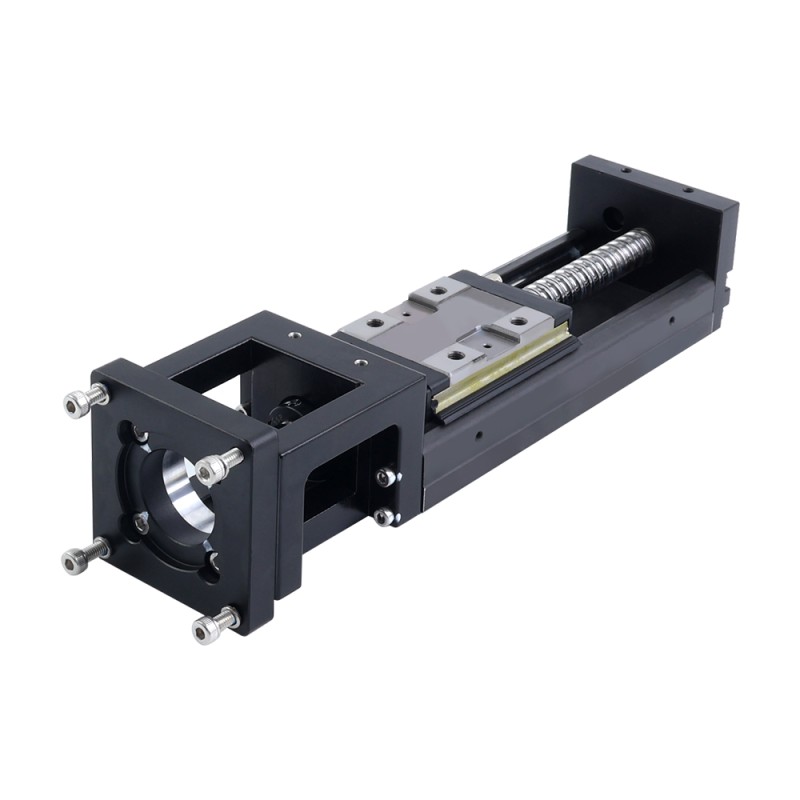

LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm

LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm - LKN60-23DL050-060 | StepperOnline CA
LKN60-23DL050-060
Question

Downloads

LKN60-23DL050-060.STEPSTEP · 6.84MBLog in to downloadLKN60-23DL050-060_Full_Datasheet.pdfPDF · 181.05KB
Same series
ModelPriceStock
LKN60-23DL050-060C$141.19In stock
LKN60 KK Series Ball Screw Driven Linear Module Max. Horizontal/Vertical Payload 30kg/10kg Stroke 60mm
This LKN60 series ball screw driven linear actuator offers a maximum horizontal payload of 30kg(66.1... Read More
0 reviews • Write a review
from
C$141.19
5 + C$136.66
10 + C$132.43
50 + C$128.44
100 + C$124.70

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

This LKN60 series ball screw driven linear actuator offers a maximum horizontal payload of 30kg(66.14lb) and maximum vertical payload of 10kg(22.05lb), a stroke length of 60mm(0.2ft) and maximum speed of 250mm/s(0.82ft/s). The actuator is specifically compatible with Nema 23 stepper motors, ensuring versatile integration into precision motion systems.
To achieve a lean design and reduce both weight and footprint, this model omits non-essential components such as protective covers, integrated carriages, sensors, and couplings. Ideal for applications where minimal size and simplified assembly are prioritized, the LKN60 offers a reliable and economical linear motion solution without compromising core performance in high-cycle or confined automation environments.

  • Part Number: LKN60-23DL050-060
  • Screw Type: Ball Screw
  • Position Accuracy: ± 0.01mm
  • Ball Screw Lead: 5mm(0.016ft)
  • Maximum Speed: 250mm/s(0.82ft/s)
  • Maximum Horizontal Payload: 30kg(66.14lb)
  • Maximum Vertical Payload: 10kg(22.05lb)
  • Rated Thrust: 341N
  • Ball Screw Grade: C7
  • Ball Screw Diameter: Φ12mm
  • Motor Frame: Nema 23 stepper motor
  • Stroke Length: 60mm(0.2ft)
Physical Specification
Lead(mm/ft) 5/0.016
Linear Motor Type Steel Body
Max. Horizontal Payload(kg/lb) 30/66.14
Max. Speed(ft/s) 0.82
Max. Speed(mm/s) 250
Max. Vertical Payload(kg/lb) 10/22.05
Motor Mounting Flange Nema 23 Closed Loop Stepper Motor
Motor Mounting Position Direct Connect
Rated Thrust(N) 341
Stroke Length(mm/ft) 60/0.2
Transmission Method Ball Screw Driven
