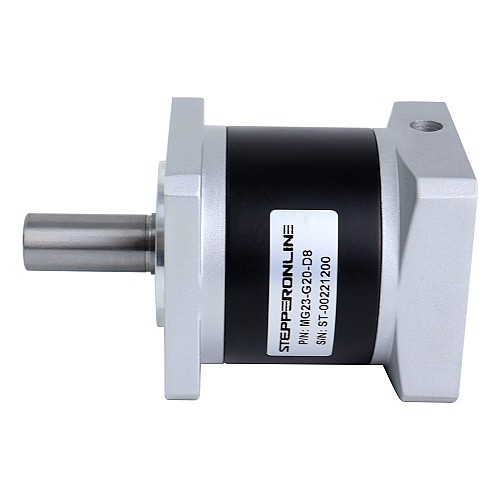

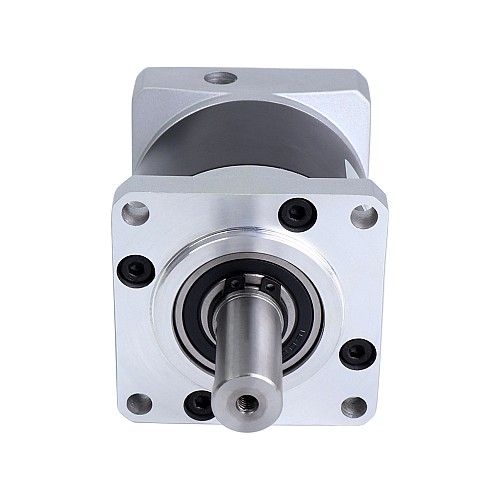

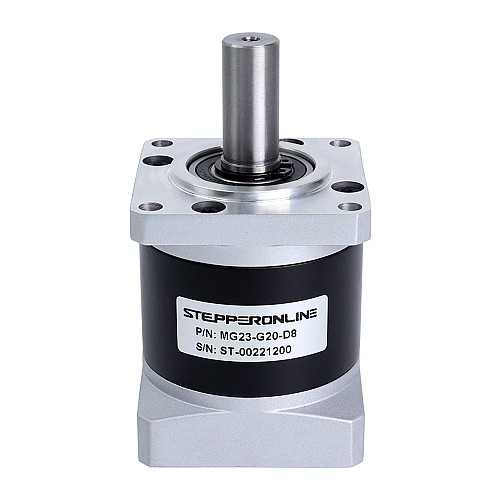

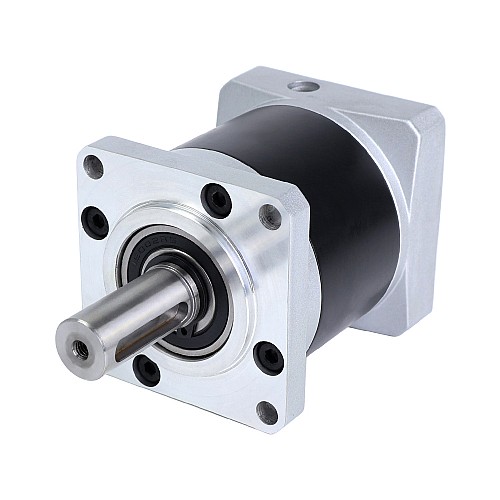

MG Series Planetary Gearbox Gear Ratio 20:1 Backlash 50arc-min for 8mm Shaft Nema 23 Stepper Motor
C$36.76
5 + C$35.55
10 + C$34.41
50 + C$33.34
100 + C$32.34
- In Stock: 10000
- Model: MG23-G20-D8
- Gross Weight: 0.82kg
- Certificated: ISO, CE, REACH
Sold: 320
Click country for real-time stock
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.
The size of this gearbox is 57 x 57mm and the input shaft diameter is 8mm. This high-precision planetary gearbox is belong to MG series gearbox, it with gear ratio 20:1 and a maximum 50arc-min backlash. Diffent with the EG series' steel gears, MG series' gears are made of powder metallurgy. It's an excellent choice for applications that require good accuracy but low cost.

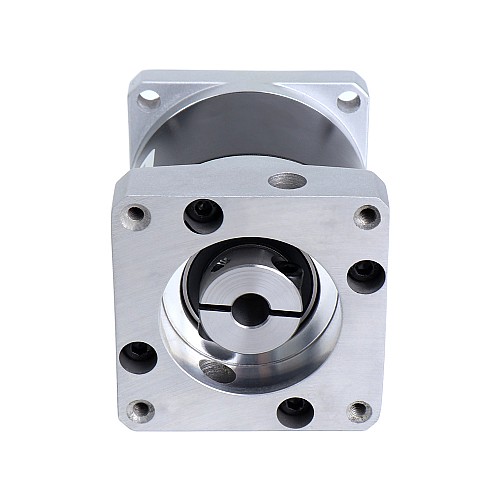

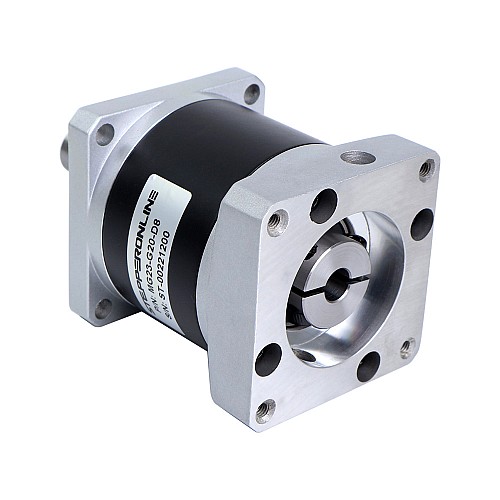

This inline planetary gearbox built-in an input shaft coupling which can match standard 8mm diameter short shaft of Nema 23 stepper motor, brushless dc motor and brushed dc motor.
One of matchable motor is 23HS30-2904S, for other motors, please contact our technical support to custom the motor shaft.
Gearbox Specifications
- Part Number: MG23-G20-D8
- Gearbox Type: Spur Planetary
- Gear Material: Powder Metallurgy
- Gear Ratio: 20:1
- Efficiency: 80%
- Rotor Inertia: 0.03kg·cm²
- Backlash at No-load: <=50arcmin
- Max.Permissible Torque: 25Nm(221.27lb-in)
- Noise: <=55dB(1000rpm)/65dB(3000rpm)
- Waterproof Rating: IP54
- Lifetime: 20000hours
Physical Specifications
- Frame Size: 57 x 57mm
- Gearbox Length: 68mm
- Output Shaft Type: Key way
- Output Shaft Diameter: Φ14mm
- Output Shaft Length: 34mm
- Input Shaft Diameter: Φ8mm
- Input Shaft Length: 8-14mm
This MG series gearboxes are only suitable for short shaft motors with a shaft length of 8-14mm.
If you need standard shaft(21.5-25mm) nema 23 stepper motors, please choose MGL series model: MGL23-G20-D8
If you need standard shaft(21.5-25mm) nema 23 stepper motors, please choose MGL series model: MGL23-G20-D8
Physical Specification | |
Backlash at No-load | <=30arcmin |
Frame Size(mm) | 57 x 57 |
Gear Material | Powder Metallurgy |
Gear Ratio(xx:1) | 20 |
Gearbox Length(mm) | 55.5 |
Gearbox Type | Spur Planetary |
Input Shaft Diameter(mm) | 8 |
Input Shaft Length(mm) | 8 - 14 |
Inventory Method | Dedicated Inventory |
Matching Motor Size | Nema 23 Stepper Motor |
Output Shaft Diameter(mm) | 14 |
Output Shaft Length(mm) | 34 |
Output Shaft Type | Keyway |
Product Series | MG |
Weight(g) | 820 |
