Nema 11 External 51mm Stack 0.67A Lead 0.635mm(0.025") Length 100mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 11E20S0674ED2-100RS
Gross Weight: 0.70kg
Certificated: ISO, CE, RoHS

Sold: 139

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

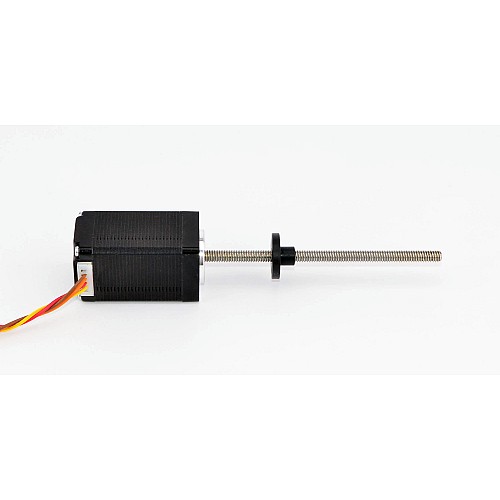

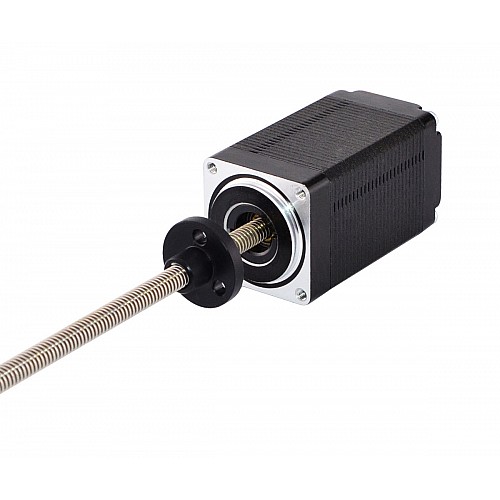

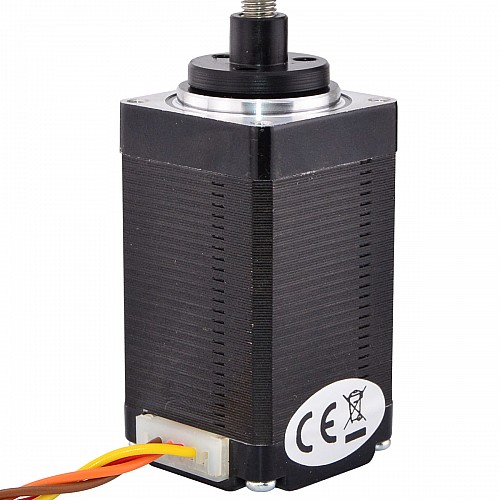

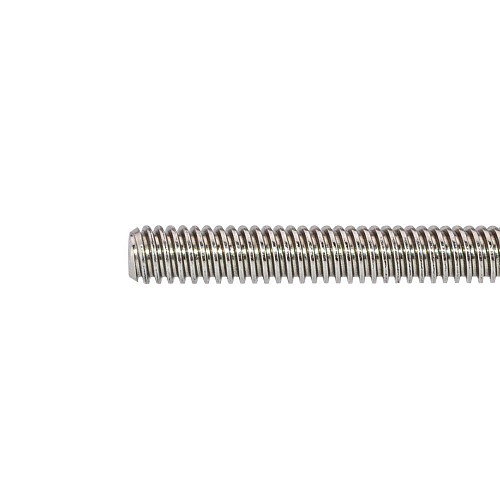

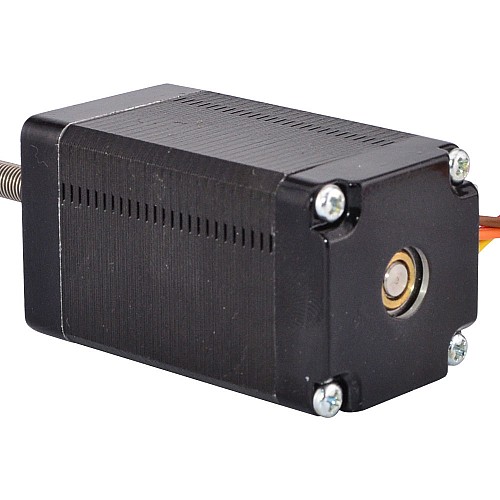

This model is economy linear stepper motor which named Nema 11 external linear actuator, the motor part is 51mm 1.8 degree 0.67A Nema 11 stepper motor. It was integrated with 100mm Tr4.76x0.635 threaded rod and a POM screw nut move along the threaded rod.

Electrical Specification

Manufacturer Part Number: 11E20S0674ED2-100RS(11E20S0674ED-100RS)
Motor Type: External Linear Stepper
Step Angle: 1.8deg
Holding Torque: 12.0Ncm(17oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 9.2ohms
Voltage: 6.2V
Inductance: 5.7mH ± 20%(1KHz)

Physical Specification

Frame Size: 28 x 28mm
Body Length: 51mm
Lead Screw Length: 100mm(3.937")
Lead Screw Diameter: Φ4.76mm(0.1874")
Lead/Step: 0.003175mm(0.000125")
Lead/Revolution: 0.635mm(0.025")
Number of Leads: 4
Cable Length: 304mm
Weight: 220g

Connection

A+	A-	B+	B-
Red	Brown	Yellow	Orange

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 11E20S0674ED4-100RS.

Product Type
Product Type	Linear Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	12
Holding Torque(oz.in)	16.99
Inductance(mH)	5.7
Phase Resistance(ohms)	9.2
Rated Current(A)	0.67
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	51
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	304
Lead Screw Diameter(mm)	4.76
Lead Screw Length(mm)	100
Lead Travel/Revolution(mm)	0.635
Lead Travel/Step(mm)	0.003175
Linear Motor Type	External(Acme)
No. of Lead	4
