Nema 34 CNC Stepper Motor 3.4Nm(481.48oz.in) 4.0A 85.8x85.8x68mm 4 Wires

1 reviews - Write a review

C$46.92

5 + C$45.32

10 + C$43.81

50 + C$42.42

100 + C$41.10

In Stock: Pre-order
Model: 34HS27-4004S
Gross Weight: 2.28kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 176

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

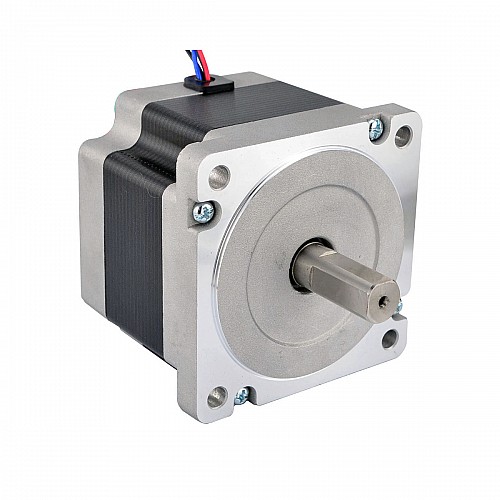

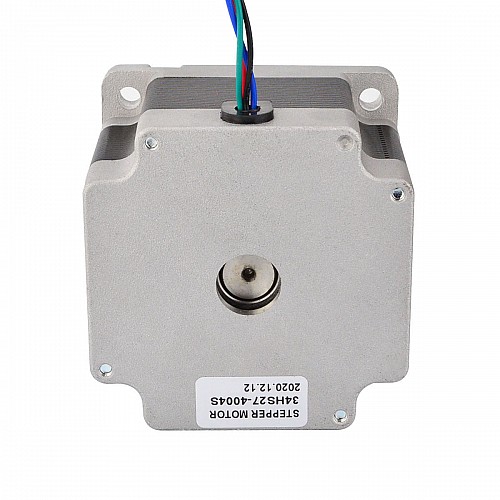

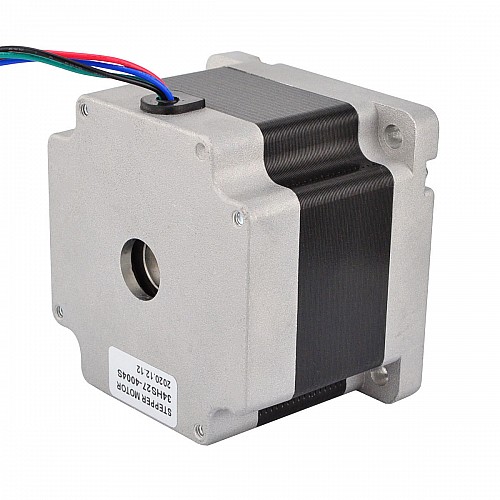

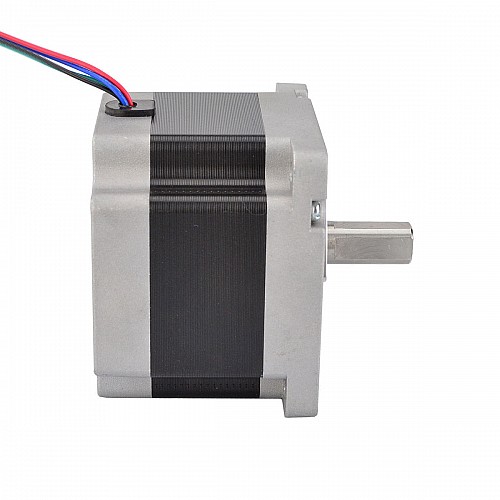

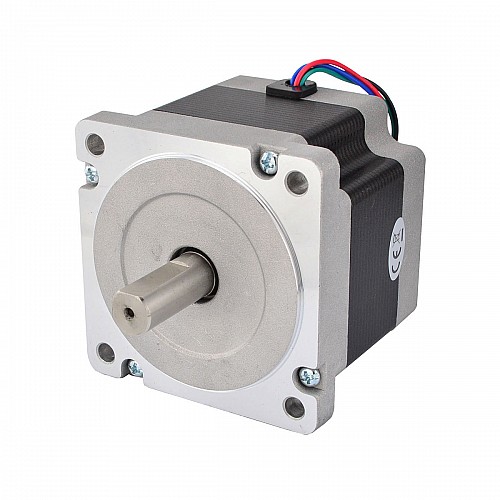

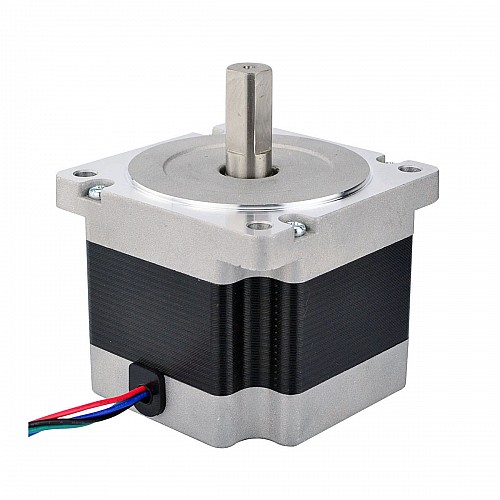

This bipolar Nema 34 stepper motor with step angle 1.8deg and size 85.8x85.8x68mm. It has 4 wires, each phase draws 4.00A, with holding torque 3.4Nm(481.48oz.in).

Electrical Specification

Manufacturer Part Number: 34HS27-4004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.4Nm(481.48oz.in)
Rated Current/phase: 4.00A
Phase Resistance: 0.7ohms
Inductance: 4.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 85.8 x 85.8mm
Body Length: 68mm
Shaft Diameter: Φ14mm
Shaft Length: 32mm
D-cut Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1800g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	340
Holding Torque(oz.in)	481.48
Inductance(mH)	4.4
Phase Resistance(ohms)	0.7
Rated Current(A)	4.00
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	68
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	14
Shaft Length(mm)	32
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1800
