Nema 11 Stepper Motor 0.71A Bipolar L=51mm w/ Gear Ratio 100:1 Planetary Gearbox

Discontinued

Nema 11 Stepper Motor 0.71A Bipolar L=51mm w/ Gear Ratio 100:1 Planetary Gearbox

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 11HS20-0714S-PG100
Gross Weight: 0.40kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 108

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

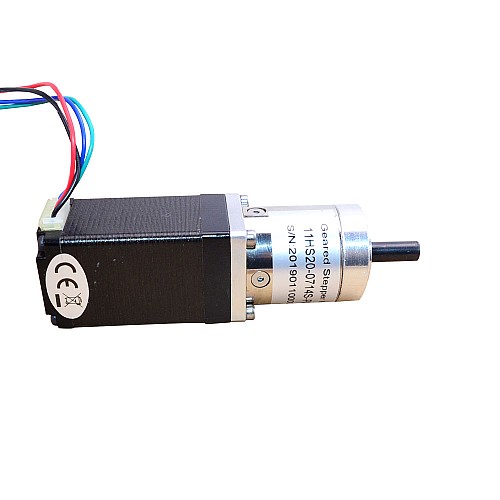

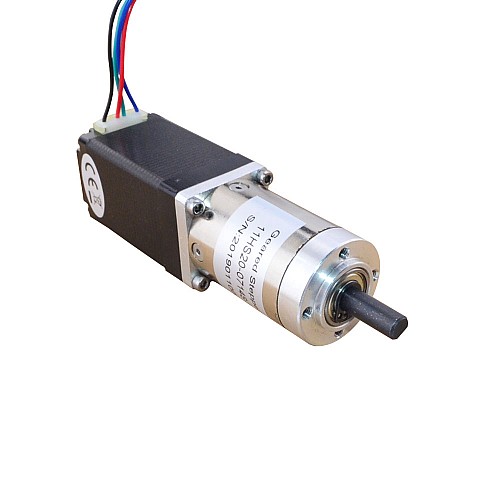

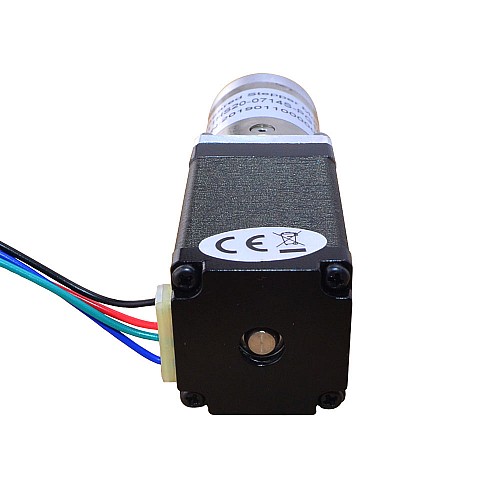

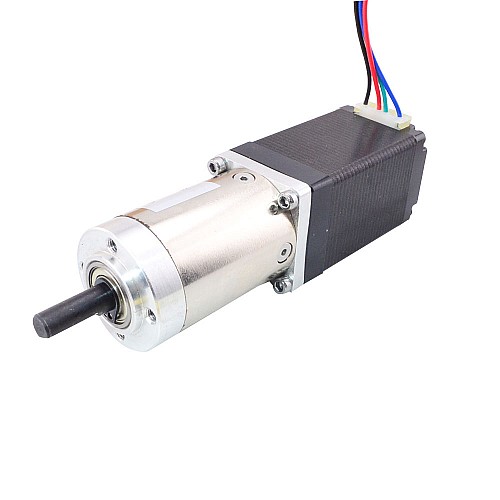

This Nema 11 stepper motor with 51mm body and 0.71A rated current, integrated a planetary gearbox of 99.548:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque

Electrical Specification

Manufacturer Part Number: 11HS20-0714S-PG100
Motor Type: Bipolar Stepper
Holding Torque: 13Ncm(18.41oz.in)
Rated Current/phase: 0.71A
Phase Resistance: 9.0ohms
Inductance: 8.4mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 99.548:1
Efficiency: 70%
Backlash at No-load:<=3deg
Max.Permissible Torque: 3Nm(425oz.in)
Moment Permissible Torque: 5Nm(708oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Physical Specification

Frame Size: 28 x 28mm
Gearbox Length: 42.7mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 330g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 11HS20-0674S-PG100.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.71
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.13
Inductance(mH)	8.4
Phase Resistance(ohms)	9
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	93.7
Frame Size(mm)	Nema 11 (28 x 28)
Gear Ratio(xx:1)	99.05
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	330
