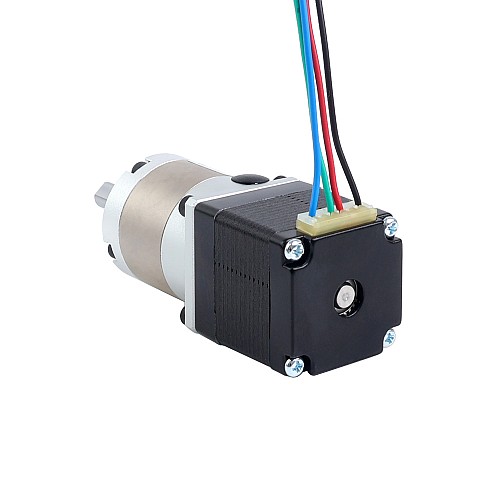

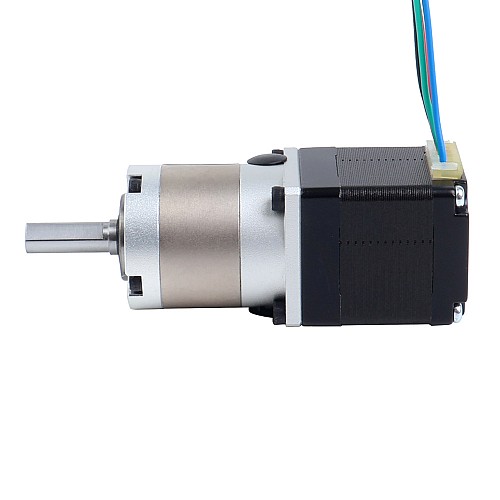

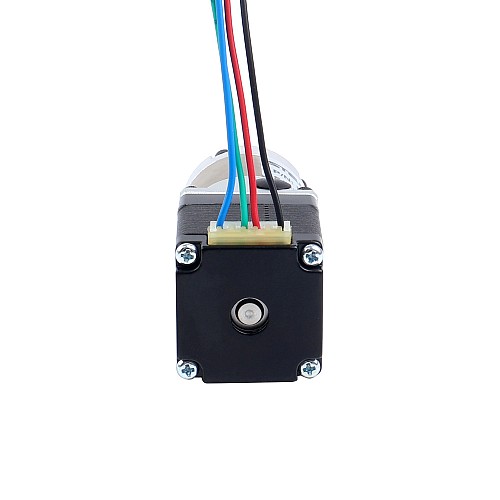

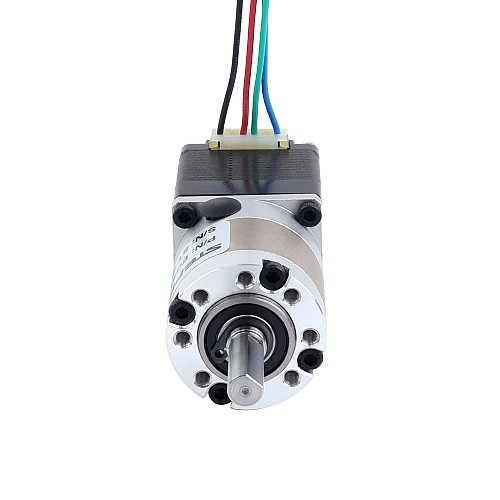

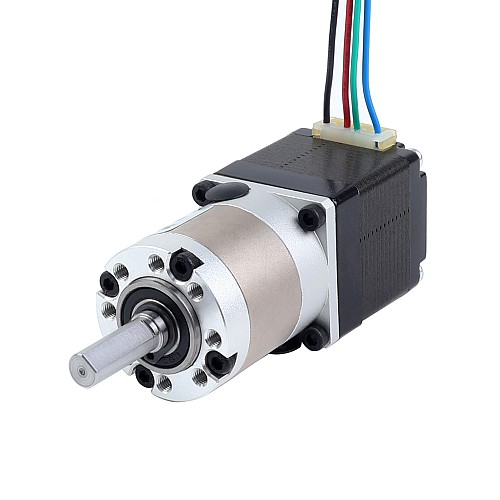

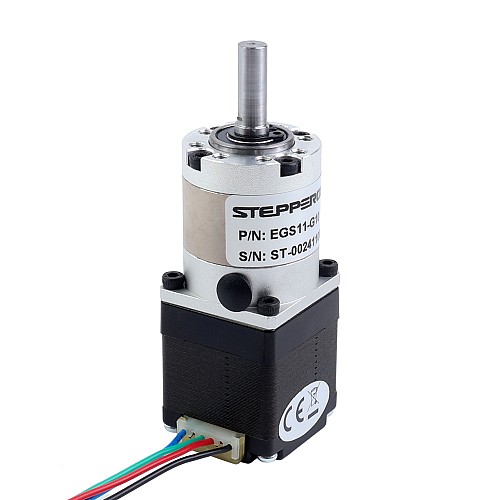

Name: Nema 11 Stepper Motor Bipolar L=33mm w/ Gear Ratio 10:1 EG Series Planetary Gearbox
Brand: STEPPERONLINE
SKU: 11HS12-0704S-EGS10
Price: 68.11 CAD
Availability: InStock

Nema 11 Stepper Motor Bipolar L=33mm w/ Gear Ratio 10:1 EG Series Planetary Gearbox

11HS12-0704S-EGS10

Output Shaft TypeD

Single Shaft/Dual ShaftSingle Shaft

Frame Size(mm)Nema 11 (28 x 28)

Product TypeGeared Stepper Motor

Question

Downloads

11HS12-0704S-EGS10_Full_Datasheet.pdfPDF · 180.34KB 11HS12-0704S-EGS10.STEPSTEP · 1.18MBLog in to download

Same series

Model	Output Shaft Type	Single Shaft/Dual Shaft	Frame Size(mm)	Product Type	Price	Stock
11HS12-0704S-EGS10	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$68.11	In stock
11HS12-0704S-EGS100	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$99.59	In stock
11HS12-0704S-EGS20	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$83.85	In stock
11HS12-0704S-EGS5	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$68.11	In stock
11HS12-0704S-EGS50	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$83.85	In stock
11HS20-0674S-EGS10	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$69.59	In stock
11HS20-0704S-EGS10	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$69.15	In stock
11HS20-0704S-EGS100	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$100.64	In stock
11HS20-0704S-EGS20	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$84.90	In stock
11HS20-0704S-EGS5	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$69.15	In stock
11HS20-0704S-EGS50	D	Single Shaft	Nema 11 (28 x 28)	Geared Stepper Motor	C$84.90	In stock

Nema 11 Stepper Motor Bipolar L=33mm w/ Gear Ratio 10:1 EG Series Planetary Gearbox

This Nema 11 stepper motor comes with a holding torque of 0.07Nm(9.91oz.in) and is equipped with a h... Read More

0 reviews • Write a review

from

C$68.11

5 + C$62.93

10 + C$58.49

50 + C$54.64

100 + C$51.26

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 11 stepper motor comes with a holding torque of 0.07Nm(9.91oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio of 10:1. Compared to the motors with PG series gearboxes, precision and accuracy of this motor with EG series gearbox has been significantly improved, with a maximum backlash of up to 15arcmin.
With its superior precision and reliability, motors with EG series delivers outstanding performance, making it the ideal choice for applications where accuracy, durability and value are critical.

Electrical Specification

Part Number: 11HS12-0704S-EGS10
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 0.07Nm(9.91oz.in)
Rated Current/phase: 0.70A
Phase Resistance: 5.30ohms±10%
Inductance: 3.70mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 10:1
Efficiency: 96%
Backlash at No-load:<=15arcmin
Maximum Permissible Torque: 1.00Nm(141.61oz.in)
Moment Permissible Torque: 2.00Nm(283.22oz.in)

Physical Specification

Frame Size: 28 x 28mm
Motor Length: 33mm
Gearbox Length: 33mm
Output Shaft Type: D-cut
Output Shaft Diameter: Φ6mm
Output Shaft Length: 20mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.7
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.07
Inductance(mH)	3.7
Phase Resistance(ohms)	5.3
Physical Specification
Backlash at No-load	<=15 arcmin
Frame Size(mm)	Nema 11 (28 x 28)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Type	Precision Planetary
IP Rating	40
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft

Also Bought

Quickview

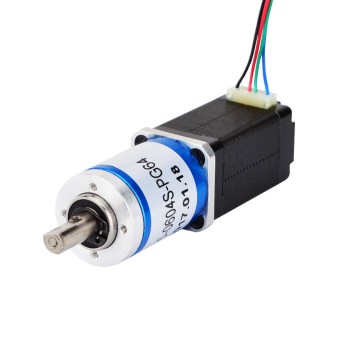

Nema 8 Stepper Motor Bipolar L=38mm w/ Gear Ratio 64:1 Planetary Gearbox

This Nema 8 stepper motor with 38mm body and 0.6A rated current, integrated a planetary gearbox of 64:1 gear ratio. It's a good solution to applicatio..

from

C$62.09

Add to Cart

Add to Wish List Compare this Product

Quickview

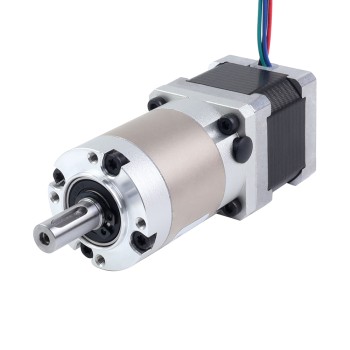

Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 15:1 EG Series Planetary Gearbox

This Nema 14 stepper motor comes with a holding torque of 0.18Nm(25.49oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio..

from

C$83.96

Add to Cart

Add to Wish List Compare this Product

Quickview

EG Series Planetary Gearbox Gear Ratio 10:1 Backlash 15arc-min for Nema 17 Stepper Motor

The size of this gearbox is 42 x 42mm and the input shaft diameter is 5mm. This high-precision planetary gearbox is belong to EG series gearbox, it wi..

from

C$42.43

Add to Cart

Add to Wish List Compare this Product

Quickview

Dual Shaft Nema 8 Bipolar 4Ncm(5.7oz.in) 0.6A 20x20x38mm 4 Wires

This dual shaft nema 8 stepper motors with step angle 1.8deg and size 20x20x38mm. It has 4 wires, each phase draws 0.6A, with holding torque 4Ncm(5.7o..

from

C$24.17

Add to Cart

Add to Wish List Compare this Product

Quickview

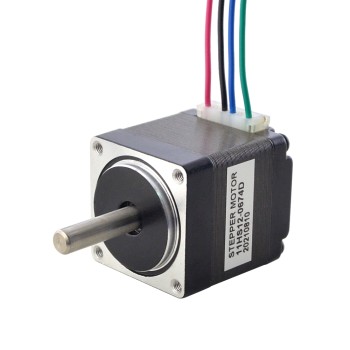

Dual Shaft Nema 11 Bipolar 1.8deg 7Ncm(9.91oz.in) 0.67A 28x28x31.5mm 4 Wires

This model is dual shaft Nema 11 Bipolar stepper motor,it with step angle 1.8deg and size 28x28x31.5mm. It has 4 wires, each phase draws 0.67A, with h..

from

C$15.14

Add to Cart

Add to Wish List Compare this Product

Quickview

Pre-order

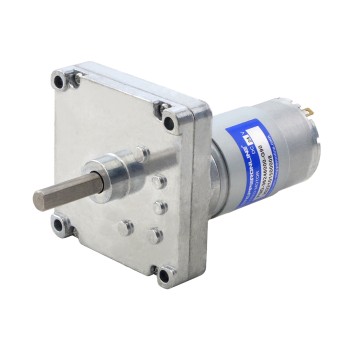

Brushed 24V DC Gear Motor 20Kg.cm/55RPM w/ 90:1 Rectangular Spur Gearbox

This is a standard 24 volt brushed DC gear motor, generating 20kg.cm of torque at 55rpm. It's a small, inexpensive motor suitable for low torque, high..

from

C$20.34

Add to Cart

Add to Wish List Compare this Product

Quickview

Pre-order

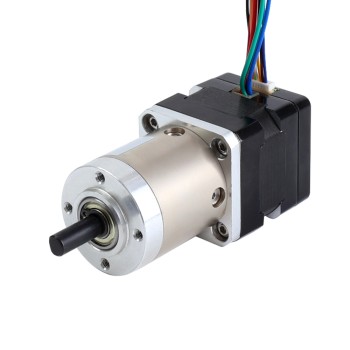

Nema 14 Closed Loop Stepper Motor L=28mm w/ Gear Raio 19:1 Planetary Gearbox for AR4 Kit
