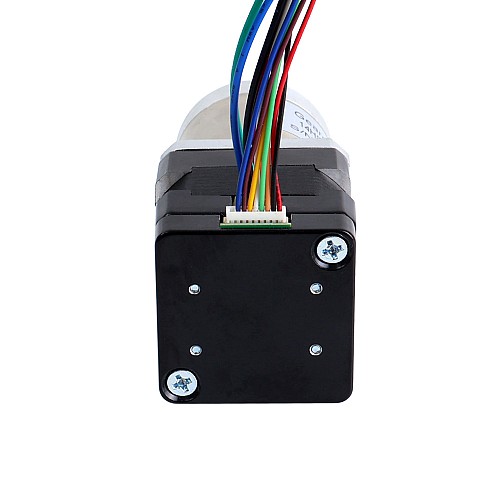

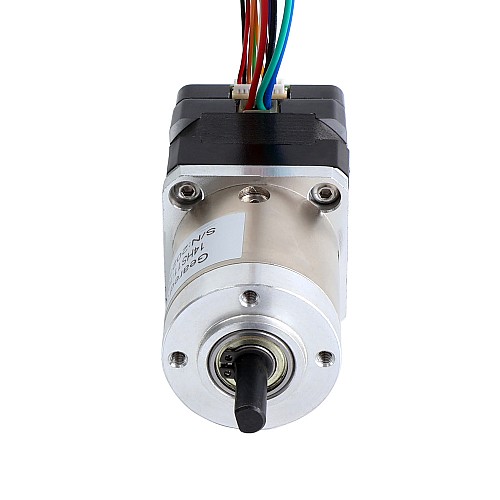

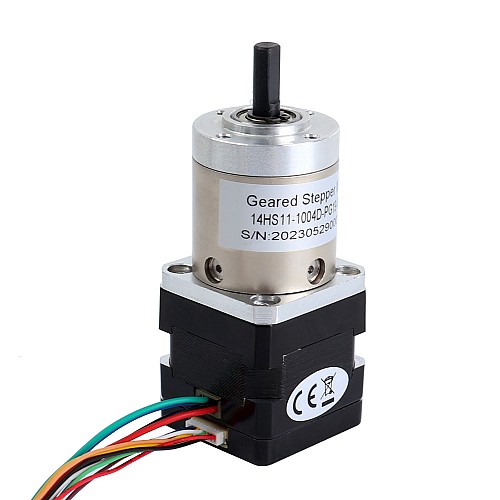

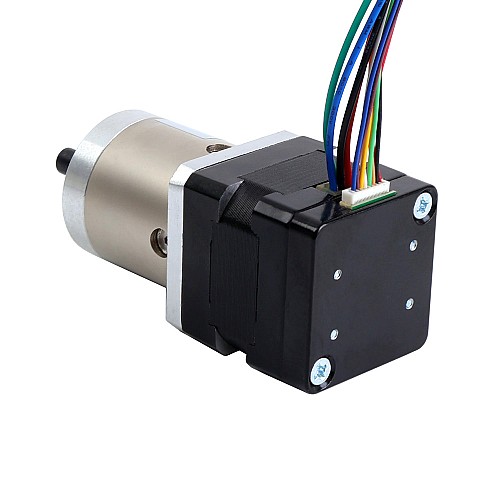

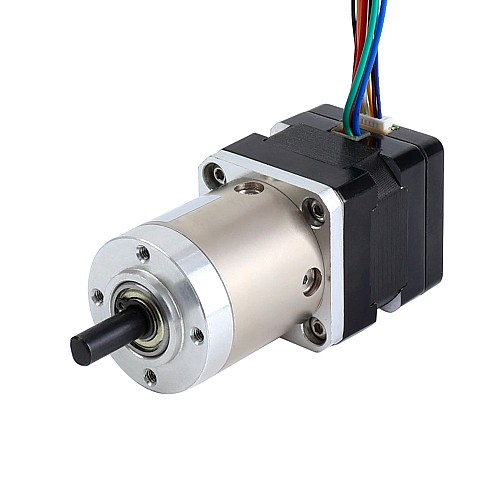

Nema 14 Closed Loop Stepper Motor L=28mm w/ Gear Raio 19:1 Planetary Gearbox for AR4 Kit

0 reviews - Write a review

C$79.96

5 + C$75.26

10 + C$71.08

50 + C$67.34

100 + C$63.97

In Stock: Pre-order
Model: 14HS11-1004D-PG19-AR4
Gross Weight: 0.36kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 20

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 14 motor is a closed-loop motor customized for AR4 robotic arm, equipped with a planetary gearbox with a gear ratio of 19:1 and a 1000ppr(4000cpr) magnetic incremental encoder.

Electrical Specification

Manufacturer Part Number: 14HS11-1004D-PG19-AR4
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8deg
Holding Torque without Gearbox: 0.125Nm(17.7oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.5ohms
Inductance: 3.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 19:1
Efficiency: 81%
Backlash at No-load: <=1deg
Max.Permissible Torque: 3Nm(424.92oz.in)
Moment Permissible Torque: 5Nm(708.2oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Encoder Specification

Output Circuit Type: Differential
Encoder Type: Magnetic Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 3channels
Supply Voltage Min: 3.3V
Supply Voltage Max: 5.5V
Output Current: 20mA
Output High Voltage: 5V
Output Low Voltage: 0.2V
Output Frequency Max: 400kHZ

Physical Specifications

Gearbox Type: Planetary
Frame Size: 35 x 35mm
Motor Length: 28mm
Gearbox Length: 35.8mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 0.294kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.0
Encoder Resolution	1000PPR
Encoder Type	Magnetic Incremental
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.125
Holding Torque(oz.in)	17.7
Inductance(mH)	3.5
Output Circuit Type	Differential
Output Signal Channels	3
Phase Resistance(ohms)	3.5
Stepper Motor with	Encoder/Gearbox
Physical Specification
Backlash at No-load	<=1deg
Body Length(mm)	63.8
Frame Size(mm)	Nema 14 (35 x 35)
Gear Ratio(xx:1)	19
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	294
