Dual Shaft Nema 11 Bipolar 1.8deg 7Ncm(9.91oz.in) 0.67A 28x28x31.5mm 4 Wires

1 reviews - Write a review

C$15.45

5 + C$14.73

10 + C$14.06

50 + C$13.45

100 + C$12.89

In Stock: 10000
Model: 11HS12-0674D
Gross Weight: 0.25kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

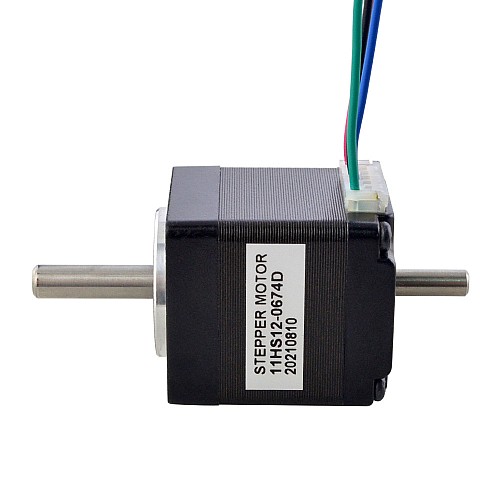

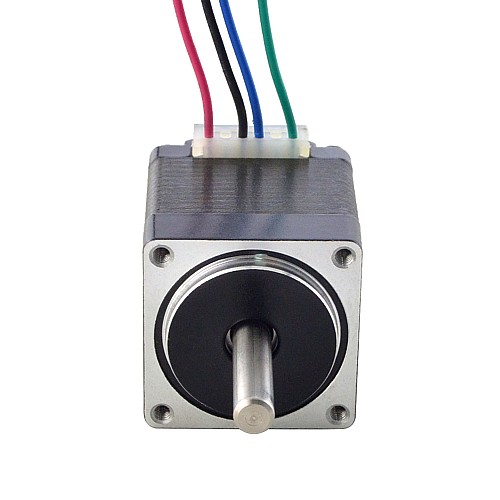

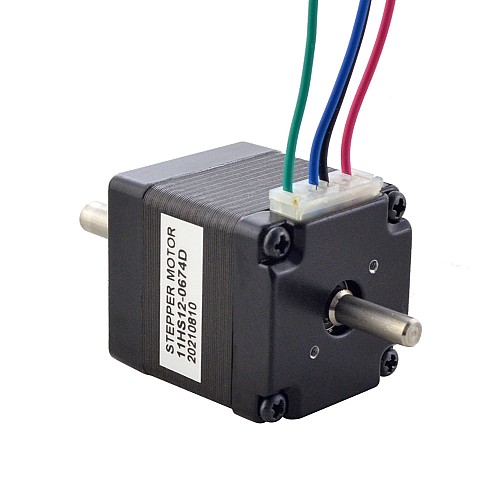

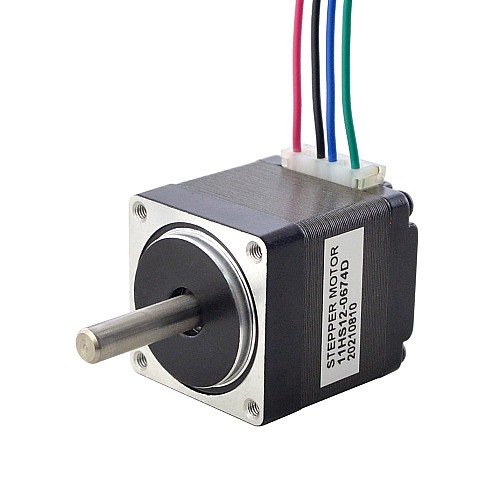

This model is dual shaft Nema 11 Bipolar stepper motor,it with step angle 1.8deg and size 28x28x31.5mm. It has 4 wires, each phase draws 0.67A at 3.75V, with holding torque 7Ncm(9.91oz.in).

Electrical Specification

Manufacturer Part Number: 11HS12-0674D
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 7Ncm(9.91oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 5.6ohms
Inductance: 4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 28 x 28mm
Body Length: 31.5mm
Shaft Diameter: Φ5mm
Front Shaft Length: 20mm
Rear Shaft Diameter:4mm
Rear Shaft Length:12mm
Number of Leads: 4
Cable Length: 300mm
Weight: 110g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	7
Holding Torque(oz.in)	9.91
Inductance(mH)	4
Phase Resistance(ohms)	5.6
Rated Current(A)	0.67
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	31.5
Cable Length(mm)	300
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	110
