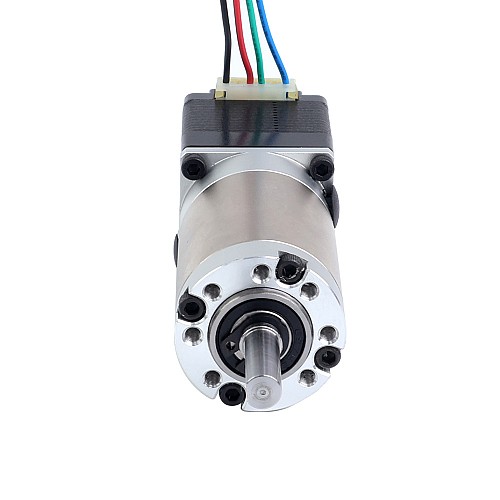

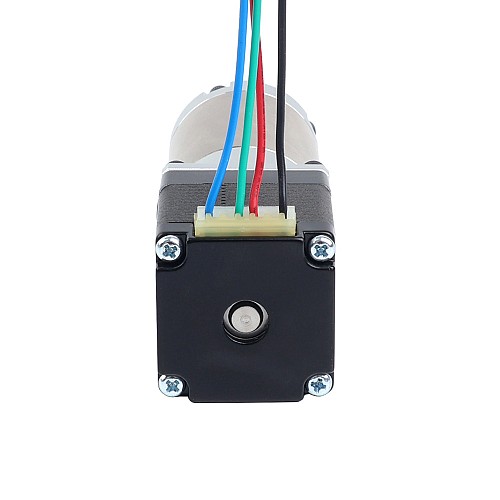

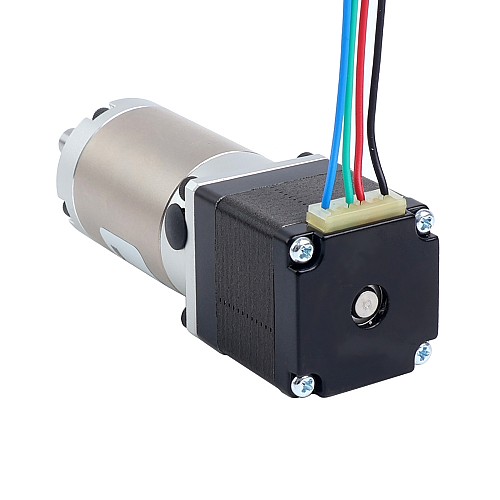

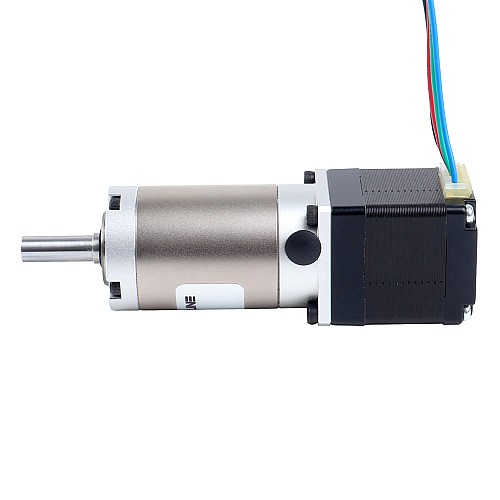

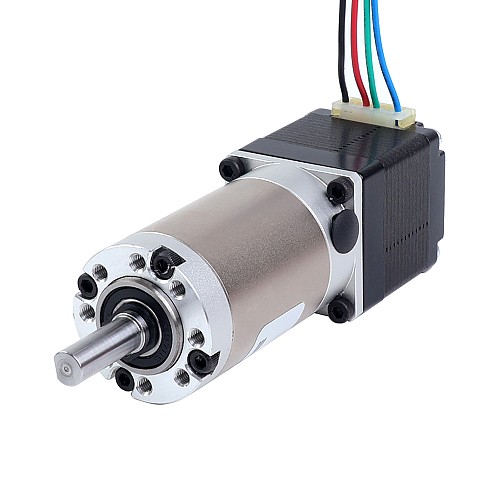

Nema 11 Stepper Motor Bipolar L=33mm w/ Gear Ratio 100:1 EG Series Planetary Gearbox

0 reviews - Write a review

C$101.65

5 + C$93.94

10 + C$87.31

50 + C$81.55

100 + C$76.50

In Stock: 10000
Model: 11HS12-0704S-EGS100
Gross Weight: 0.34kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 11 stepper motor comes with a holding torque of 0.07Nm(9.91oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio of 100:1. Compared to the motors with PG series gearboxes, precision and accuracy of this motor with EG series gearbox has been significantly improved, with a maximum backlash of up to 25arcmin.
With its superior precision and reliability, motors with EG series delivers outstanding performance, making it the ideal choice for applications where accuracy, durability and value are critical.

Electrical Specification

Part Number: 11HS12-0704S-EGS100
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 0.07Nm(9.91oz.in)
Rated Current/phase: 0.70A
Phase Resistance: 5.30ohms±10%
Inductance: 3.70mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 100:1
Efficiency: 90%
Backlash at No-load:<=25arcmin
Maximum Permissible Torque: 6.00Nm(849.67oz.in)
Moment Permissible Torque: 12.00Nm(1699.34oz.in)

Physical Specification

Frame Size: 28 x 28mm
Motor Length: 33mm
Gearbox Length: 49mm
Output Shaft Type: D-cut
Output Shaft Diameter: Φ6mm
Output Shaft Length: 20mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.7
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.07
Inductance(mH)	3.7
Phase Resistance(ohms)	5.3
Physical Specification
Backlash at No-load	<=25arcmin
Frame Size(mm)	Nema 11 (28 x 28)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	100
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
