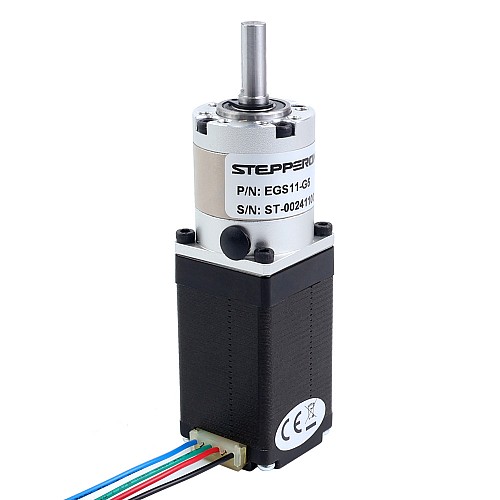

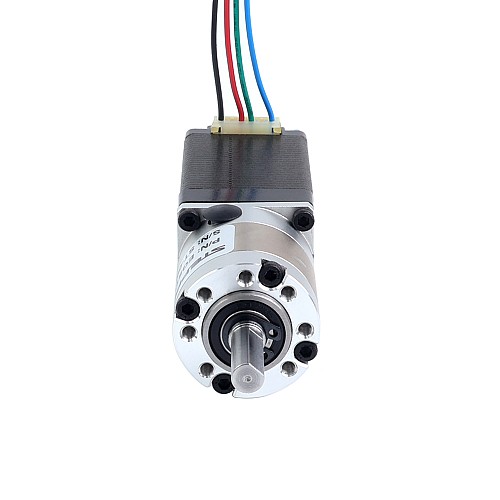

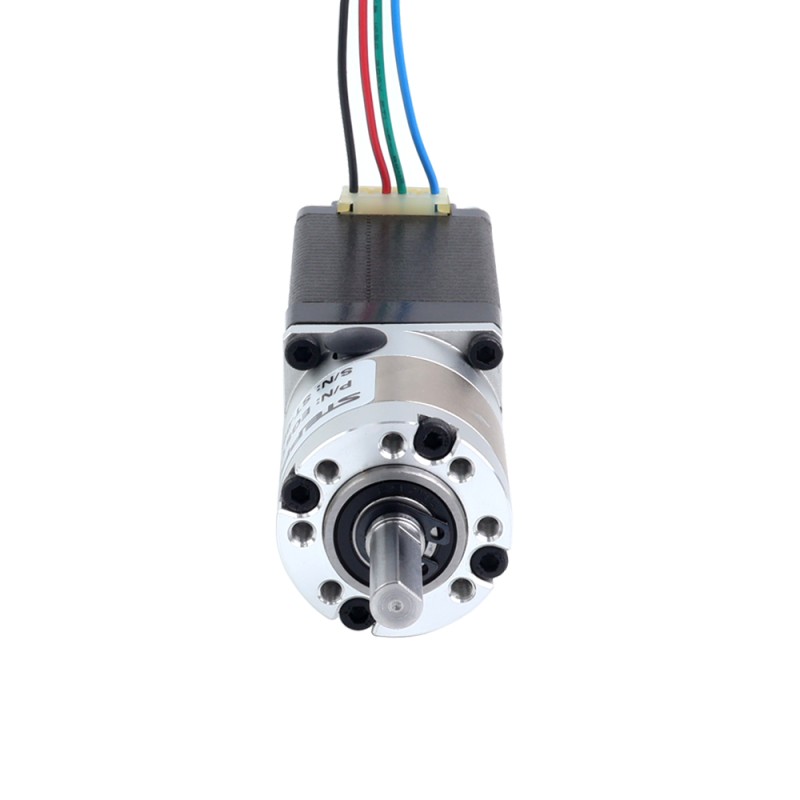

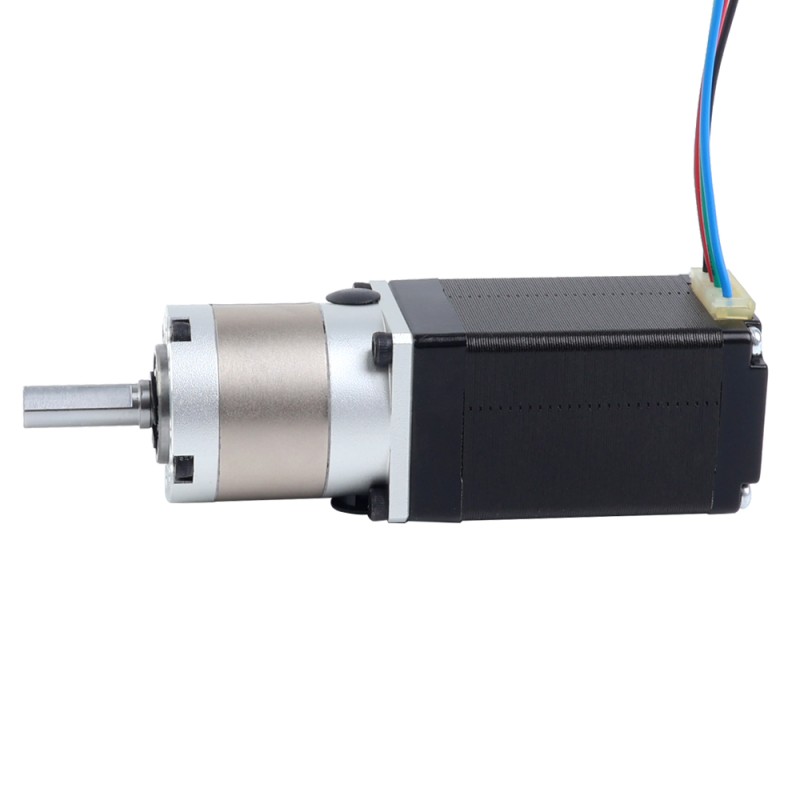

This Nema 11 stepper motor comes with a holding torque of 0.12Nm(16.99oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio of 5:1. Compared to the motors with PG series gearboxes, precision and accuracy of this motor with EG series gearbox has been significantly improved, with a maximum backlash of up to 15arcmin.
With its superior precision and reliability, motors with EG series delivers outstanding performance, making it the ideal choice for applications where accuracy, durability and value are critical.

Electrical Specification

  • Part Number: 11HS20-0704S-EGS5
  • Motor Type: Bipolar Stepper
  • Holding Torque without Gearbox: 0.12Nm(16.99oz.in)
  • Rated Current/phase: 0.70A
  • Phase Resistance: 8.00ohms±10%
  • Inductance: 5.270mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specifications

  • Gearbox Type: Spur Planetary
  • Gear Material: Alloy Steel
  • Gear Ratio: 5:1
  • Efficiency: 96%
  • Backlash at No-load:<=15arcmin
  • Maximum Permissible Torque: 2.00Nm(283.22oz.in)
  • Moment Permissible Torque: 4.00Nm(566.45oz.in)

Physical Specification

  • Frame Size: 28 x 28mm
  • Motor Length: 51mm
  • Gearbox Length: 33mm
  • Output Shaft Type: D-cut
  • Output Shaft Diameter: Φ6mm
  • Output Shaft Length: 20mm

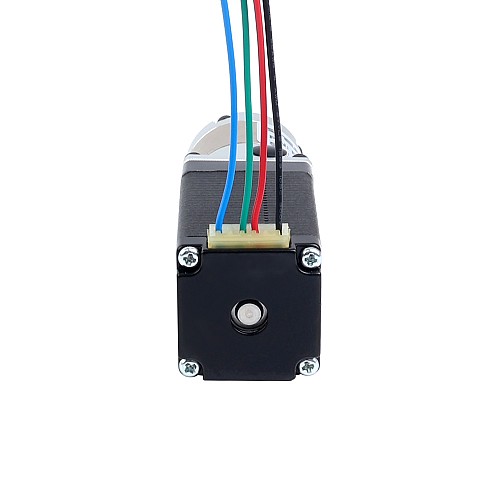

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Current(A) 0.7
Has Torque/Thrust Curve? No
Holding Torque w/o Gearbox(N.m) 0.12
Inductance(mH) 5.2
Phase Resistance(ohms) 8.0
Physical Specification
Backlash at No-load <=15 arcmin
Frame Size(mm) Nema 11 (28 x 28)
Gear Material Alloy Steel
Gear Ratio(xx:1) 5
Gearbox Type Precision Planetary
IP Rating 40
Output Shaft Type D
Shaft Diameter(mm) 6
Shaft Length(mm) 20
Single Shaft/Dual Shaft Single Shaft

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Nema 23 Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm 4 Wires
Nema 23 Bipolar 1.8deg 1.16Nm(164.3oz.in) 1.5A 57x57x56mm 4 Wires
This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x56mm. It has 4 wires, each phase draws 1.5A, with holding torque 1.16Nm(164.3..
from
C$19.39
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 11 Stepper Motor Bipolar L=33mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=33mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox
This Nema 11 stepper motor comes with a holding torque of 0.07Nm(9.91oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio ..
from
C$68.11
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox
Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox
This Nema 14 stepper motor comes with a holding torque of 0.40Nm(56.64oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio..
from
C$68.74
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Stepper Driver 0.3-2.2A 10-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 0.3-2.2A 10-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor
This is a digital stepper drive implemented with advanced stepper control technology. It is easy to use and it can be used to drive 2-phase and 4-phas..
from
C$19.94
Add to Cart
Add to Wish List Compare this Product
Quickview
Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 5:1 Planetary Gearbox
Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 5:1 Planetary Gearbox
This Nema 11 single shaft stepper motor with 51mm body and 0.67A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solut..
from
C$51.49
Add to Cart
Add to Wish List Compare this Product
Quickview

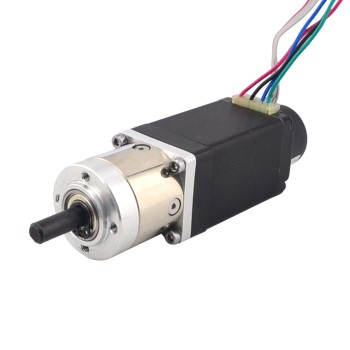

Nema 11 Closed-loop Geared Stepper L=51mm Gear Raio 5:1 Encoder 300PPR
Nema 11 Closed-loop Geared Stepper L=51mm Gear Raio 5:1 Encoder 300PPR
Motor Specification Manufacturer Part Number: 11HS20-0674D-PG5-E22-300 Motor Type: Bipolar Stepper Step Angle without Gearbox: 1.8deg Holding To..
from
C$93.96
Add to Cart
Add to Wish List Compare this Product
Quickview

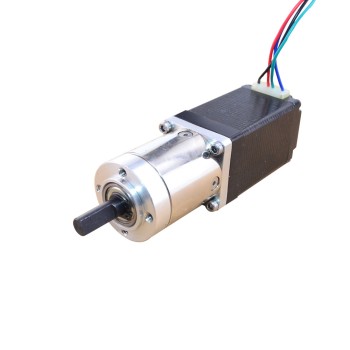

CN On Sale - Nema 11 Stepper Motor 0.71A Bipolar L=51mm w/ Gear Ratio 14:1 Planetary Gearbox
CN On Sale - Nema 11 Stepper Motor 0.71A Bipolar L=51mm w/ Gear Ratio 14:1 Planetary Gearbox
This Nema 11 stepper motor with 51mm body and 0.71A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's a good solution to appli..
from Save -31%
C$35.76 C$51.49
Add to Cart
Add to Wish List Compare this Product
Quickview

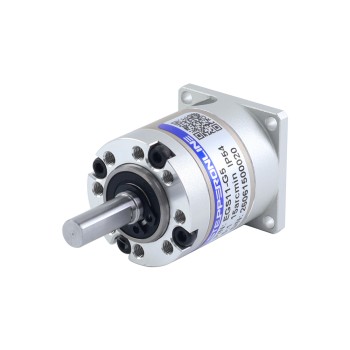

EG Series Planetary Gearbox Gear Ratio 5:1 Backlash 15arc-min for Nema 11 Stepper Motor
