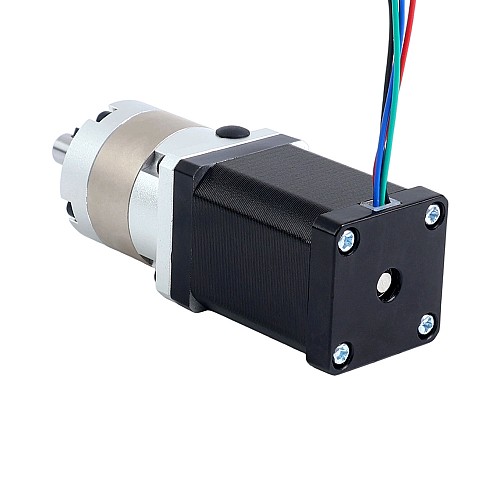

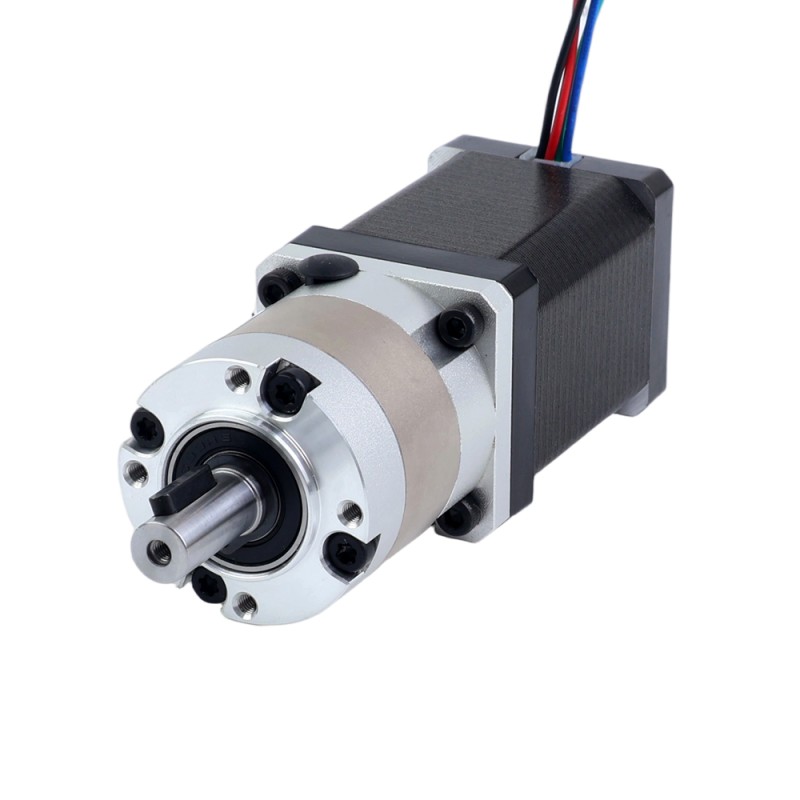

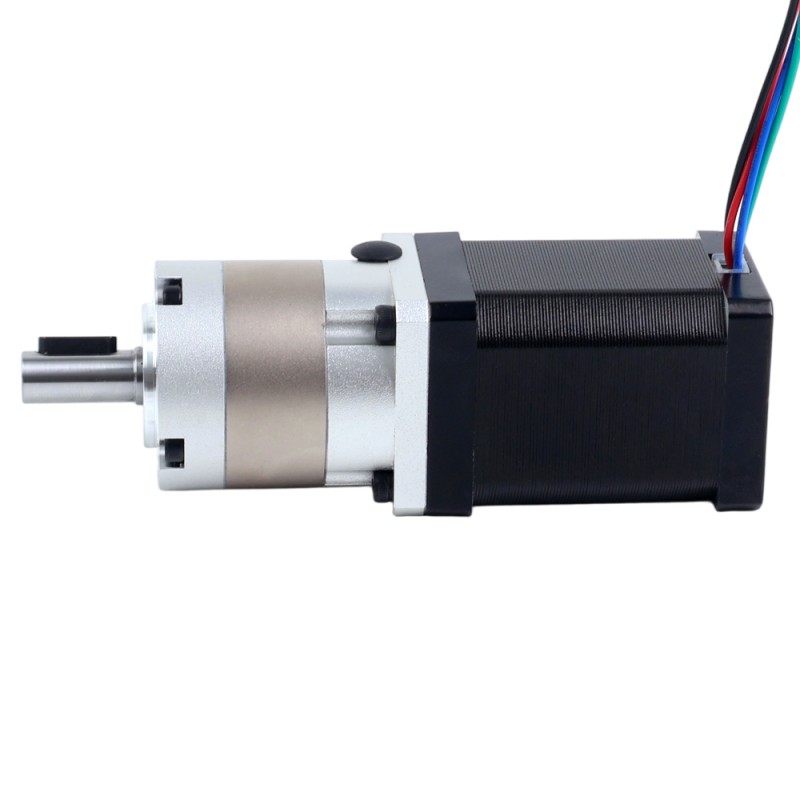

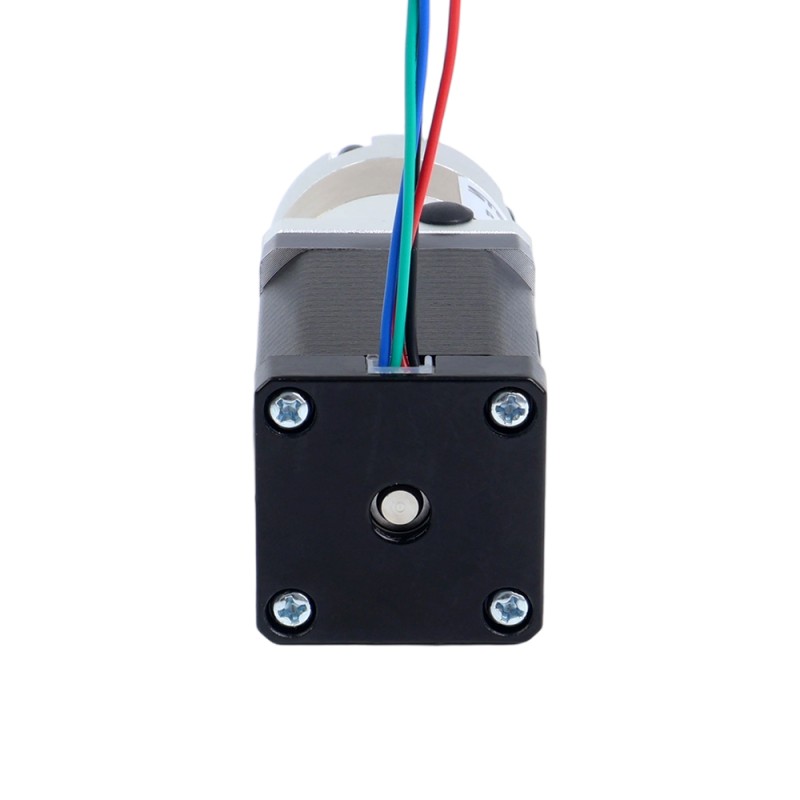

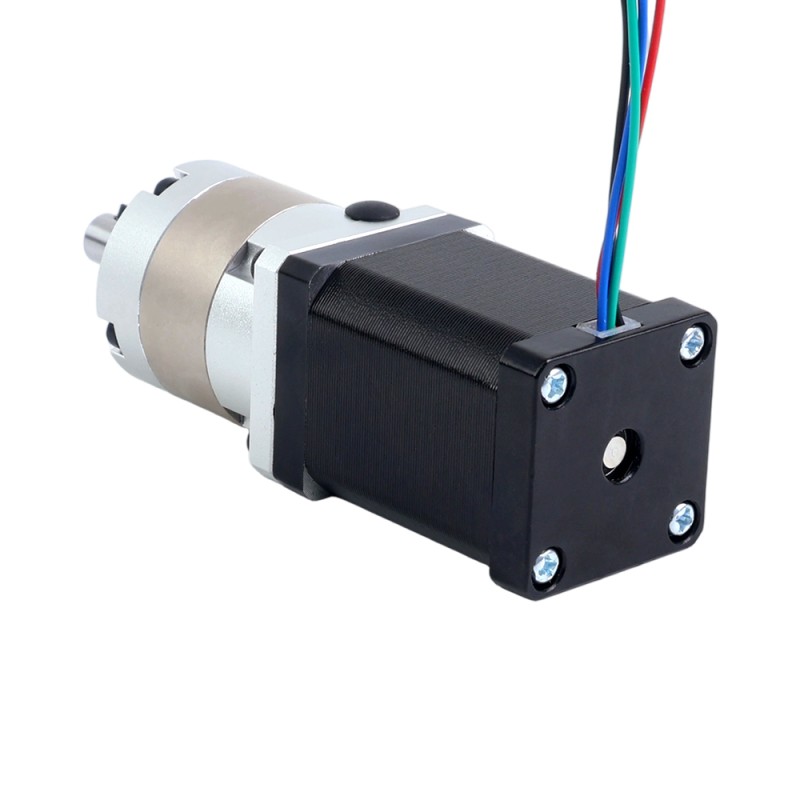

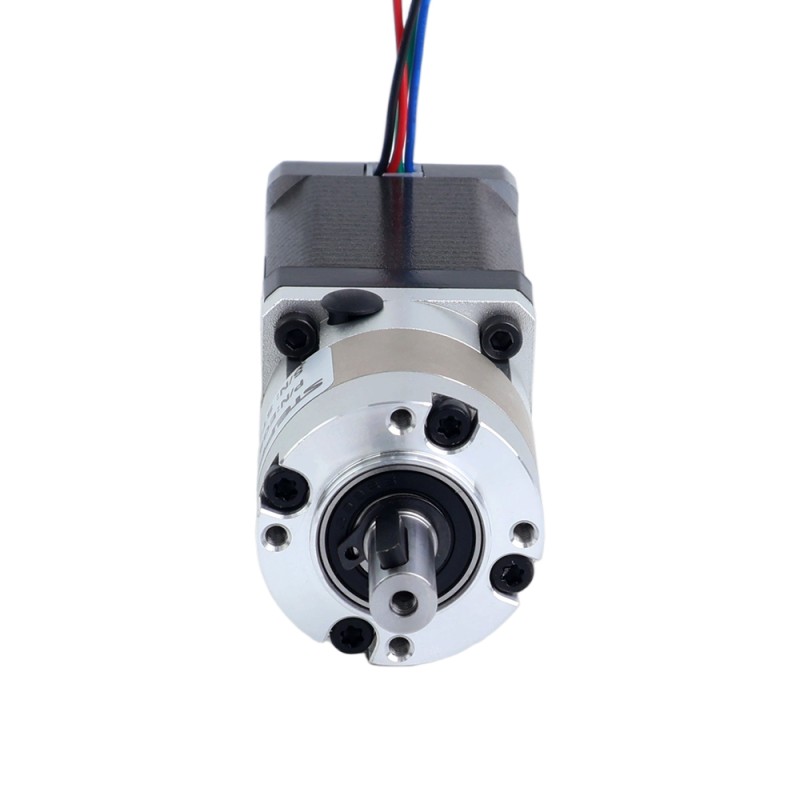

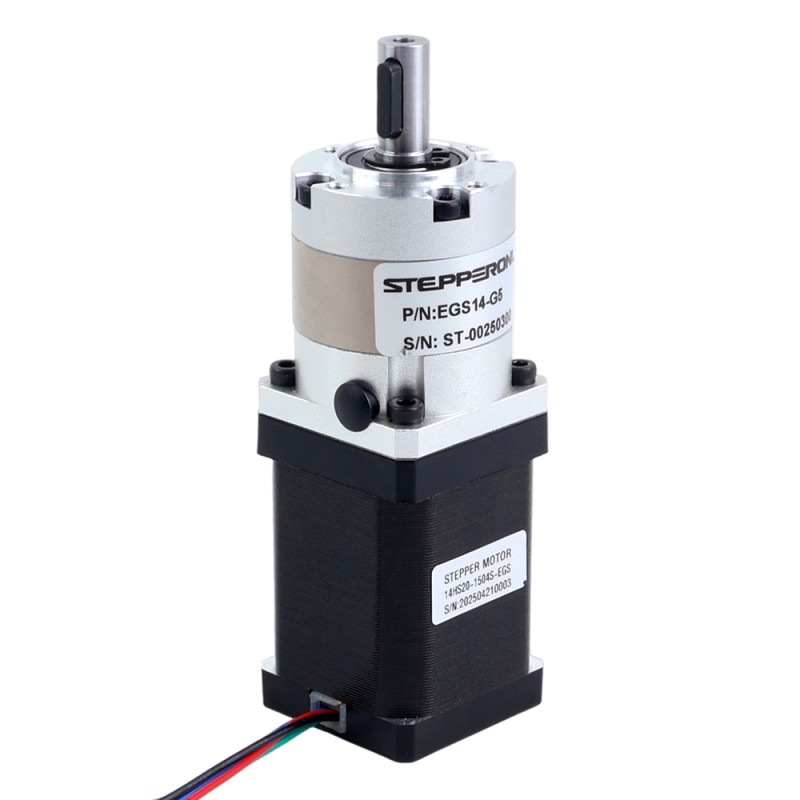

Nema 14 Stepper Motor Bipolar L=52mm w/ Gear Ratio 5:1 EG Series Planetary Gearbox

0 reviews - Write a review

C$70.17

5 + C$64.82

10 + C$60.25

50 + C$56.28

100 + C$52.81

In Stock: 10000
Model: 14HS20-1504S-EGS5
Gross Weight: 0.57kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 10

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This Nema 14 stepper motor comes with a holding torque of 0.40Nm(56.64oz.in) and is equipped with a high-precision EG series gearbox with a gear ratio of 5:1. Compared to the motors with PG series gearboxes, precision and accuracy of this motor with EG series gearbox has been significantly improved, with a maximum backlash of up to 15arcmin.
With its superior precision and reliability, motors with EG series delivers outstanding performance, making it the ideal choice for applications where accuracy, durability and value are critical.

Electrical Specification

Part Number: 14HS20-1504S-EGS5
Motor Type: Bipolar Stepper
Holding Torque without Gearbox: 0.40Nm(56.64oz.in)
Rated Current/phase: 1.50A
Phase Resistance: 2.80ohms±10%
Inductance: 4.80mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specification

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 5:1
Efficiency: 96%
Backlash at No-load: <=15arcmin
Maximum Permissible Torque: 6.50Nm(920.48oz.in)
Moment Permissible Torque: 13.00Nm(1840.95oz.in)

Physical Specification

Frame Size: 35 x 35mm
Motor Length: 52mm
Gearbox Length: 40mm
Output Shaft Type: Keyway
Output Shaft Diameter: Φ8mm
Output Shaft Length: 20mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.5
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.40
Inductance(mH)	4.8
Phase Resistance(ohms)	2.8
Physical Specification
Backlash at No-load	<=15arcmin
Body Length(mm)	92
Frame Size(mm)	Nema 14 (35 x 35)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	5
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
