Nema 11 Stepper Motor Bipolar L=51mm w/ Gear Ratio 50:1 EG Series Planetary Gearbox
€57.38
5 + €53.02
10 + €49.27
50 + €46.03
100 + €43.18
  • In Stock: 10000
  • Model: 11HS20-0704S-EGS50
  • Gross Weight: 0.39kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 9

Click country for real-time stock

Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

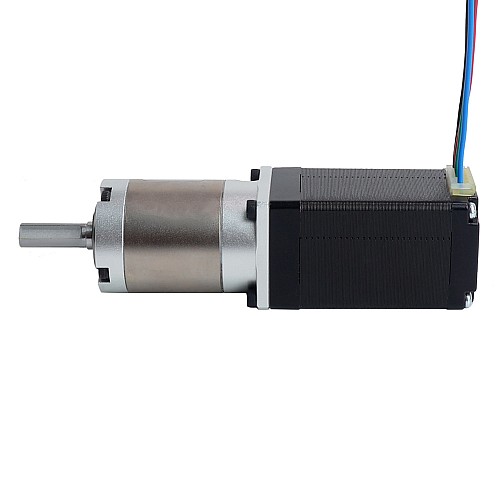

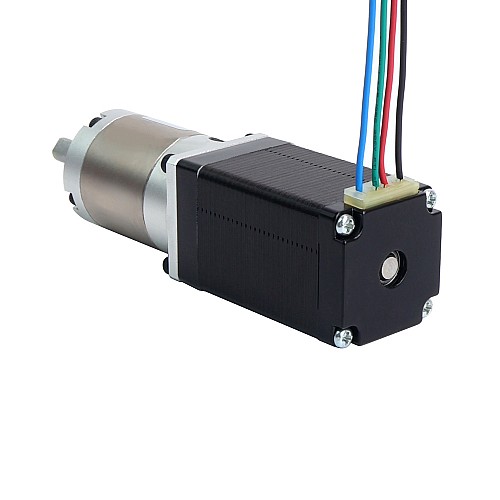

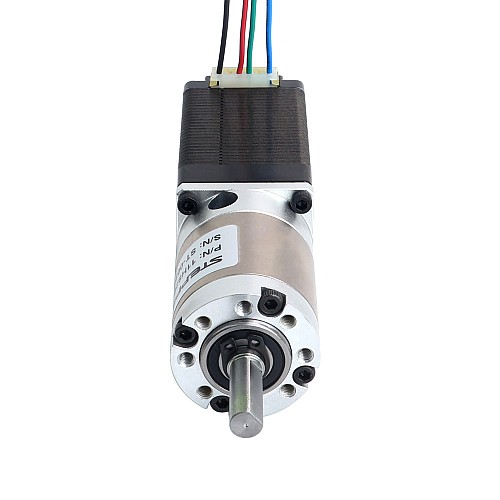

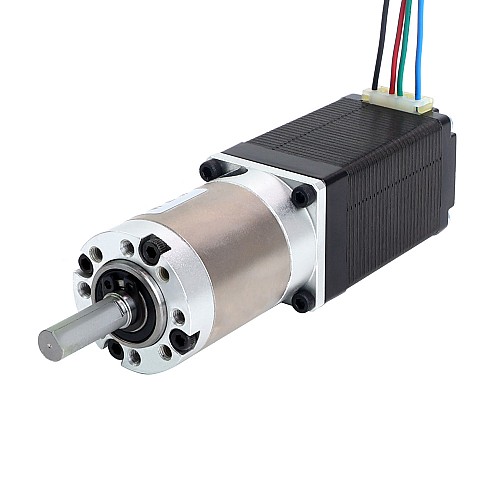

This Nema 11 stepper motor with a holding torque of 12Ncm(16.99oz.in) is equipped with a high-precision planetary gearbox. It has a gear ratio of 50:1 and a maximum backlash of 20arc-min. It is a good solution for applications that require high accuracy and reliability at an exceptional value.

Electrical Specification

  • Part Number: 11HS20-0704S-EGS50
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque Without Gearbox: 12Ncm(16.99oz.in)
  • Rated Current/phase: 0.70A
  • Phase Resistance: 8.0ohms
  • Inductance: 5.2mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Gearbox Specifications

  • Gearbox Type: Spur Planetary
  • Gear Material: Alloy Steel
  • Gear Ratio: 50:1
  • Efficiency: 94%
  • Backlash at No-load: <=20arcmin
  • Max.Permissible Torque: 3Nm(26.55lb-in)
  • Moment Permissible Torque: 6Nm(53.1lb-in)
  • Noise: <=55dB
  • Lifetime: 20000hours

Physical Specifications

  • Frame Size: 28 x 28mm
  • Motor Length: 51mm
  • Gearbox Length: 41mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 20mm
  • D-cut length: 15mm
  • Number of Wires: 4
  • Wire Length: 500mm
  • Weight: 0.33kg

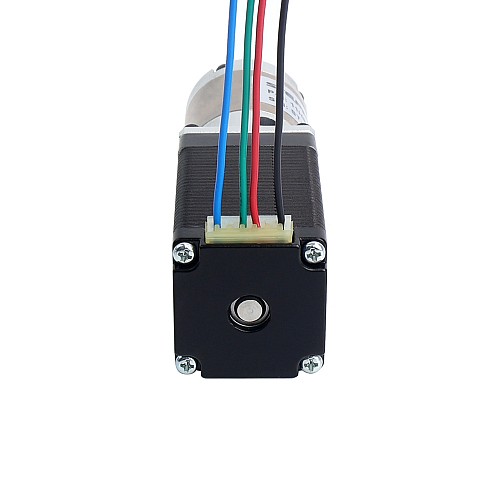

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Current(A) 0.70
Has Torque/Thrust Curve? No
Holding Torque w/o Gearbox(N.m) 0.12
Inductance(mH) 5.2
Phase Resistance(ohms) 8.0
Physical Specification
Backlash at No-load <=20arcmin
Frame Size(mm) Nema 11 (28 x 28)
Gear Material Alloy Steel
Gear Ratio(xx:1) 50
Gearbox Type Precision Planetary
Inventory Method Dedicated Inventory
IP Rating 40
Output Shaft Type D
Shaft Diameter(mm) 6
Shaft Length(mm) 20
Single Shaft/Dual Shaft Single Shaft


File Size
11HS20-0704S-EGS50_Full_Datasheet.pdf 185.08KB Download
