Nema 14 External 48mm Stack 0.91A Lead 2.4384mm(0.096") Length 250mm
The motor part is 48mm body 1.8 degree 0.91A Nema 14 stepper motor, and it has integrated with a 5.5... Read More
0 reviews • Write a review
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

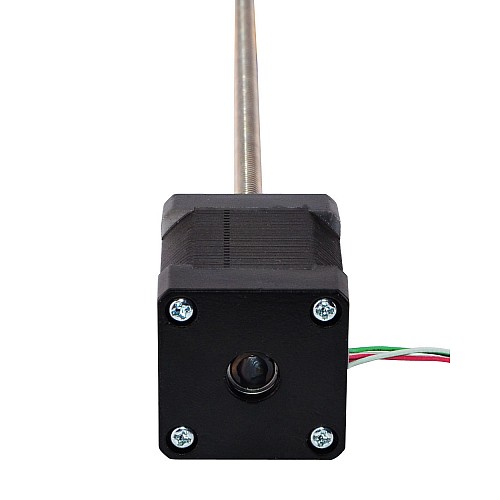

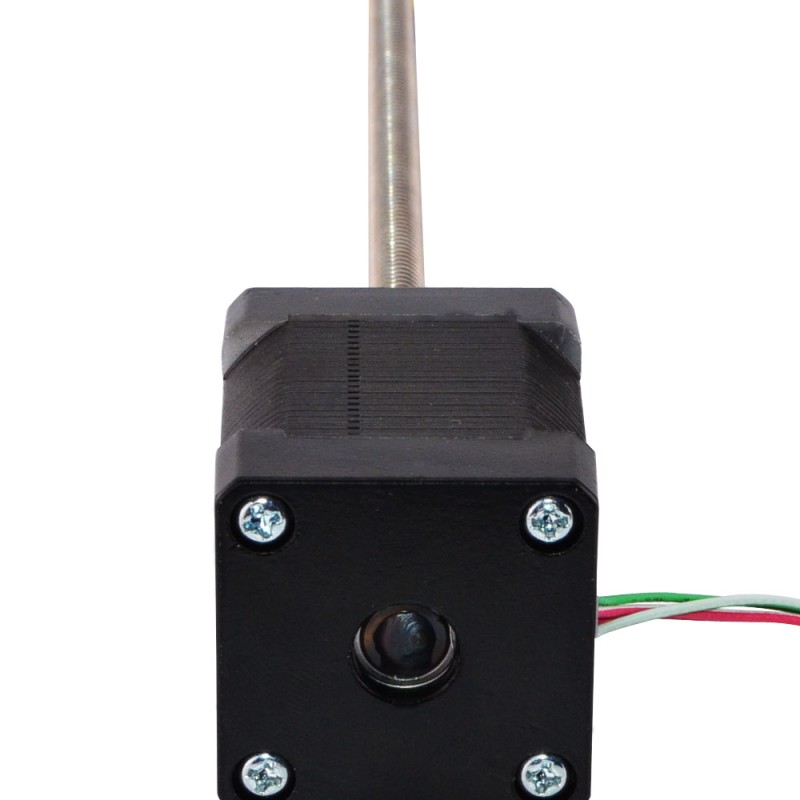

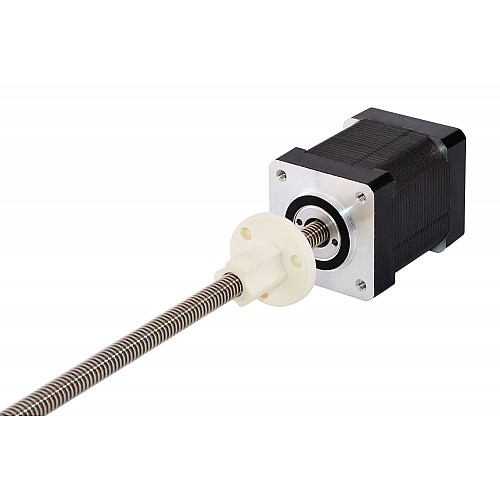

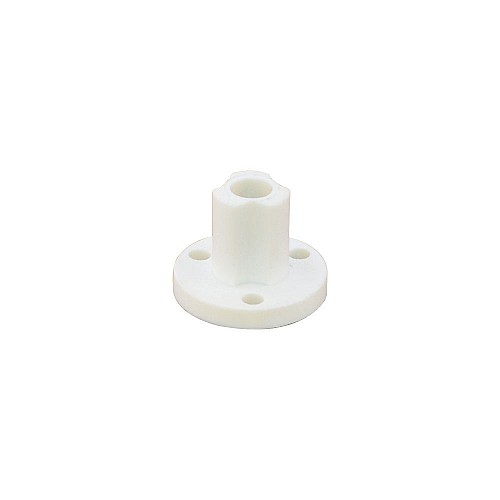

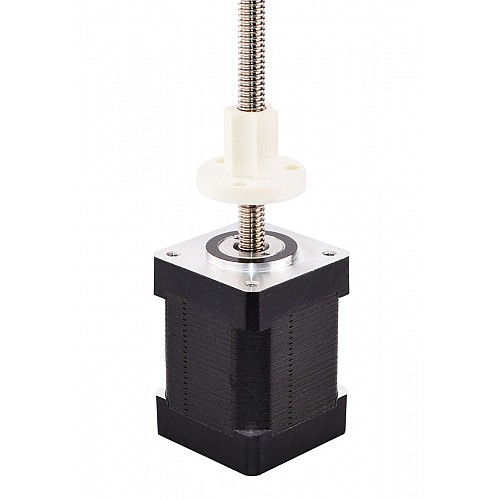

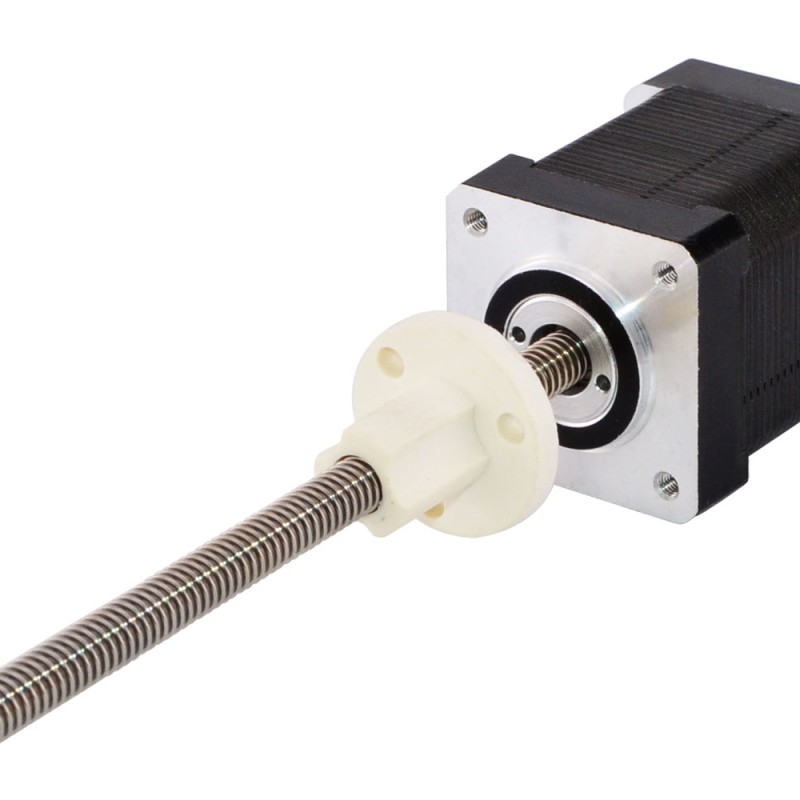

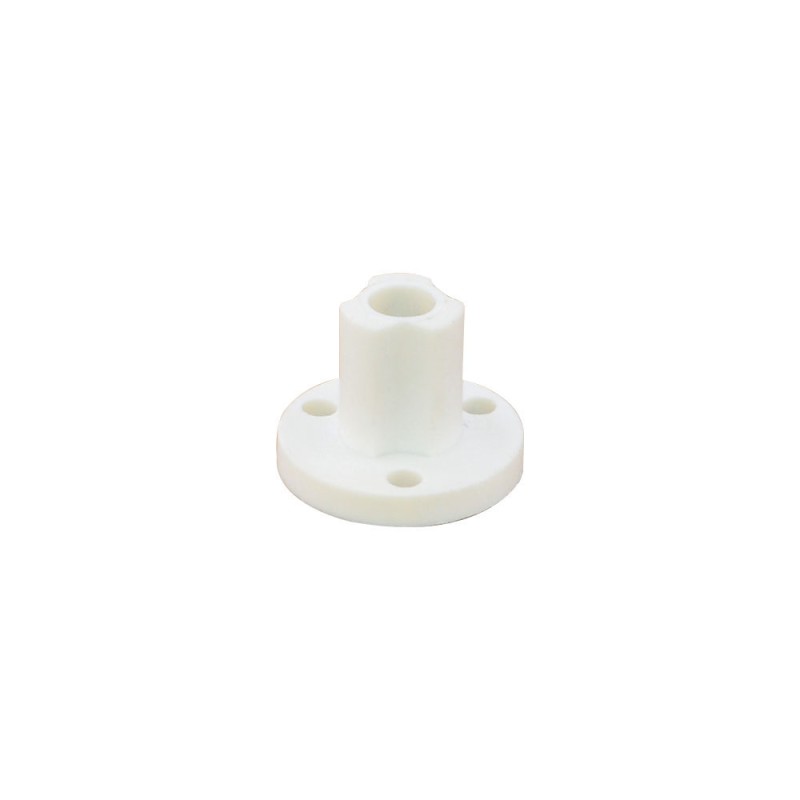

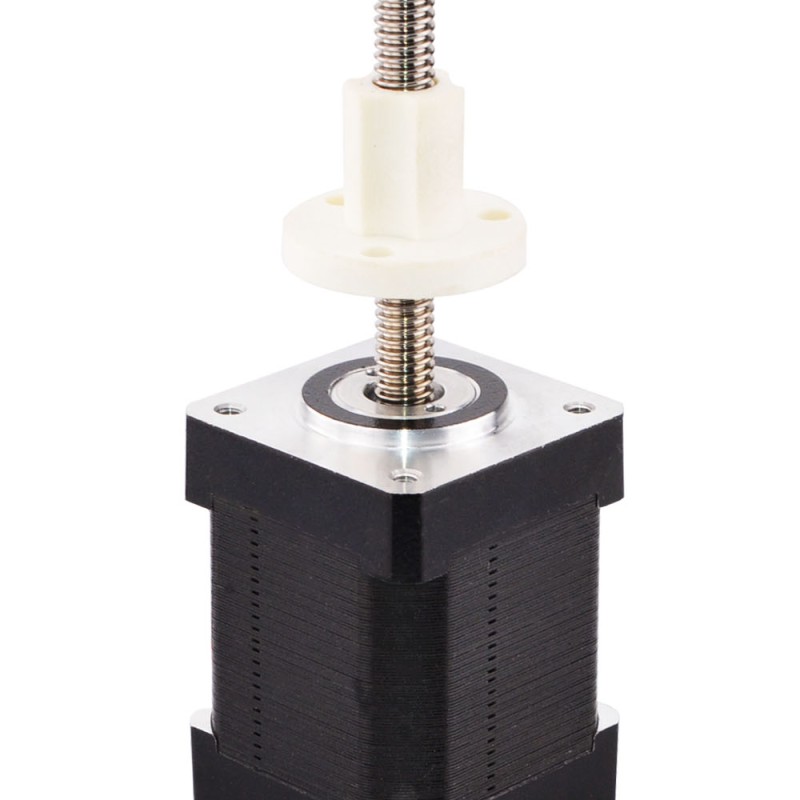

The motor part is 48mm body 1.8 degree 0.91A Nema 14 stepper motor, and it has integrated with a 5.54mm(0.2181") diameter 250mm(9.8425") length lead screw and a POM screw nut, the linear travel is 2.438mm(0.096") per revolution. This model is almost exactly same as Haydon Kerk 35000 series size 14 double stack external stepper motor linear actuator.

Electrical Specification

  • Manufacturer Part Number: 14E17S0914JE3-250RS(14E17S0914JE-250RS)
  • Motor Type: External Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 189N(300pps)
  • Rated Current/phase: 0.91A
  • Phase Resistance: 5.5ohms
  • Inductance: 7.63mH±20%(1KHz)

Physical Specification

  • Frame Size: 35 x 35mm
  • Body Length: 48mm
  • Lead Screw Length: 250mm(9.8425")

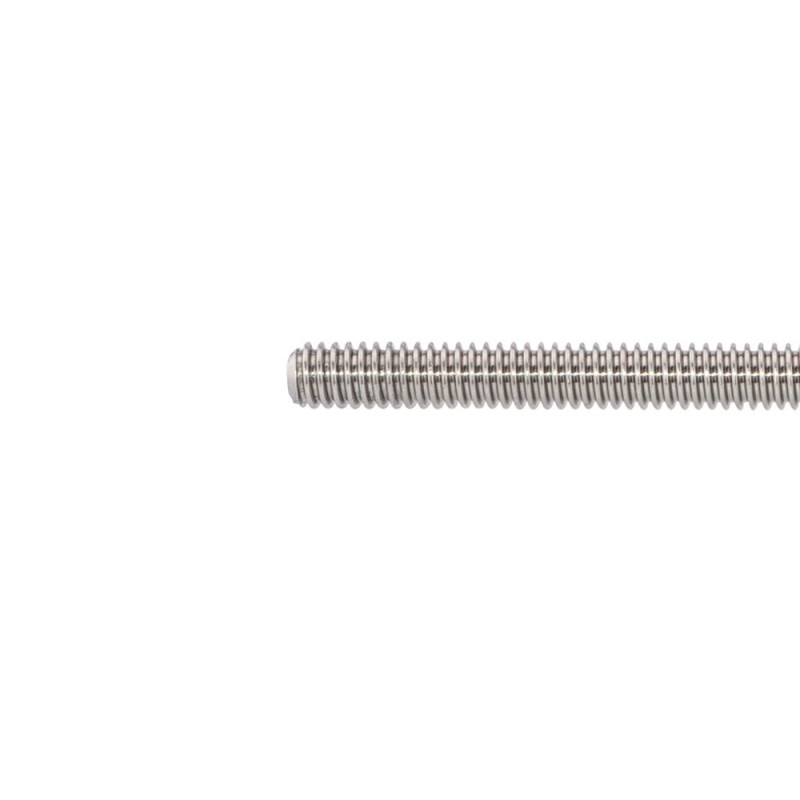

  • Lead Screw Diameter: Φ5.54mm(0.2181")
  • Lead/Step: 0.012192mm(0.00048")
  • Lead Travel/Revolution: 2.438mm(0.096")
  • Number of Leads: 4
  • Cable Length: 300mm
  • Weight : 240g

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green
Product Type
Product Type Linear Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? No
Inductance(mH) 7.63
Minimal Thrust(N) @300pps 189
Phase Resistance(ohms) 5.5
Rated Current(A) 0.91
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 48
Frame Size(mm) Nema 14 (35 x 35)
Lead Length(mm) 300
Lead Screw Diameter(mm) 5.54
Lead Screw Length(mm) 250
Lead Travel/Revolution(mm) 2.4384
Lead Travel/Step(mm) 0.012192
Linear Motor Type External(Acme)
No. of Lead 4
With Encoder No
