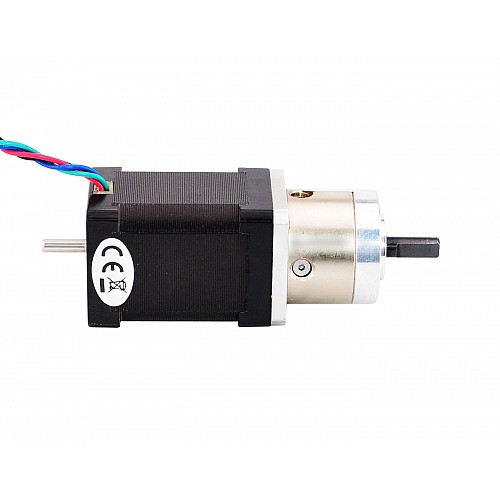

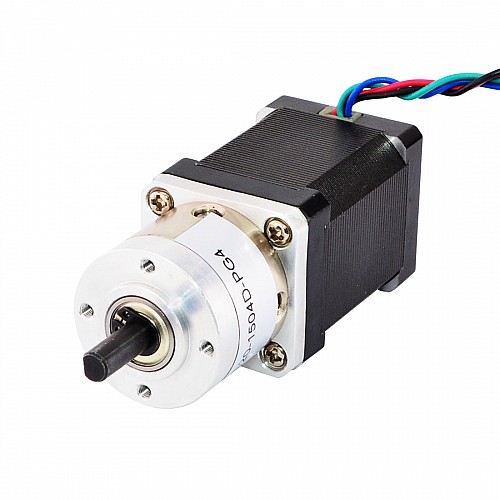

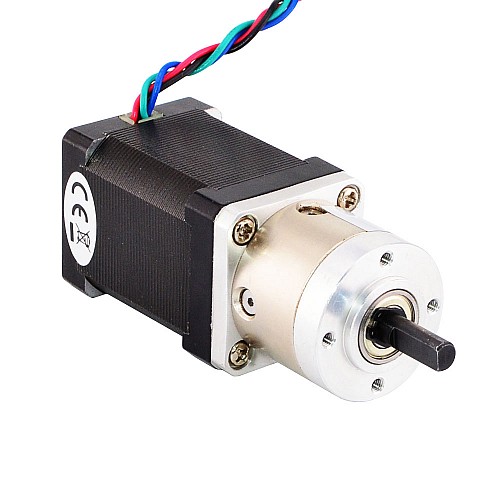

Nema 14 Stepper L=52mm w/ Rear Shaft & Gear Ratio 4:1 Planetary Gearbox

1 reviews - Write a review

C$59.19

5 + C$56.11

10 + C$53.34

50 + C$50.82

100 + C$48.54

In Stock: 10000
Model: 14HS20-1504D-PG4
Gross Weight: 0.45kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 31

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This Nema 14 stepper motor with 52mm body and 1.5A rated current, integrated a planetary gearbox of 3.71:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 14HS20-1504D-PG4
Motor Type: Bipolar Stepper
Step Angle: 0.49deg
Holding Torque without Gearbox: 40Ncm(56.6oz.in)
Rated Current/phase: 1.5A
Phase Resistance: 2.8ohms
Inductance: 3.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 3.71:1
Efficiency: 90%
Backlash at No-load: <=3deg
Max.Permissible Torque: 3Nm(424.83oz.in)
Moment Permissible Torque: 5Nm(708.06oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Physical Specifications

Frame Size: 35 x 35mm
Motor Length: 52mm
Gearbox Length: 29.2mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm

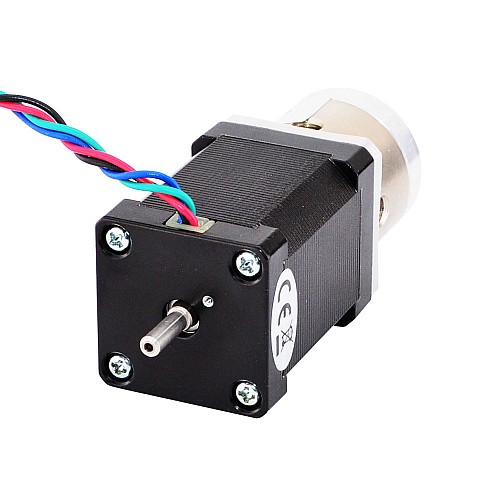

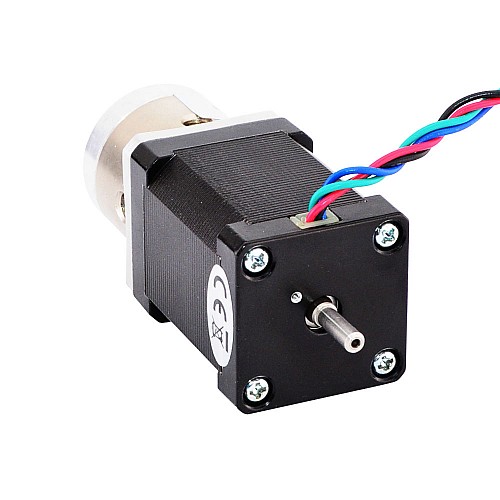

Rear Shaft Diameter: Φ4mm
Rear Shaft Length: 13mm
Number of Leads: 4
Lead Length: 400mm
Weight: 400g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.5
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	0.40
Inductance(mH)	3.8
Phase Resistance(ohms)	2.8
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	81.2
Frame Size(mm)	Nema 14 (35 x 35)
Gear Ratio(xx:1)	3.71
Gearbox Type	Economy Planetary
Inventory Method	Shared Inventory
IP Rating	40
Lead Length(mm)	400
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	400
