Nema 16 Assembled Motor w/ Hollow & Solid Shaft Bipolar 1.8deg 8Ncm(11.33oz.in) 0.3A 39x39x40mm 4 Wires

1 reviews - Write a review

C$11.07

5 + C$10.66

10 + C$10.26

50 + C$9.90

100 + C$9.56

In Stock: 10000
Model: 16HS16-0304S-C1
Gross Weight: 0.40kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

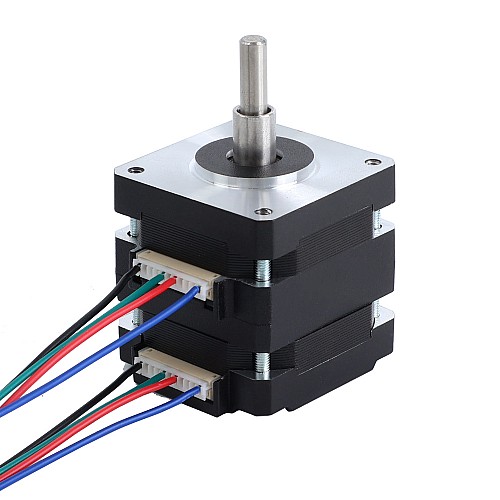

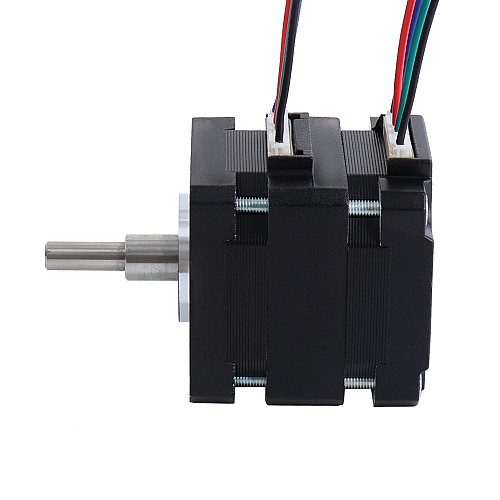

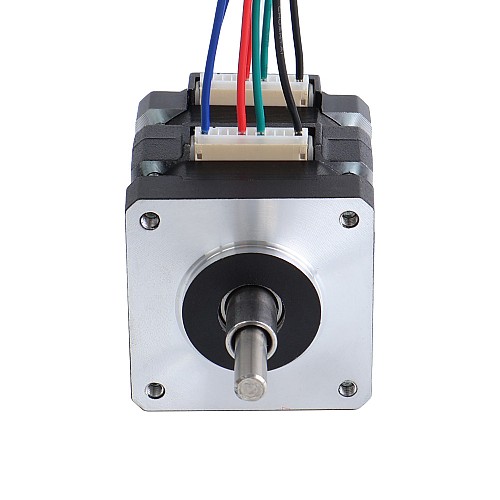

This bipolar Nema 16 stepper motor with step angle 1.8deg, is assebled by hollow and solid shaft motors. It has 4 wires, each phase draws 0.3A, with holding torque 8Ncm(11.33oz.in).

Electrical Specification

Manufacturer Part Number: 16HS16-0304S-C1
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 8Ncm(11.33oz.in)
Rated Current/phase: 0.3A
Phase Resistance: 25ohms
Inductance: 22mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 39 x 39mm
Body Length: 40mm
Hollow Shaft Diameter: Φ8mm
Solid Shaft Diameter: Φ5mm
Hollow Shaft Length: 11mm
Solid Shaft Length: 25mm

Connection

Pin No.	Bipolar
1/3	A
7	C
5	B
9/11	D

Product Type
Product Type	Assembled Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	8
Holding Torque(oz.in)	11.33
Inductance(mH)	22
Insulation Class	B 130C(266F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	25
Rated Current(A)	0.3
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	40
Frame Size(mm)	Nema 16 (39 x 39)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	25
Single Shaft/Dual Shaft	Single Shaft
