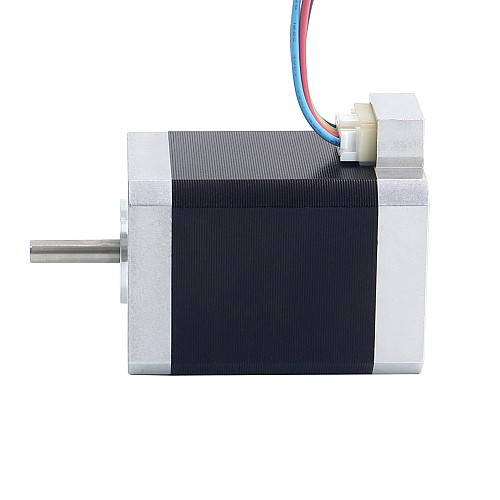

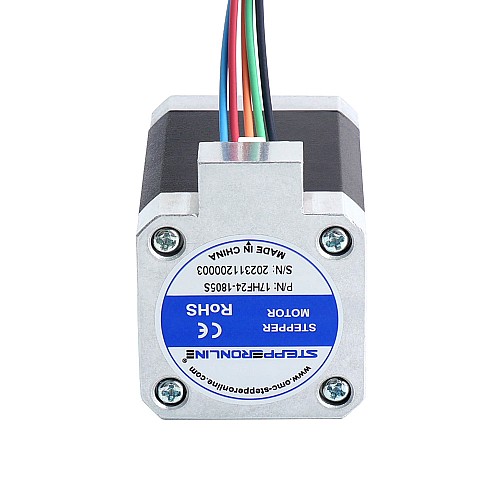

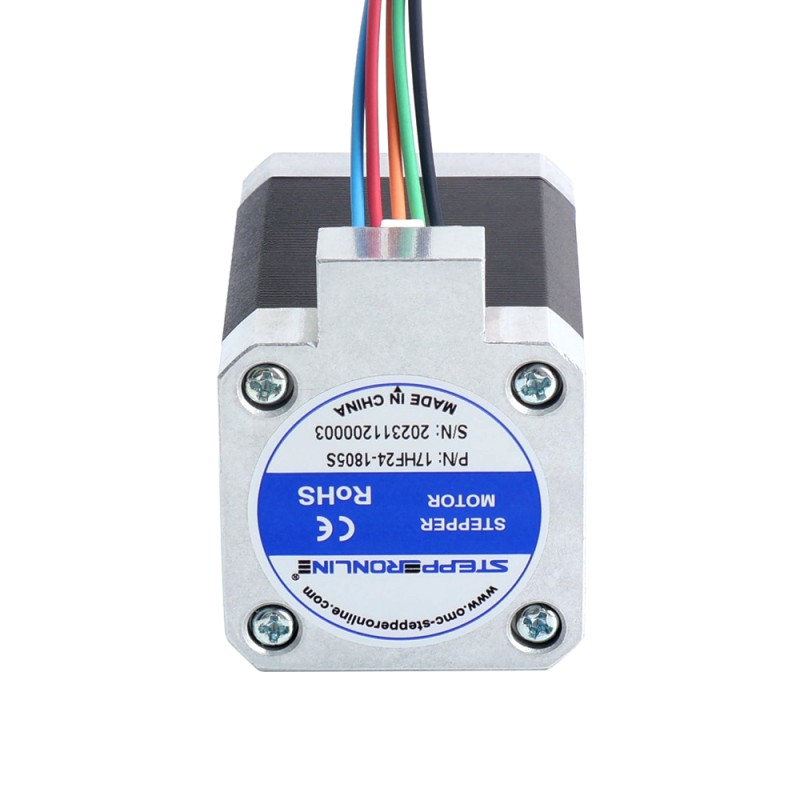

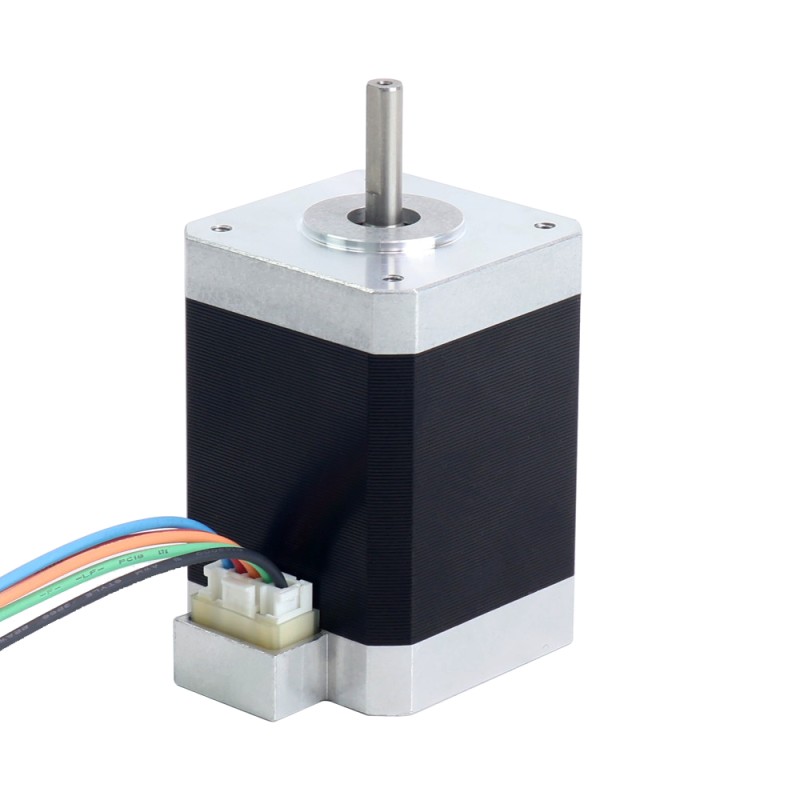

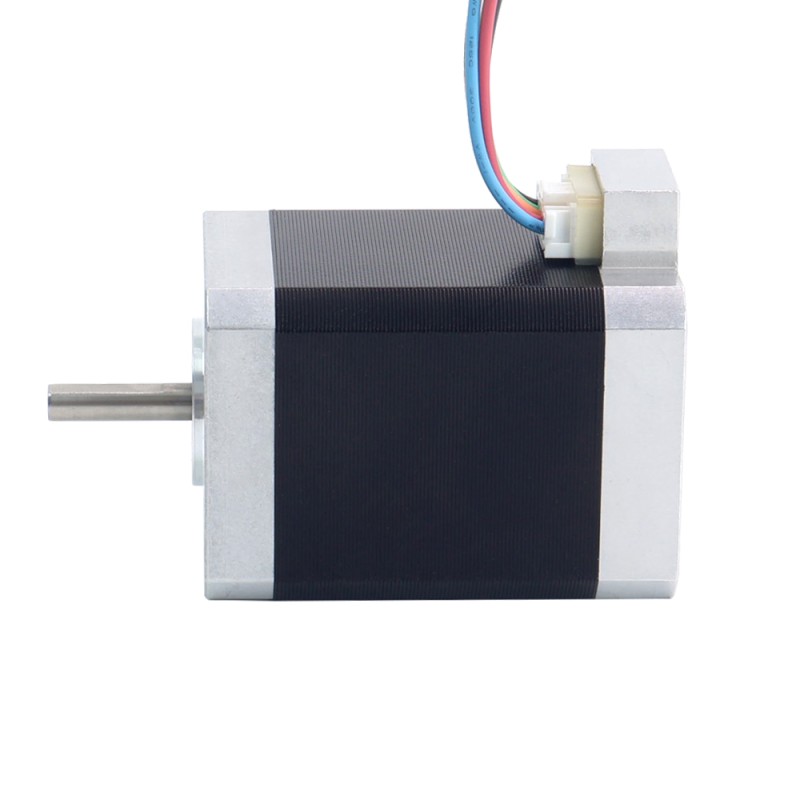

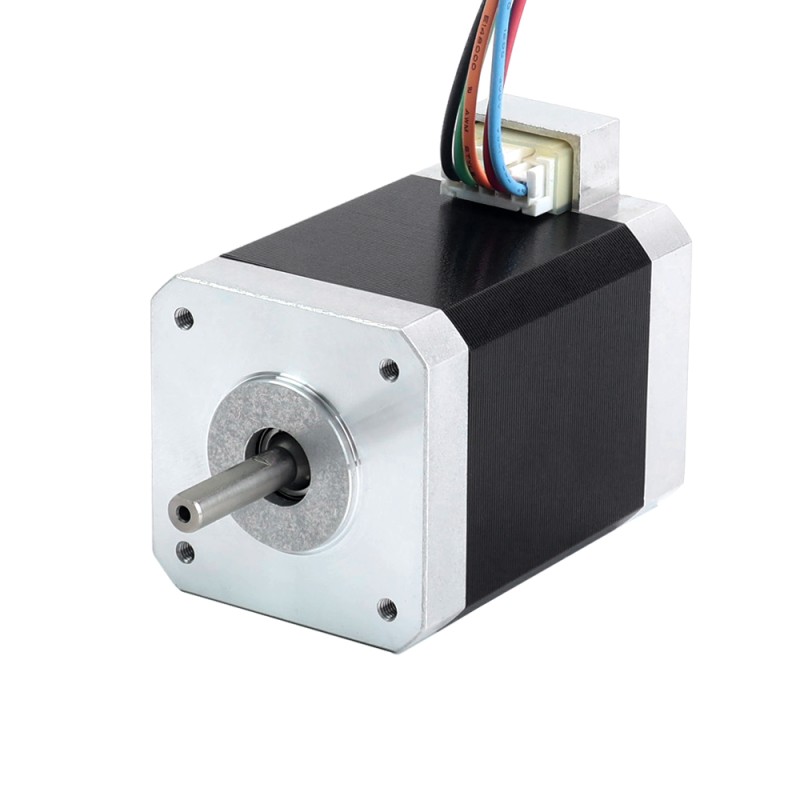

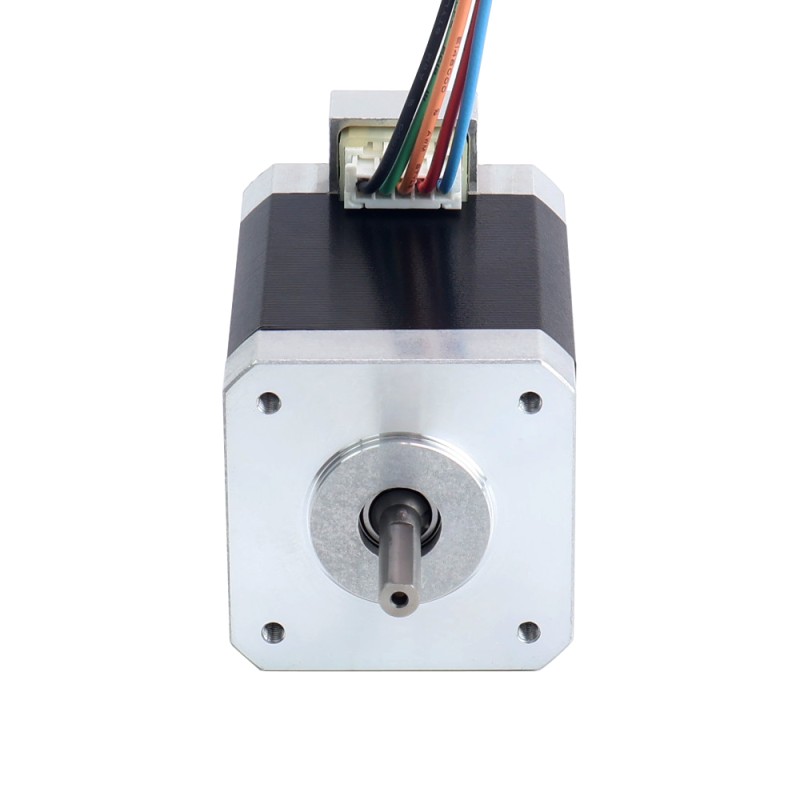

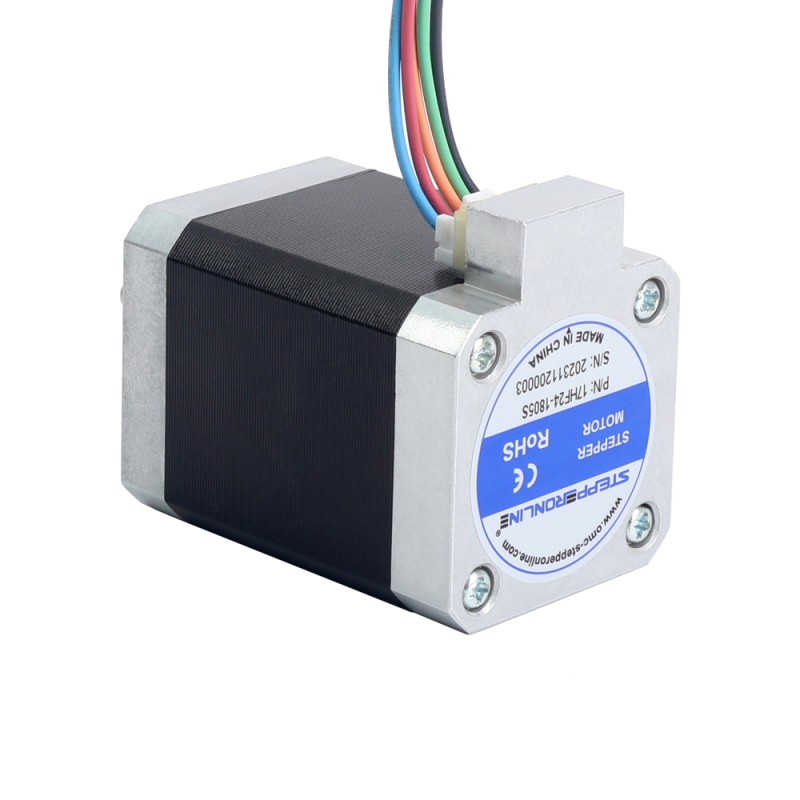

Nema 17 5-Phase Stepper Motor 0.5Nm(70.81oz.in) 1.8A 42x42x60mm 5 Wires

0 reviews - Write a review

C$101.76

5 + C$91.70

10 + C$83.46

50 + C$76.58

100 + C$70.74

In Stock: Pre-order
Model: 17HF24-1805S
Gross Weight: 0.55kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 5-phase stepper motor with a rated current of 1.8A and a holding torque of 0.5Nm(70.81oz.in). Compared to 2-phase stepper motors, 5-phase stepper motors have higher resolution, lower vibration, lower noise, etc. It is widely used in printing industry, medical equipment, optoelectronics industry, instrumentation industry and other fields that require high precision.

Electrical Specification

Manufacturer Part Number: 17HF24-1805S
Number of phase: 5
Step Angle: 0.72deg
Holding Torque: 0.5Nm(70.81oz.in)
Rated Current/Phase: 1.8A
Phase Resistance: 0.64±10%ohms
Inductance: 0.6mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Number of Leads: 5
Lead Length: 300mm
Weight: 0.5kg

Connection

Pin	A	B	C	D	E
Color	Black	Green	Orange	Red	Blue

Product Type
Product Type	5-phase stepper motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	50
Holding Torque(oz.in)	70.81
Inductance(mH)	0.60
Insulation Class	B 130C(266F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	0.64
Rated Current(A)	1.8
Step Angle(deg.)	0.72
Physical Specification
Body Length(mm)	60
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	5
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
