We've upgraded our website — we'd love to hear how we can make it even better. Share feedback
Cart0 item(s) - C$0.00 0

  • Your shopping cart is empty!

0

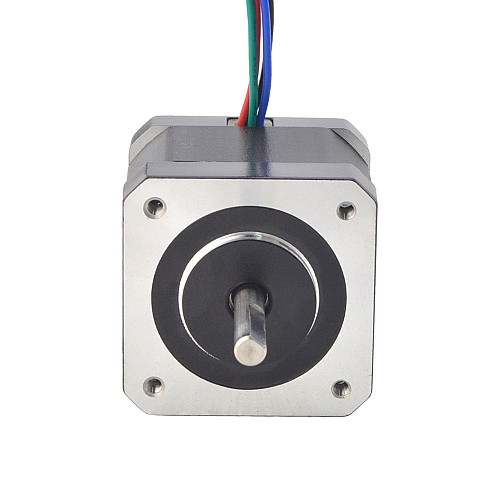

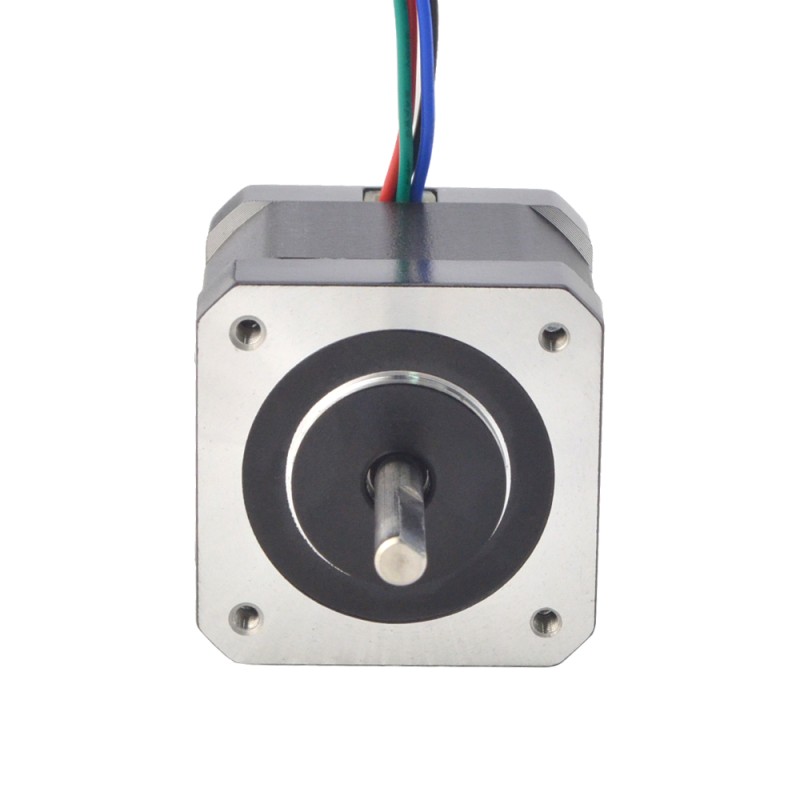

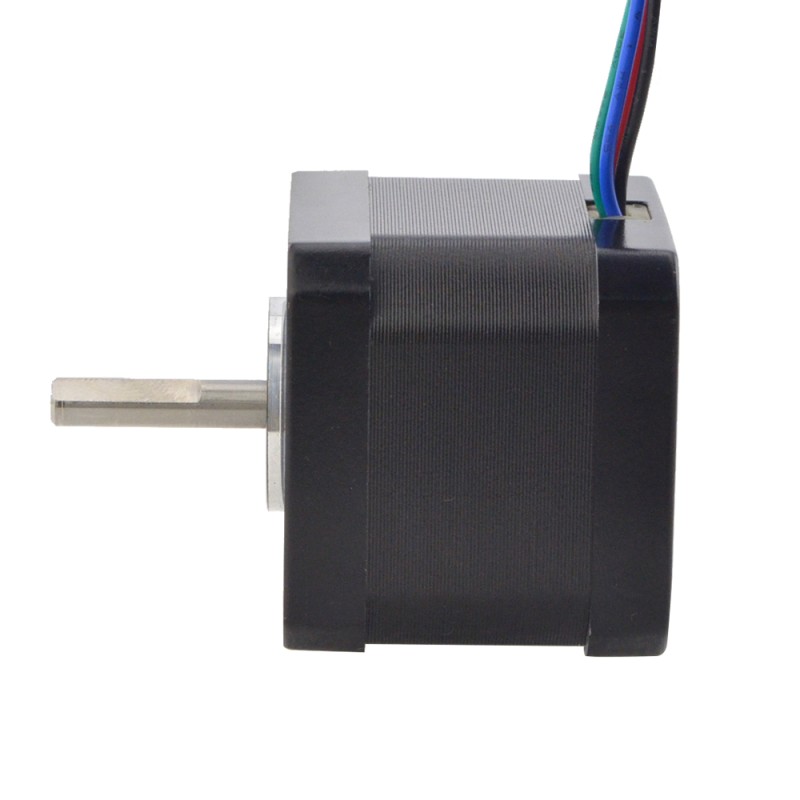

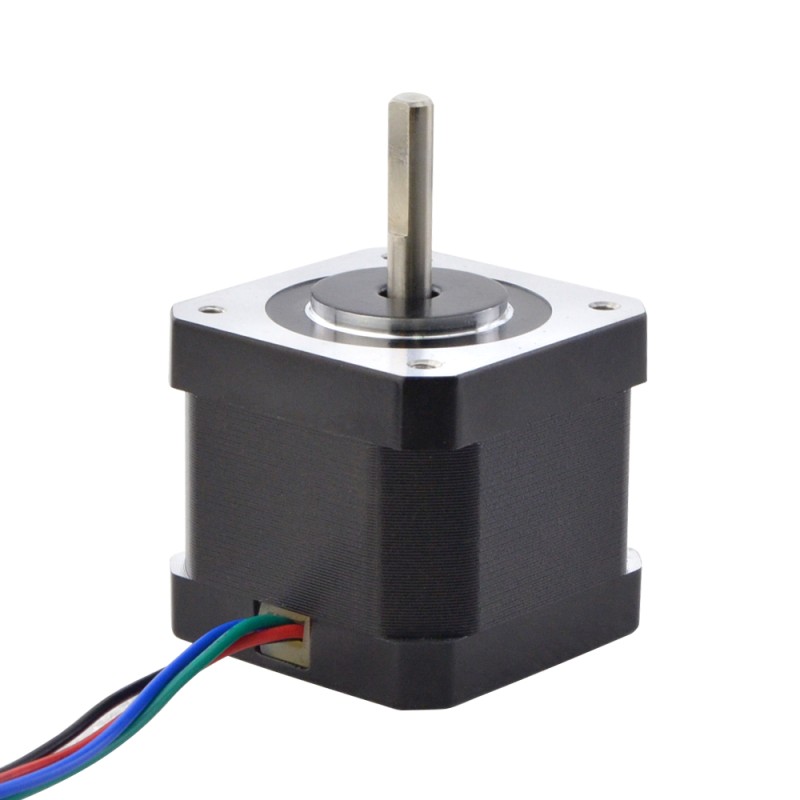

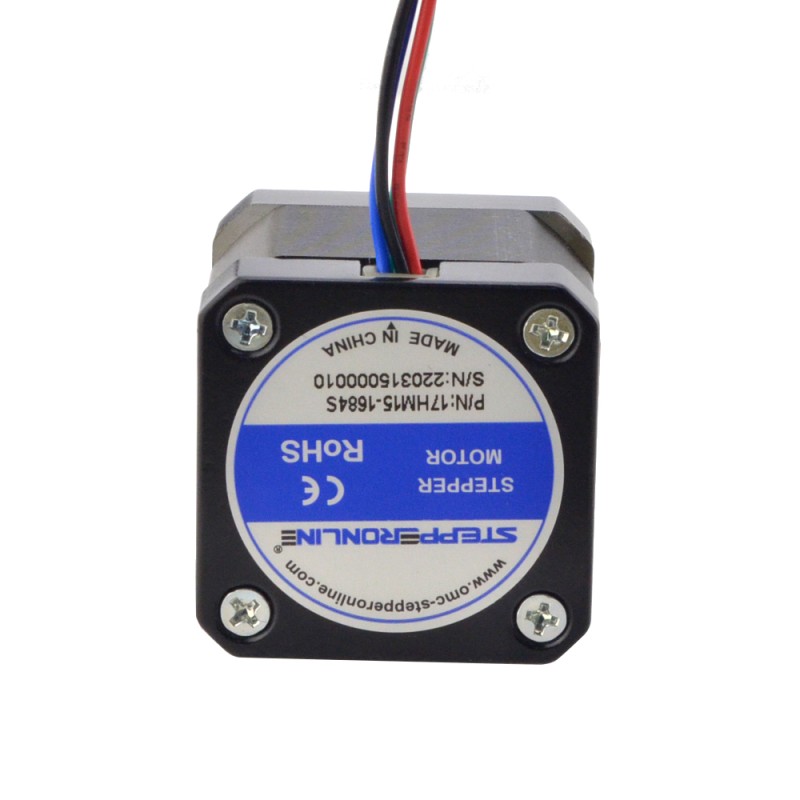

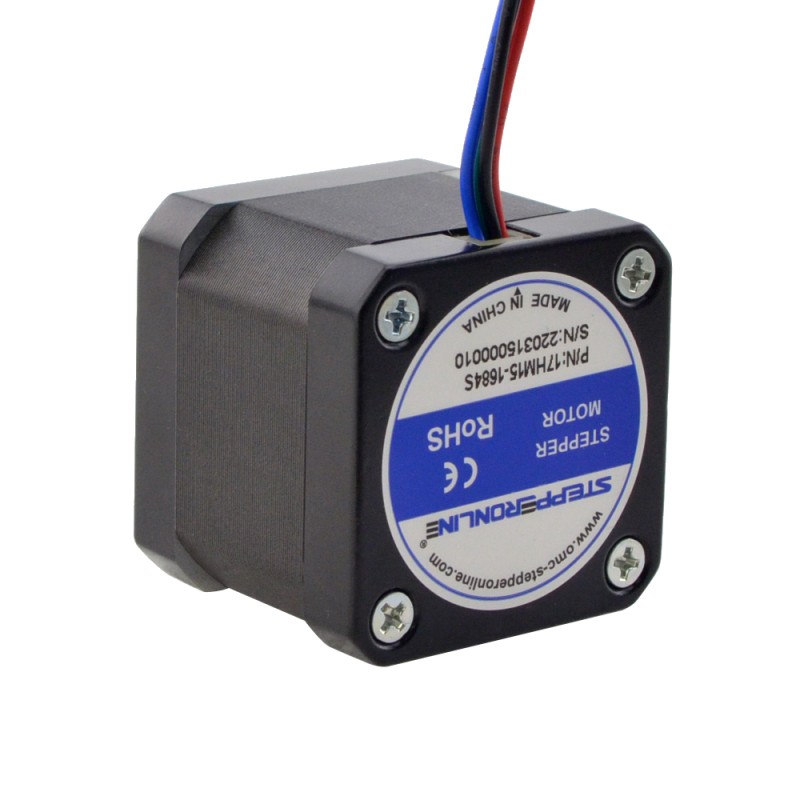

Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires

Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires - 17HM15-1684S | StepperOnline CA

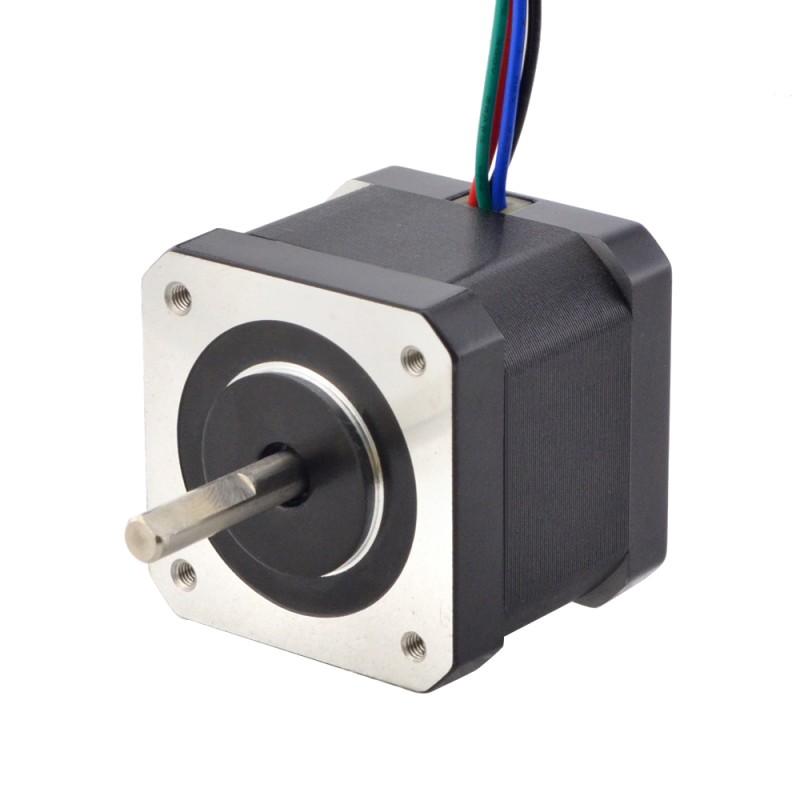

17HM15-1684S
Output Shaft TypeD
No. of Lead4
Single Shaft/Dual ShaftSingle Shaft
Holding Torque(Ncm)32
Question

Downloads

17HM15-1684S_Full_Datasheet.pdfPDF · 214.33KB
Same series
ModelOutput Shaft TypeNo. of LeadSingle Shaft/Dual ShaftHolding Torque(Ncm)PriceStock
17HM08-1204SO4Single Shaft11C$13.24In stock
17HM13-0316DD6Dual Shaft16C$13.72Backorder
17HM13-0316SD6Single Shaft16C$13.95Backorder
17HM15-0406SD6Single Shaft26C$14.66In stock
17HM15-0904SD4Single Shaft36C$15.63In stock
17HM15-1004SD4Single Shaft33C$14.56In stock
17HM15-1684SD4Single Shaft32C$15.60In stock
17HM19-0406DD6Dual Shaft32C$16.54Backorder
17HM19-1684DD4Dual Shaft44C$17.17In stock
17HM19-1684SD4Single Shaft42C$16.54In stock
17HM19-2004SD4Single Shaft46C$16.54In stock
17HM19-2004S1D4Single Shaft46C$15.60In stock
Nema 17 Bipolar 0.9deg 32Ncm(45.3oz.in) 1.68A 42x42x39mm 4 Wires
Electrical Specification Manufacturer Part Number: 17HM15-1684S Motor Type: Bipolar Stepper Ste... Read More
1 reviews • Write a review
from
C$15.60
5 + C$14.88
10 + C$14.20
50 + C$13.59
100 + C$13.04

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

  • Manufacturer Part Number: 17HM15-1684S
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.9deg
  • Holding Torque: 32Ncm(45.3oz.in)
  • Rated Current/phase: 1.68A
  • Phase Resistance: 1.7ohms
  • Inductance: 4.6mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specifications

  • Frame Size: 42.3 x 42.3mm
  • Body Length: 39mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Shaft Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? No
Holding Torque(Ncm) 32
Holding Torque(oz.in) 45.3
Inductance(mH) 4.6
Phase Resistance(ohms) 1.7
Rated Current(A) 1.68
Step Angle(deg.) 0.9
Physical Specification
Body Length(mm) 39
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 500
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Single Shaft/Dual Shaft Single Shaft
Weight(g) 310

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Digital Stepper Driver 0.3-2.2A 10-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 0.3-2.2A 10-30VDC for Nema 8, 11, 14, 16, 17 Stepper Motor
This is a digital stepper drive implemented with advanced stepper control technology. It is easy to use and it can be used to drive 2-phase and 4-phas..
from
C$19.94
Add to Cart
Add to Wish List Compare this Product
Quickview
NEMA 17 Stepper Motor Vibration Dampers with 4 M3 Screws
NEMA 17 Stepper Motor Vibration Dampers with 4 M3 Screws
This damper is for NEMA 17 stepper motors. It can effectively reduce noise and vibration generated from the running stepper motors...
from
C$3.77
Add to Cart
Add to Wish List Compare this Product
Quickview
5mm - 5mm Flexible Jaw Coupling 20x25mm CNC Stepper Motor Shaft Coupler
5mm - 5mm Flexible Jaw Coupling 20x25mm CNC Stepper Motor Shaft Coupler
Specification Part Number: MH2025-5-5 Type: Jaw Type Rated Torque: 2.8Nm(396.42oz.in) Max. Torque: 5.6Nm(792.84oz.in) Max. ..
from
C$4.73
Add to Cart
Add to Wish List Compare this Product
Enter your email address below and we will notify you as soon as this item is back in stock.
Name
Email
Comments
