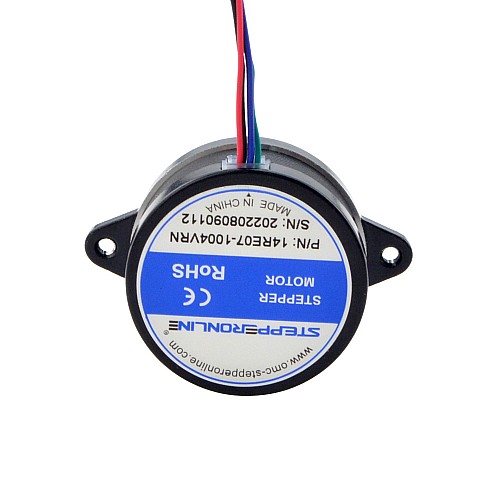

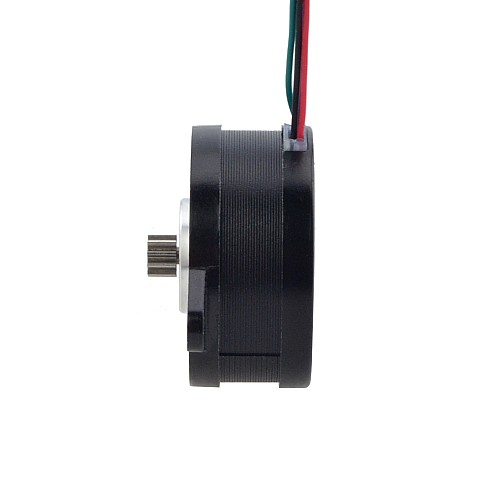

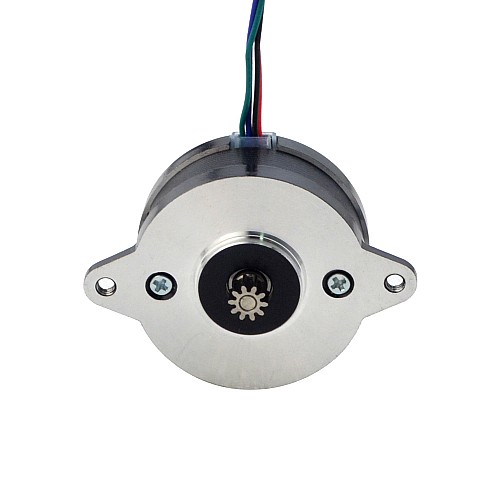

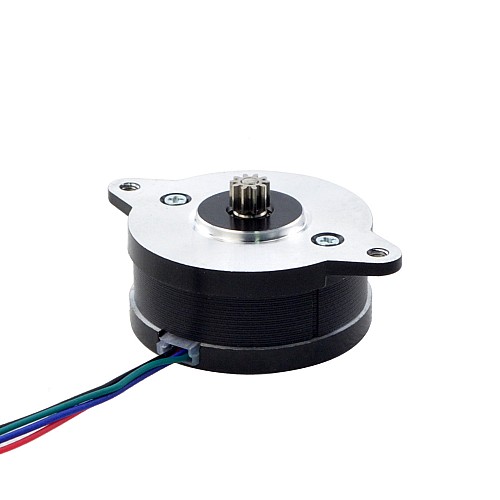

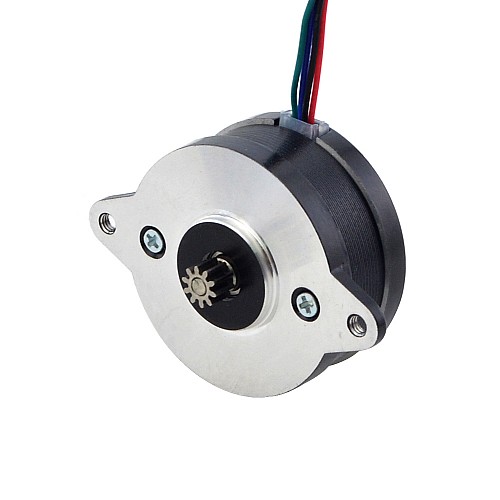

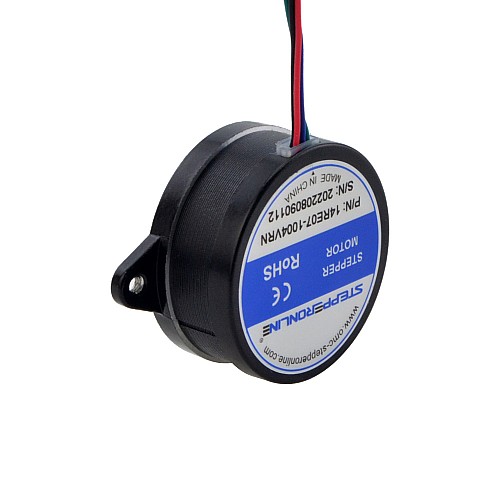

E Series Round Nema 14 Bipolar 0.9deg 8Ncm(11.33oz.in) 1.0A Φ36 x17mm 4 Wires

3 reviews - Write a review

C$12.27

5 + C$11.77

10 + C$11.31

50 + C$10.88

100 + C$10.48

In Stock: 10000
Model: 14RE07-1004VRN
Gross Weight: 0.15kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 14RE07-1004VRN
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 8Ncm(11.33oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.9ohms
Inductance: 2.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: Φ36.5mm
Body Length: 17mm
Shaft Diameter: Φ2.5mm
Shaft Length: 6mm
Number of Leads: 4
Lead Length: 500mm

Connection

A+	A-	B+	B-
Red	Green	Black	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	8
Holding Torque(oz.in)	11.33
Inductance(mH)	2.5
Phase Resistance(ohms)	3.9
Rated Current(A)	1.0
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	17
Frame Size(mm)	Nema 14 (Φ36)
Inventory Method	Dedicated Inventory
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	2.5
Shaft Length(mm)	6
Single Shaft/Dual Shaft	Single Shaft
