Nema 17 External 48mm Stack 1.3A Lead 0.794mm(0.031") Length 250mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17E19S1304LF3-250RS
Gross Weight: 0.62kg
Certificated: ISO, CE, RoHS

Sold: 19

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

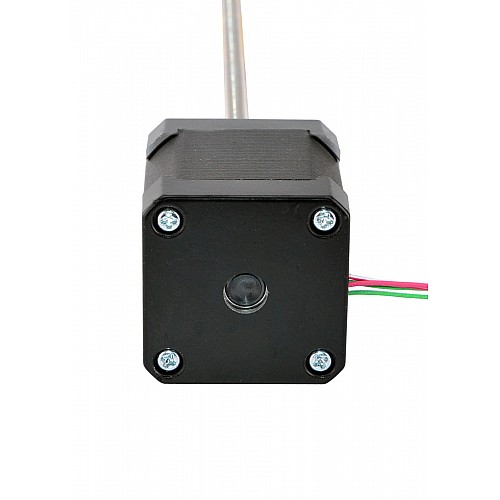

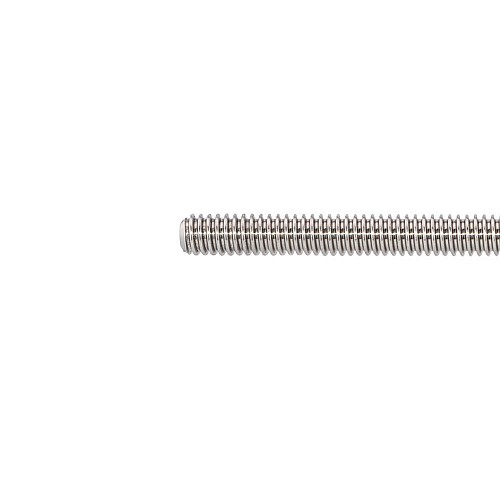

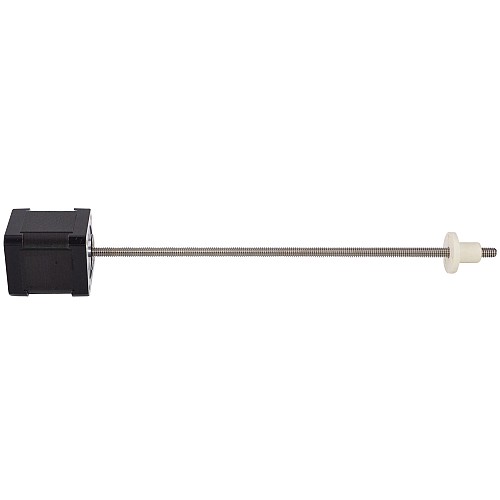

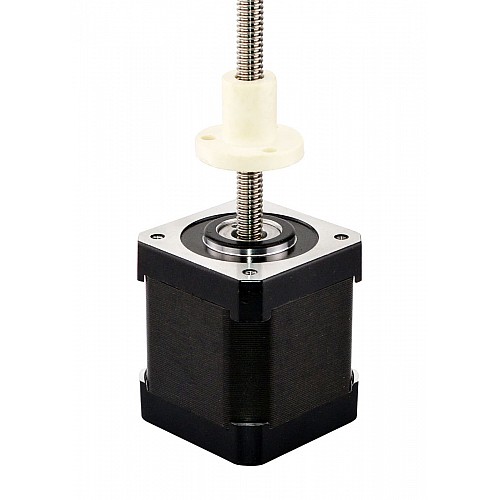

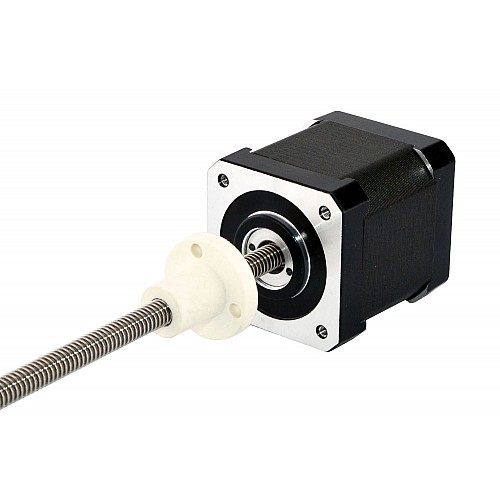

The motor part is 48mm body 1.8 degree 1.3A Nema 17 stepper motor, and it has integrated with a 6.35mm(0.25") diameter 250mm(9.8425") length lead screw and a POM screw nut, the linear travel is 0.794mm(0.03125") per revolution. This model is almost exactly same as Haydon Kerk 43000 series size 17 double stack external stepper motor linear actuator.

Electrical Specification

Manufacturer Part Number: 17E19S1304LF3-250RS(17E19S1304LF-250RS)
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 560N(300pps)
Rated Current/phase: 1.3A
Phase Resistance: 3.96ohms
Voltage: 5V
Inductance: 6.66mH±20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 250mm(9.8425")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.00396875mm(0.00015625")
Lead Travel/Revolution: 0.794mm(0.03125")
Number of Leads: 4
Cable Length: 300mm
Weight : 352g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Product Type
Product Type	Linear Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	6.66
Minimal Thrust(N) @300pps	560
Phase Resistance(ohms)	3.96
Rated Current(A)	1.3
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	48
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
Lead Length(mm)	300
Lead Screw Diameter(mm)	6.35
Lead Screw Length(mm)	250
Lead Travel/Revolution(mm)	0.794
Lead Travel/Step(mm)	0.00396875
Linear Motor Type	External(Acme)
No. of Lead	4
