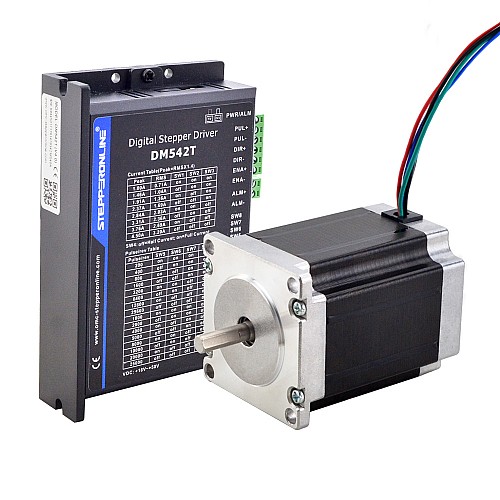

1 Axis Stepper CNC Kit 1.9Nm(269oz.in) Nema 23 Stepper Motor & Driver

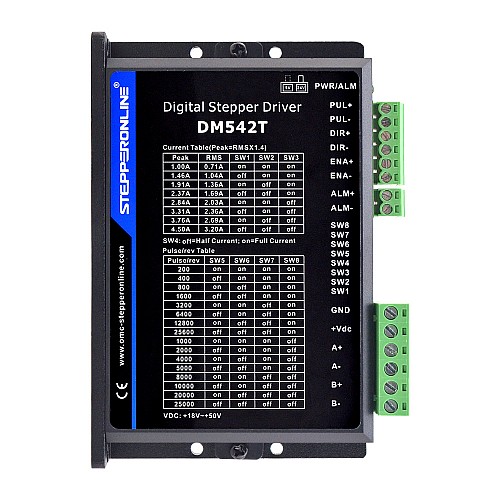

• 1 x DM542T: Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor

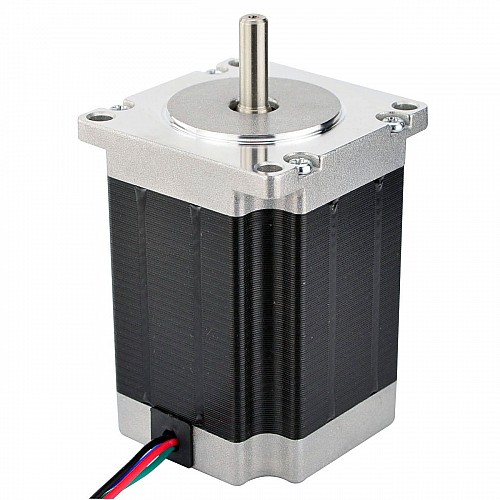

• 1 x 23HS30-2804S: Nema 23 Bipolar 1.8deg 1.9Nm(269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires

Motor Specification

• Manufacturer Part Number: 23HS30-2804S
• Motor Type: Bipolar Stepper
• Step Angle: 1.8deg
• Holding Torque: 1.9Nm(269oz.in)
• Rated Current/phase: 2.8A
• Phase Resistance: 1.13ohms
• Inductance: 5.4mH±20%(1KHz)
• Frame Size: 57 x 57mm
• Body Length: 76mm
• Shaft Diameter: Φ6.35mm
• Shaft Length: 21mm
• D-cut Length: 15mm
• Number of Leads: 4
• Lead Length: 500mm
• Insulation Class: B 130°C[266°F]
• Weight: 1.1kg

Connection

Driver Specification

• Pulse Width: 2.5μS
• Isolation Resistance: 500MΩ
• Pulse Input Frequency: 0~200kHz
• Output Peak Current: 1.0~4.5A(3.2RMS)
• Input Voltage: +18~50VDC(Typical 36VDC)
• Logic Signal Current: 7~16mA(Typical 10mA)
• Support PUL/DIR mode
• Automatic idle-current reduction
• Over-voltage and over-current protections
• Soft-start with no "jump" when powered on
• 5V/24V logic voltage selector, default setting 24V
• Anti-Resonance provides optimal torque and nulls mid-range instability
• Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
• Suitable for 2-phase and 4-phase motors, works well as nema 17 driver, nema 23 driver
• 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.50A
• Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
• Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
• 16 selectable microstep resolutions including 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
