Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 38mm Φ5mm D-cut Shaft Insulation Class H 180C & JST-XH Connector
0 reviews - Write a review
C$20.97
5 + C$19.82
10 + C$18.78
50 + C$17.86
100 + C$17.02
  • In Stock: 200
  • Model: 17HS19-2504S-H-V6
  • Gross Weight: 0.47kg
  • Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

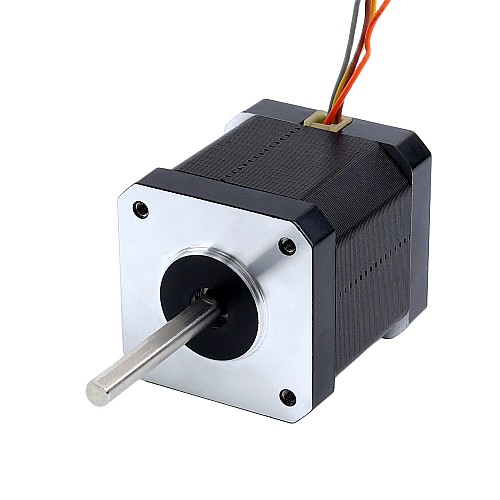

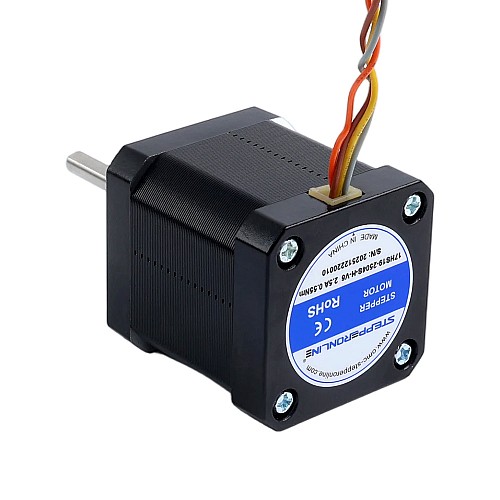

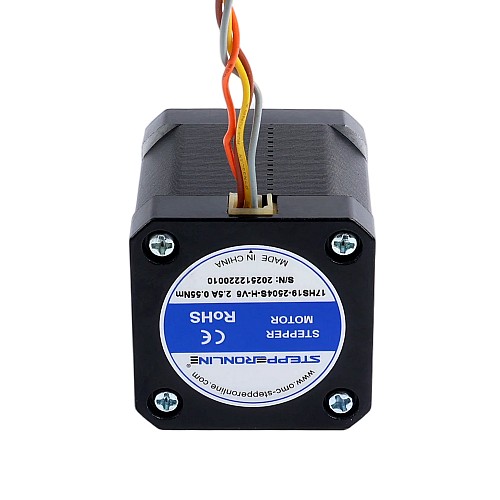

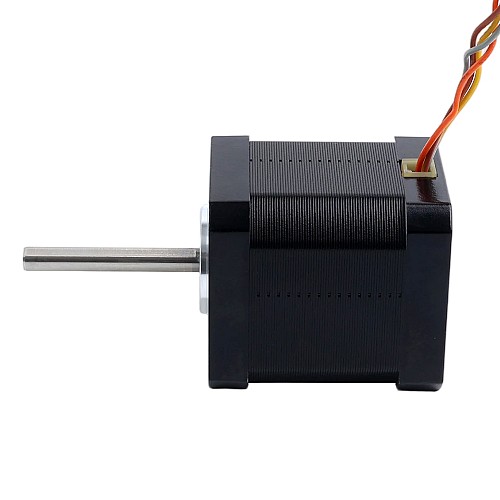

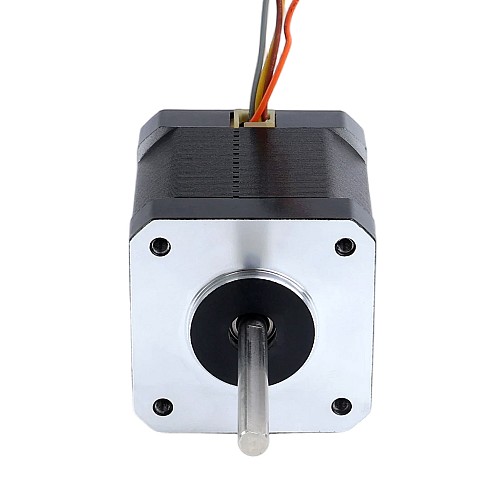

This NEMA 17 stepper motor features a 38mm-long, 5mm-diameter shaft and comes with a 1-meter cable terminated in a 2.54mm JST-XH connector.
With a step angle of 1.8°, it provides a holding torque of 55Ncm(77.93oz-in) and a rated current of 2.5A per phase. Built with Class H insulation, it can reliably operate in temperatures up to 180°C, ensuring stable performance, long-term durability and precision motion control in 3D printing applications.

Electrical Specification

  • Manufacturer Part Number: 17HS19-2504S-H-V6
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 55Ncm(77.93oz.in)
  • Rated Current/phase: 2.5A
  • Phase Resistance: 1.10ohms
  • Inductance: 1.6mH±20%(1KHz)
  • Insulation Class: H 180C(356F)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 38mm
  • Shaft Type: D-cut
  • Number of Leads: 4
  • Cable Length: 1000mm

Connection

A+
A-
B+
B-
Gray
Brown
Orange
Yellow
Product Type
Product Type High Temp Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 55
Holding Torque(oz.in) 77.93
Inductance(mH) 1.6
Insulation Class H 180C(356F)
Open-loop/Closed-loop Open-loop
Phase Resistance(ohms) 1.10
Rated Current(A) 2.5
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 48
Cable Length(mm) 1000
Frame Size(mm) Nema 17 (42 x 42)
Inventory Method Dedicated Inventory
No. of Lead 4
Output Shaft Type D
Shaft Diameter(mm) 5
Shaft Length(mm) 38
Single Shaft/Dual Shaft Single Shaft


File Size
17HS19-2504S-H-V6_Full_Datasheet.pdf 207.3KB Download
