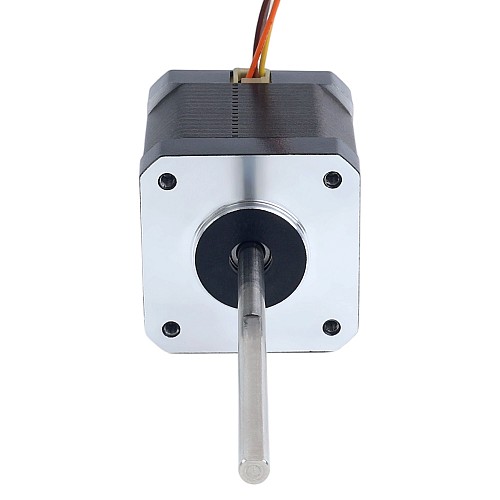

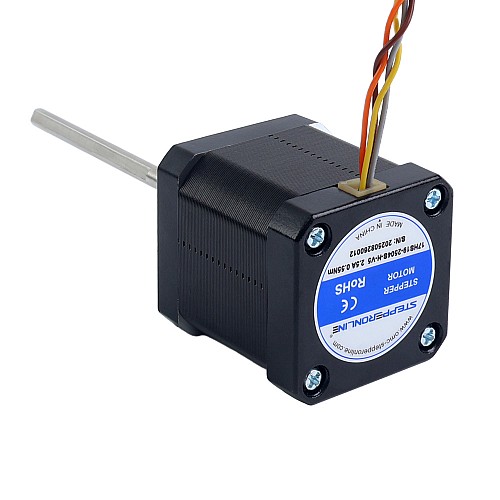

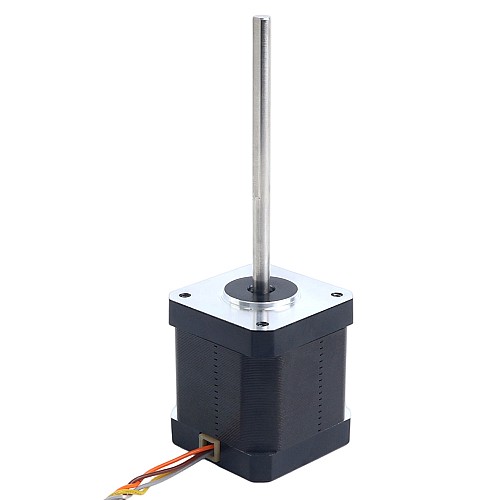

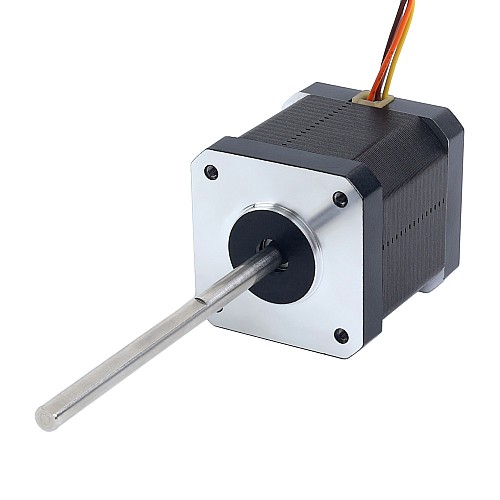

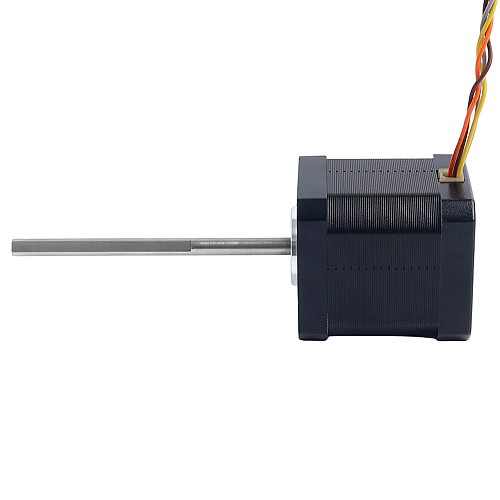

Nema 17 High Temp Stepper Motor 55Ncm(77.93oz.in) 80mm Φ5mm D-cut Shaft Insulation Class H 180C

0 reviews - Write a review

C$21.53

5 + C$20.35

10 + C$19.30

50 + C$18.34

100 + C$17.48

In Stock: 10000
Model: 17HS19-2504S-H-V5
Gross Weight: 0.51kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 10

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This NEMA 17 stepper motor features an 80mm shaft with a 5mm diameter, delivering a precise 1.8° step angle and a high holding torque of 55Ncm(77.93oz-in). With a rated current of 2.5A per phase, it comes with a 1m cables.
Built with Class H insulation, the motor operates reliably in temperatures up to 180°C. Engineered specifically for 3D printing, it delivers optimal performance and enables precise motion control.

Electrical Specification

Manufacturer Part Number: 17HS19-2504S-H-V5
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 55Ncm(77.93oz.in)
Rated Current/phase: 2.5A
Phase Resistance: 1.1ohms
Inductance: 1.6mH±20%(1KHz)
Insulation Class: H 180C(356F)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 48mm
Shaft Diameter: Φ5mm
Shaft Length: 80mm
Shaft Type: D-cut
Number of Leads: 4
Cable Length: 1000mm

Connection

A+	A-	B+	B-
Gray	Brown	Orange	Yellow

Product Type
Product Type	High Temp Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Holding Torque(Ncm)	55
Holding Torque(oz.in)	77.93
Inductance(mH)	1.6
Insulation Class	H 180C(356F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	1.1
Rated Current(A)	2.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	48
Cable Length(mm)	1000
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	5
Shaft Length(mm)	80
Single Shaft/Dual Shaft	Single Shaft
