5pcs E Series Nema 17 Bipolar 42Ncm(59.49oz.in) 1.5A 42x42x38mm 4 Wires w/ 1m Cable & Connector

2 reviews - Write a review

C$32.13

5 + C$30.90

10 + C$29.78

50 + C$28.71

100 + C$27.74

In Stock: 10000
Model: 5-17HE15-1504S
Gross Weight: 1.70kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

United States

Germany

United Kingdom

Australia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

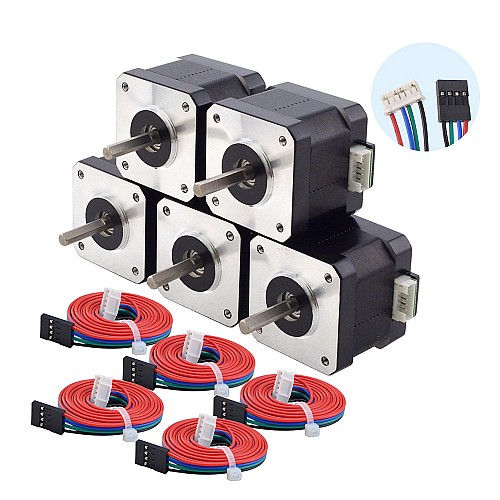

Package includes: 5 x 17HE15-1504S

Electrical Specification

Manufacturer Part Number: 17HE15-1504S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 42Ncm(59.49oz.in)
Rated Current/phase: 1.50A
Phase Resistance: 2.3ohms
Inductance: 4.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

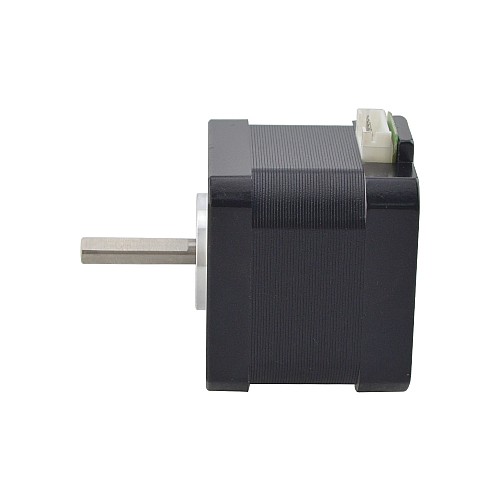

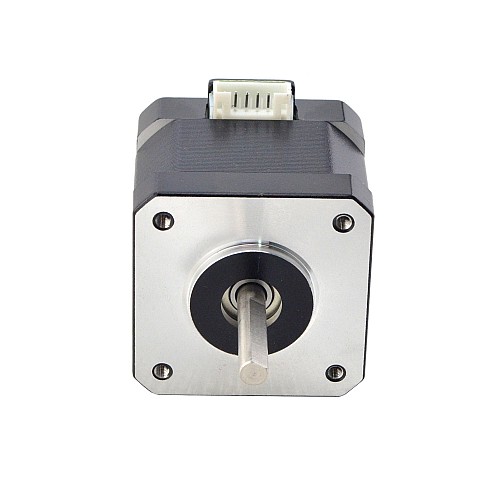

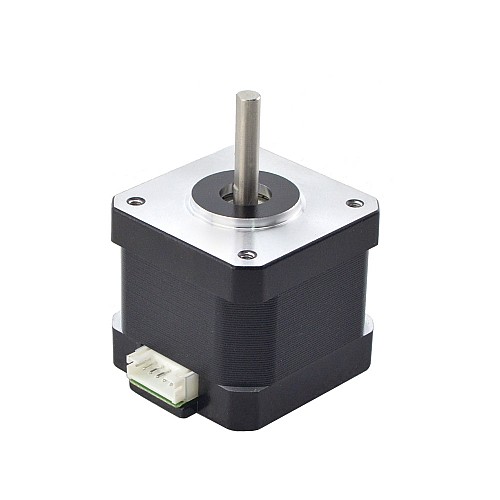

Physical Specification

Frame Size: 42 x 42mm
Body Length: 38mm
Shaft Diameter: Φ5mm
D-cut Length: 20mm
Shaft Length: 23.5mm
Number of Leads: 4
Lead Length: 1000mm
Weight: 280g

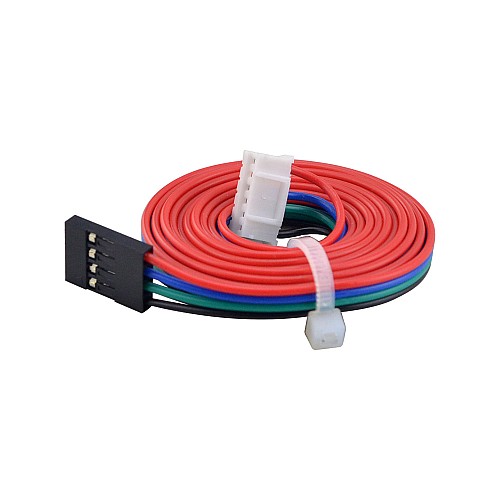

Connection

A+	A-	B+	B-
Black	Blue	Green	Red

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	42
Holding Torque(oz.in)	59.49
Inductance(mH)	4.0
Phase Resistance(ohms)	2.3
Rated Current(A)	1.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	38
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	1000
No. of Lead	4
Output Shaft Type	D
Product Series	E
Shaft Diameter(mm)	5
Shaft Length(mm)	23.5
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	280
