Nema 17 Non-captive 34mm Stack 0.4A Lead 2mm(0.07874") Length 100mm
This model is economy linear stepper motor which named Nema 17 non captive linear actuator, it was c... Read More
0 reviews • Write a review
from
C$40.92
5 + C$39.57
10 + C$38.31
50 + C$37.12
100 + C$36.00

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

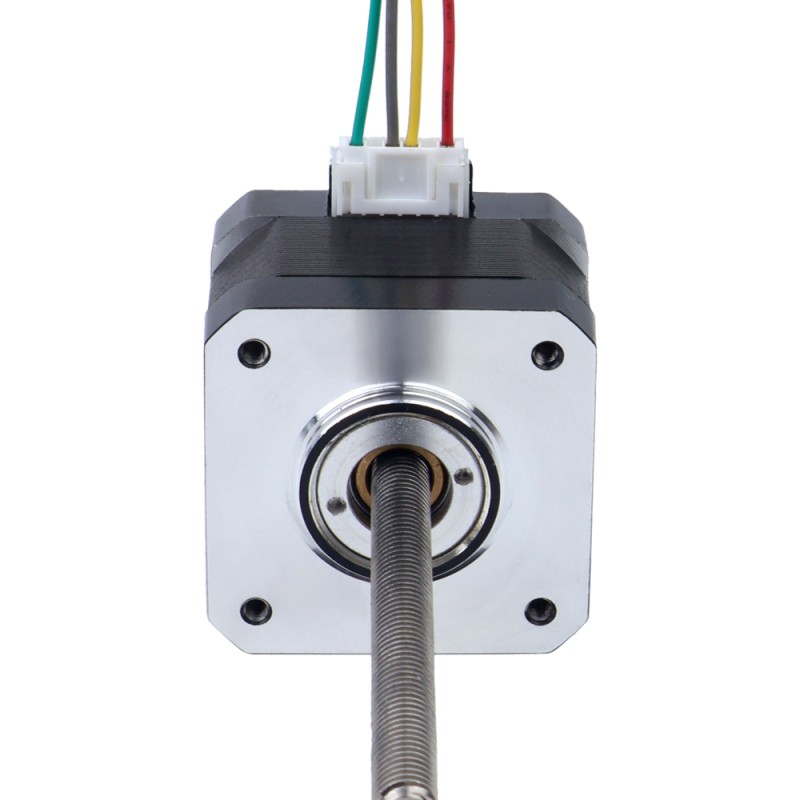

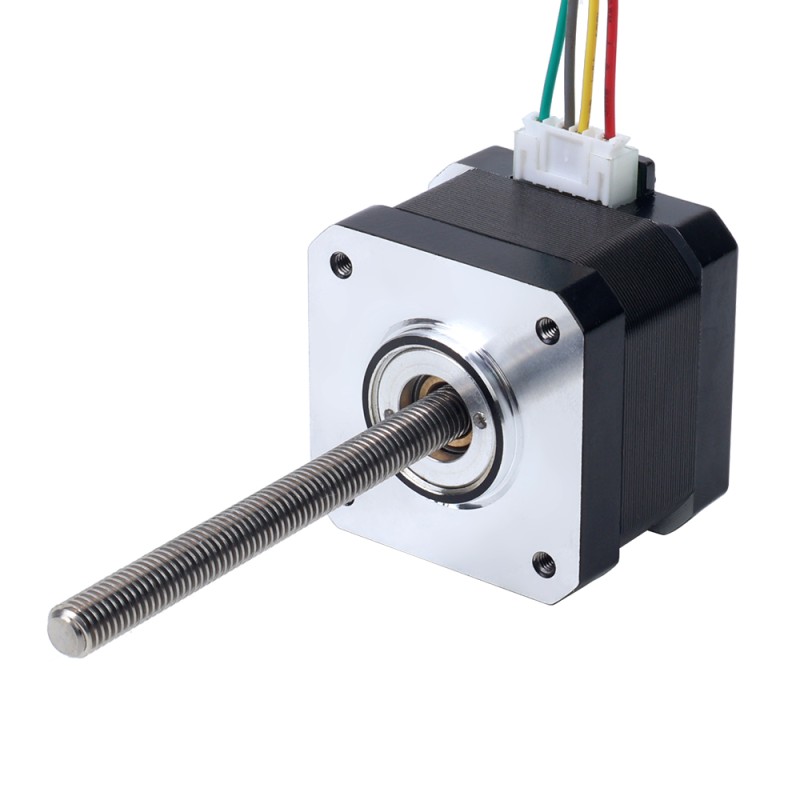

This model is economy linear stepper motor which named Nema 17 non captive linear actuator, it was composed of 34mm 1.8 degree 0.4A Nema 17 stepper motor and 100mm length Tr6.35x2 linear screw.

Electrical Specification

  • Manufacturer Part Number: 17N13S0404AF4-100RS(17N13S0404AF2-100RS)
  • Motor Type: Non Captive Linear Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 0.26Nm(36.82oz.in)
  • Rated Current/phase: 0.4A
  • Phase Resistance: 30ohms
  • Inductance: 37mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 34mm
  • Lead Screw Length: 100mm(3.937")
  • Lead Screw Diameter: Φ6.35mm(0.25")
  • Lead/Step: 0.01mm(0.0003937")
  • Lead/Revolution: 2mm(0.0787")
  • Number of Leads: 4
  • Cable Length: 400mm
  • Weight: 400g

Connection

A+
A-
B+
B-
Red
Gray
Yellow
Green
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? No
Holding Torque(Ncm) 26
Holding Torque(oz.in) 36.82
Inductance(mH) 37
Phase Resistance(ohms) 30
Rated Current(A) 0.4
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 34
Frame Size(mm) Nema 17 (42 x 42)
IP Rating 40
Lead Length(mm) 400
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 100
Lead Travel/Revolution(mm) 2
Lead Travel/Step(mm) 0.01
Linear Motor Type Non-Captive
No. of Lead 4
