Nema 8 Stepper Motor Bipolar 0.2A L=38mm w/ Gear Ratio 90:1 Planetary Gearbox

0 reviews - Write a review

C$57.17

5 + C$54.35

10 + C$51.79

50 + C$49.46

100 + C$47.33

In Stock: 10000
Model: 8HS11-0204D-PG90
Gross Weight: 0.15kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 236

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

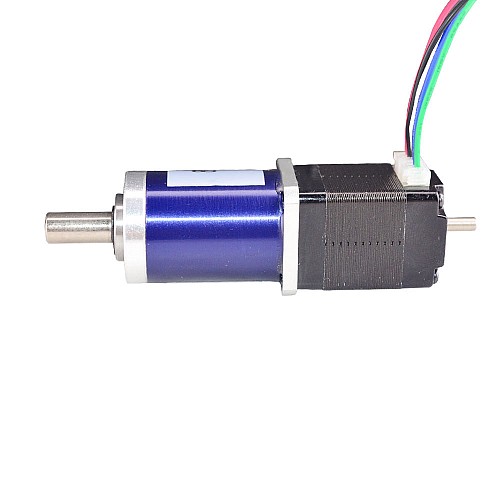

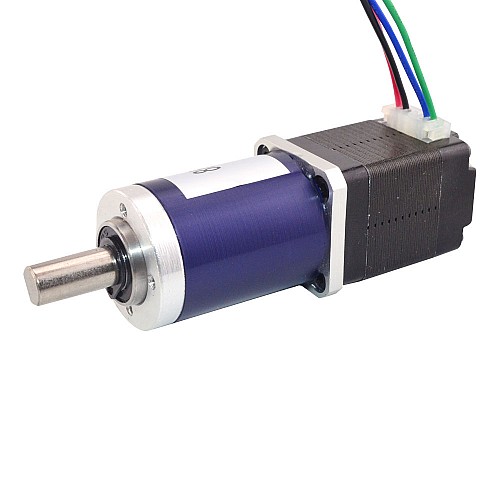

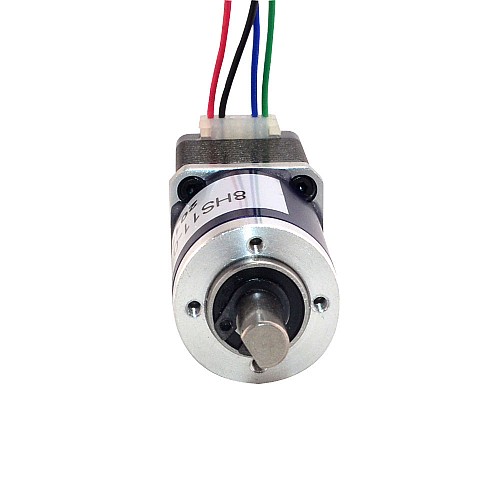

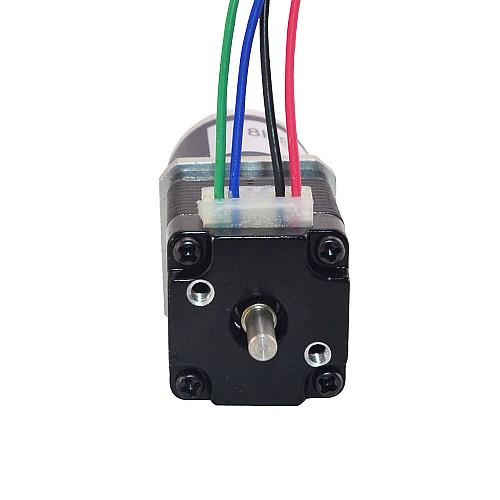

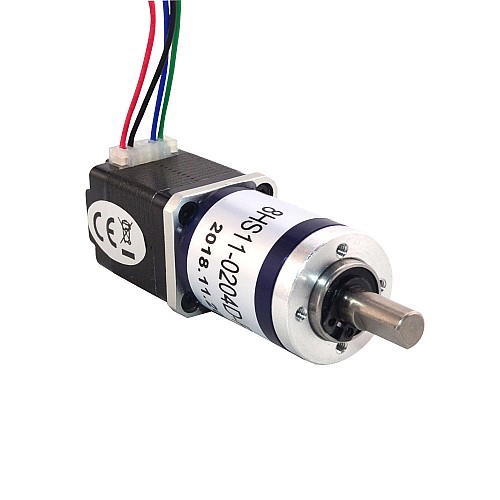

This Nema 8 stepper motor with 38mm body and 0.2A rated current, integrated a planetary gearbox of 90.25:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

Manufacturer Part Number: 8HS11-0204D-PG90
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque without Gearbox: 1.6Ncm(2.27oz.in)
Rated Current/phase: 0.2A
Phase Resistance: 24ohms
Inductance: 8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Planetary
Gear Ratio: 90.25:1
Efficiency: 70%
Backlash at No-load: <=3deg
Max.Permissible Torque: 0.5Nm(70.8oz.in)
Moment Permissible Torque: 1Nm(141.6oz.in)
Shaft Maximum Axial Load: 5N
Shaft Maximum Radial Load: 25N

Physical Specification

Frame Size: 20 x 20mm
Gearbox Length: 31.2mm
Shaft Diameter: Φ6mm
Shaft Length: 15mm
D-cut Length: 9mm
Number of Leads: 4
Lead Length: 300mm
Weight: 50g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	0.2
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.016
Inductance(mH)	8
Phase Resistance(ohms)	24
Physical Specification
Backlash at No-load	<=3deg
Body Length(mm)	59.5
Frame Size(mm)	Nema 08 (20 x 20)
Gear Ratio(xx:1)	90.25
Gearbox Type	Economy Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	15
Single Shaft/Dual Shaft	Dual Shaft
Weight(g)	50
