Nema 17 Stepper Motor L=48mm Gear Ratio 10:1 High Precision Planetary Gearbox

Hot

Nema 17 Stepper Motor L=48mm Gear Ratio 10:1 High Precision Planetary Gearbox

0 reviews - Write a review

€49.09

5 + €46.67

10 + €44.46

50 + €42.47

100 + €40.64

In Stock: 10000
Model: 17HS19-1684S-HG10
Gross Weight: 0.70kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 706

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

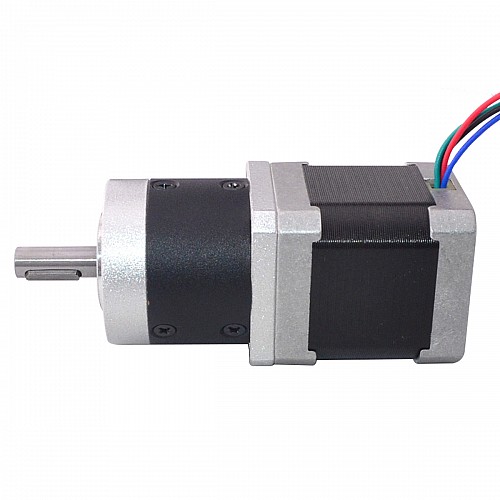

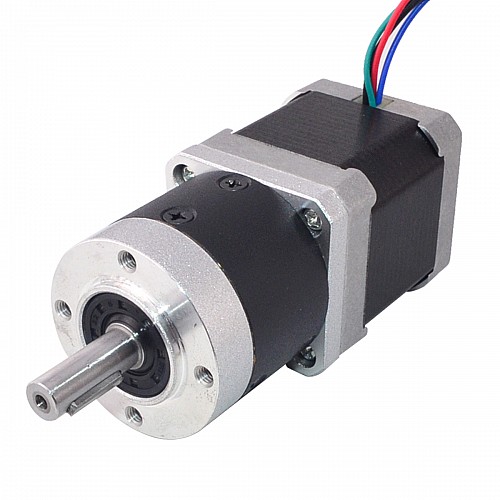

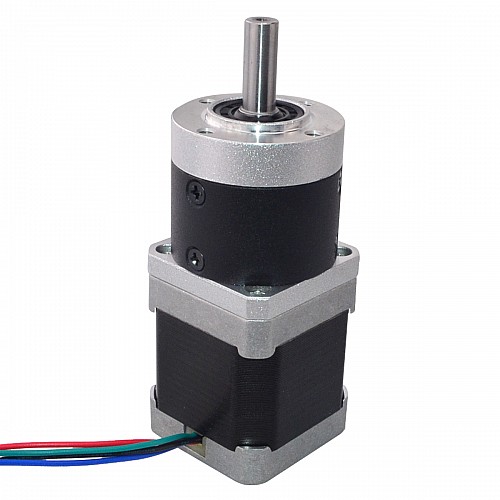

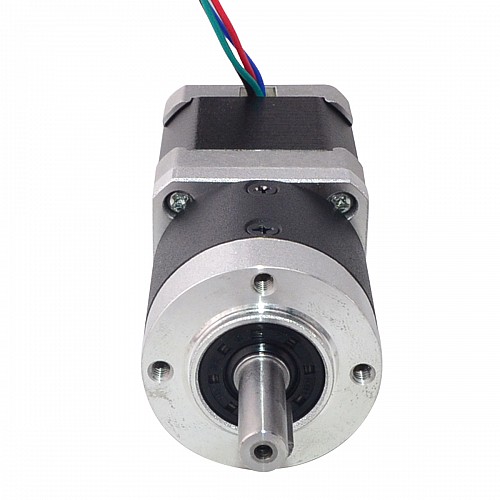

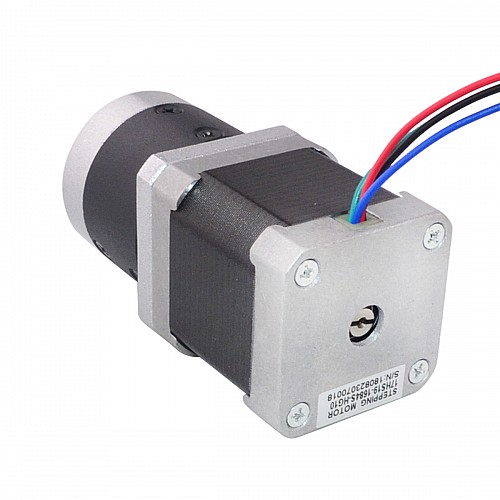

This Nema 17 stepper motor with 48mm body and 1.68A rated current, integrated with a 41mm Planetary gearbox of 10:1 gear ratio. It's a good solution to applications that with special space but need low speed and/or high torque.

Electrical Specification

Part Number: 17HS19-1684S-HG10
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque without Gearbox: 44Ncm(62.32oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.65ohms
Inductance: 2.8mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 10:1
Efficiency: 92%
Backlash at No-load:<=30arcmin
Max.Permissible Torque: 3.5N.m(495.74oz.in)
Moment Permissible Torque: 6.00N.m(849.84oz.in)
Max.Radial Load:100N
Ambient Temperature: -20-50℃
Noise: <=50dB
Life: 6000h

Physical Specification

Frame Size: 42 x 42mm
Motor Length: 48mm
Gearbox Length: 41mm
Shaft Diameter: Φ8mm
Shaft Length: 23.5mm
Key-way Length:14mm
Number of Leads: 4
Lead Length: 320mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The suitable bracket is ST-M12.

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.44
Inductance(mH)	2.8
Phase Resistance(ohms)	1.65
Physical Specification
Backlash at No-load	<=30arcmin
Body Length(mm)	89
Frame Size(mm)	Nema 17 (42 x 42)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	10
Gearbox Type	Precision Planetary
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	320
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	8
Shaft Length(mm)	23.5
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	350
