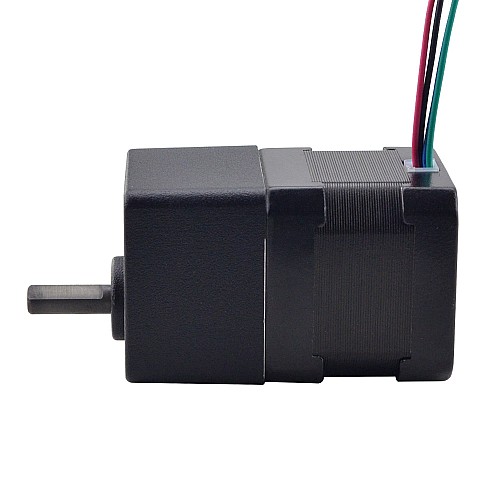

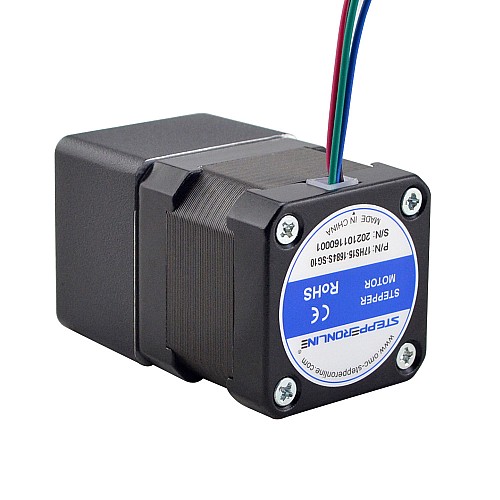

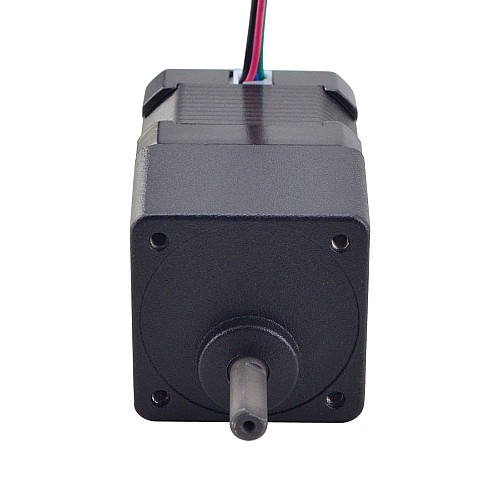

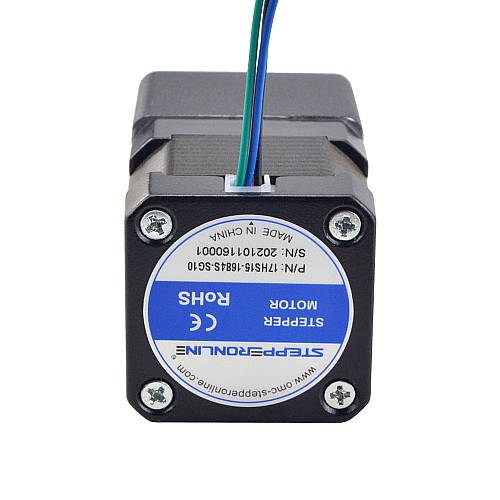

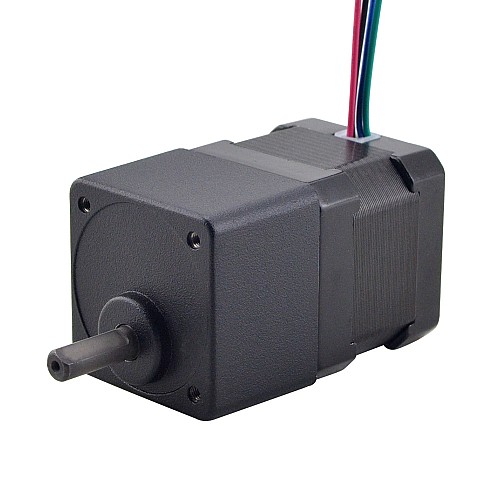

Nema 17 Stepper Motor Spur Gearbox Gear Ratio 10:1

0 reviews - Write a review

C$65.64

5 + C$62.56

10 + C$59.75

50 + C$57.17

100 + C$54.82

In Stock: 10000
Model: 17HS15-1684S-SG10
Gross Weight: 0.50kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 89

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 17HS15-1684S-SG10
Step Angle without Gearbox: 1.8deg
Holding Torque without Gearbox: 36Ncm(51oz.in)
Rated Current/phase: 1.68A
Phase Resistance: 1.65ohms
Inductance: 3.2mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur
Gear Ratio: 10:1
Efficiency: 90%

Physical Specifications

Frame Size: 42 x 42mm
Motor Length: 39mm
Gearbox Length: 28.5mm
Shaft Diameter: Φ6.35mm
Shaft Length: 20mm
D-cut Length: 12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 0.4kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	1.68
Has Torque/Thrust Curve?	Yes
Holding Torque w/o Gearbox(N.m)	0.36
Inductance(mH)	3.2
Phase Resistance(ohms)	1.65
Physical Specification
Backlash at No-load	<=1deg
Body Length(mm)	67.5
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	10
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	6.35
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	400
