NEMA 23 Captive Acme Linear Stepper Motor 4.0A 75mm Stack Screw Lead 5.08mm(0.2") Travel 63.5mm

0 reviews - Write a review

C$121.23

5 + C$117.58

10 + C$114.15

50 + C$110.91

100 + C$107.85

In Stock: 10000
Model: 23C30S4004HG5-064RS
Gross Weight: 1.50kg
Certificated: ISO, CE, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

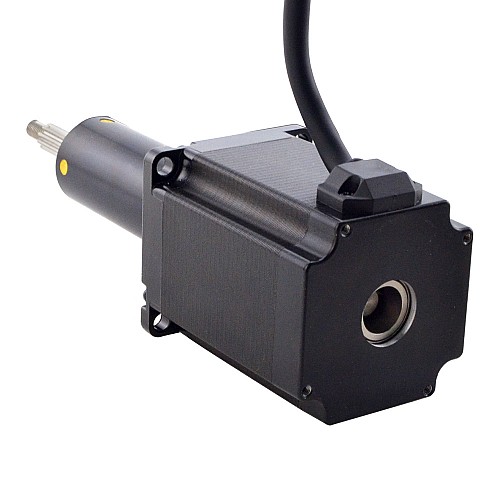

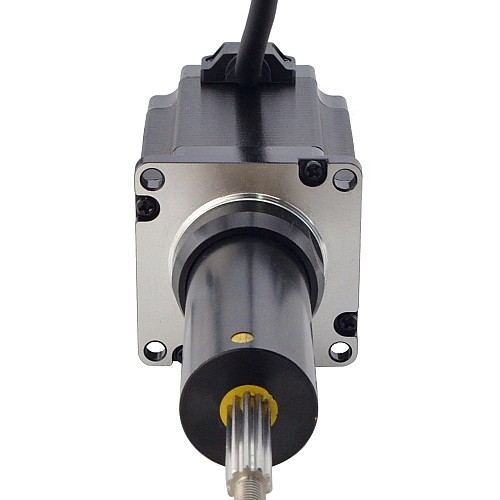

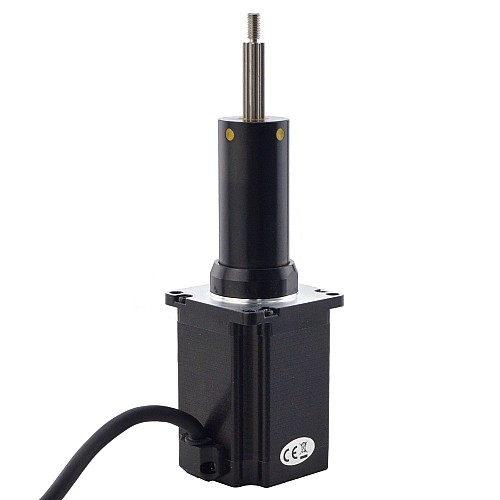

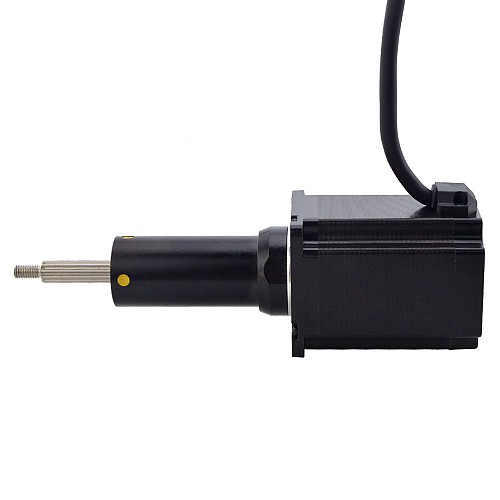

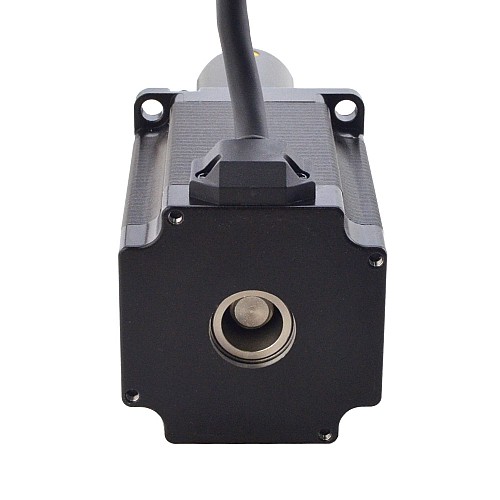

This model is a Nema 23 Captive ACME screw linear stepper motor with a 75mm body length, 1.8 degree step angle and 4.0A rated current. It is integrated with a 9.525mm(0.375") diameter, 63.5mm(2.5") Stroke Length, the linear travel is 5.08mm(0.2") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.

Electrical Specification

Manufacturer Part Number: 23C30S4004HG5-064RS
Motor Type: Captive
Step Angle: 1.8°
Holding Torque: 2Nm(283.28oz.in)
Rated Current/phase: 4.0A
Phase Resistance: 0.9ohms
Inductance: 4.3mH±20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm
Body Length: 75mm
Stroke Length: 63.5mm(2.5")
Lead Screw Diameter: Φ9.525mm(0.375")
Lead/Step: 0.0254mm(0.001")
Lead Travel/Revolution: 5.08mm(0.2")
Number of Leads: 4
Cable Length: 500mm

Connection

A+	A-	B+	B-
Red	Red/White	Green	Green/White

● How to order a custom linear motor? Custom Linear Stepper Motor

● If you only have the old part number, get the new one here Show Details

● How we named linear motor? Part Number Construction

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Inductance(mH)	4.3
Phase Resistance(ohms)	0.9
Rated Current(A)	4.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	75
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
Lead Screw Diameter(mm)	9.525
Lead Travel/Revolution(mm)	5.08
Lead Travel/Step(mm)	0.0254
Linear Motor Type	Captive
No. of Lead	4
Stroke Length(mm/ft)	63.5

Lead Screw End Machining
- Male/female threaded ends to specified thread and pitch
- Custom-machined journals and ring groove
- Hex or square ends
- Keyways and cross holes

Anti-Backlash Nut

STEPPERONLINE provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).
There should be a nominal backlash between lead screw and STEPPERONLINE standard plastic nut after millions of cycles. STEPPERONLINE guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, STEPPERONLINE provides spring pressure structure of anti-backlash nut.

Encoders

According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.
Also various resolution can be chosen freely for easier and precise positioning.
All STEPPERONLINE standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

Brakes

Especially Vertical applications or holding motors from sudden power-off status, STEPPERONLINE standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Wiring, Cabling and Connectors

Flying wire leads or connectors
Twisting wire leads
Heat shrink or expandable tubing
Cable housings

Teflon Coated Screw

If customer's applications require greaseless screw and nut combination, STEPPERONLINE offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in STEPPERONLINE and all types of linear actuators such as External, Non-Captive, and Captive.
In addition, Anti-backlash nut also can be combined with teflon coated screw too.
