Nema 23 Non-captive 66mm Stack 2.5A Lead 10.16mm(0.4") Length 150mm

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 23N26S2504NG3-150RS
Gross Weight: 1.06kg
Certificated: ISO, CE, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

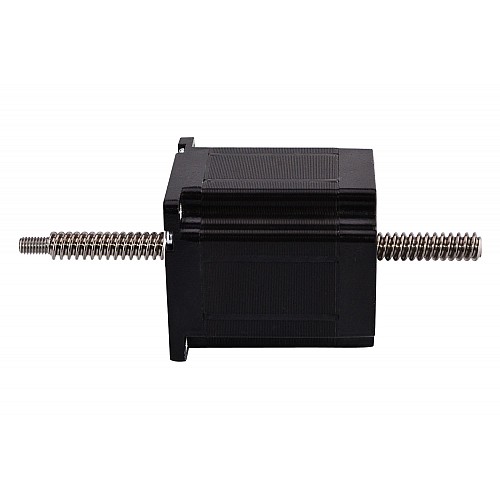

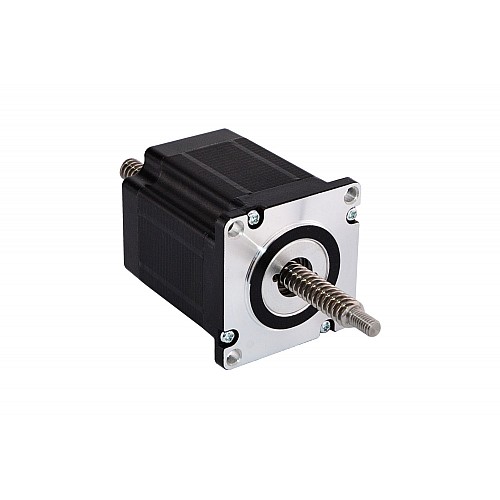

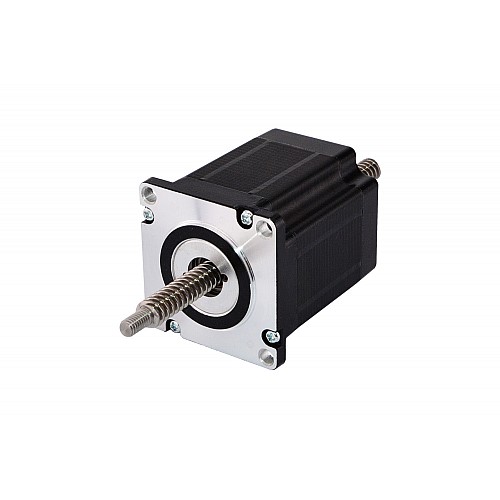

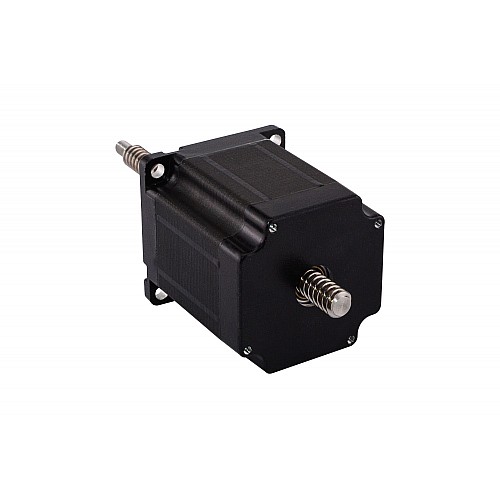

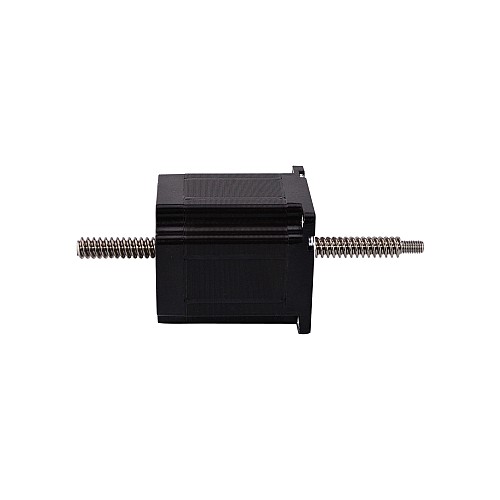

This model is almost exactly same as Haydon Kerk 57000 series size 23 double stack non-captive stepper motor linear actuator. The motor part is 66mm body 1.8 degree 2.5A Nema 23 stepper motor, and it works with a 9.53mm(0.3752") diameter 150mm(5.9055") length lead screw, the linear travel is 10.16mm(0.4") per revolution.

Electrical Specification

Manufacturer Part Number: 23N26S2504NG3-150RS(23N26S2504NG-150RS)
Motor Type: Non-captive Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 220N(300pps)
Rated Current/phase: 2.5A
Phase Resistance: 2.1ohms
Voltage: 5V
Inductance: 8.2mH±20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm
Body Length: 66mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ9.53mm(0.3752")
Lead/Step: 0.0508mm(0.002")
Lead Travel/Revolution: 10.16mm(0.4")
Number of Leads: 4
Cable Length: 300mm
Weight : 958g

Connection

A+	A-	B+	B-
Red	Red/White	Green/White	Green

Due to some reasons, we have temporarily stopped producing and selling this product. This product cannot be ordered. The alternative product is 23N30S4004NG5-250RS.

Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Inductance(mH)	8.2
Minimal Thrust(N) @300pps	220
Phase Resistance(ohms)	2.1
Rated Current(A)	2.5
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	66
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
Lead Screw Diameter(mm)	9.53
Lead Screw Length(mm)	150
Lead Travel/Revolution(mm)	10.16
Lead Travel/Step(mm)	0.0508
Linear Motor Type	Non-Captive
No. of Lead	4
