Nema 23 Bipolar 1.8deg 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires

Hot

Nema 23 Bipolar 1.8deg 1.85Nm(261.98oz.in) 2.8A 57x57x76mm 4 Wires

0 reviews - Write a review

C$28.00

5 + C$26.68

10 + C$25.49

50 + C$24.38

100 + C$23.38

In Stock: 10000
Model: 23HS30-2694S
Gross Weight: 1.20kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 721

Click country for real-time stock

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

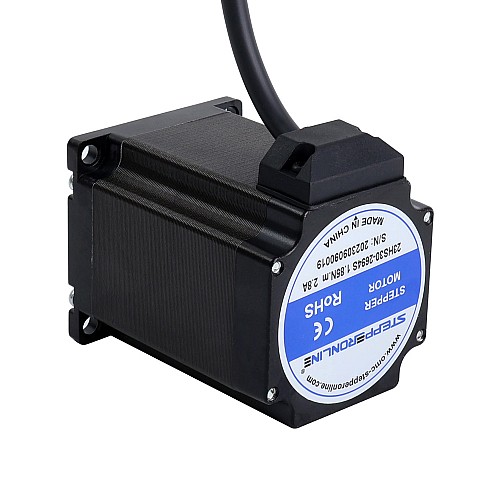

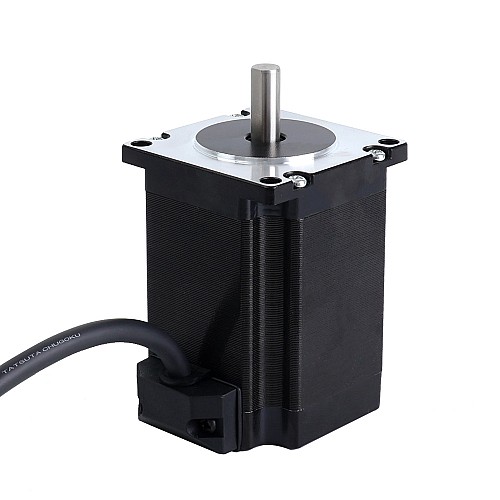

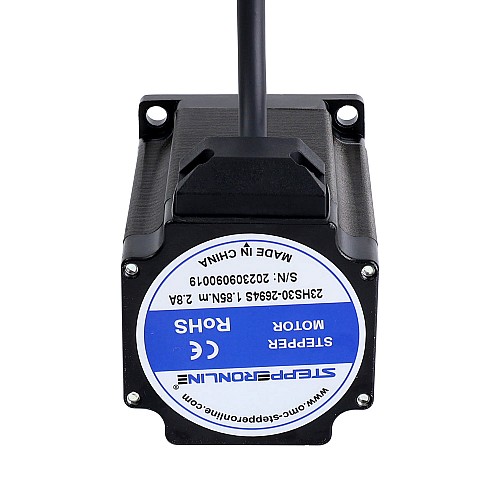

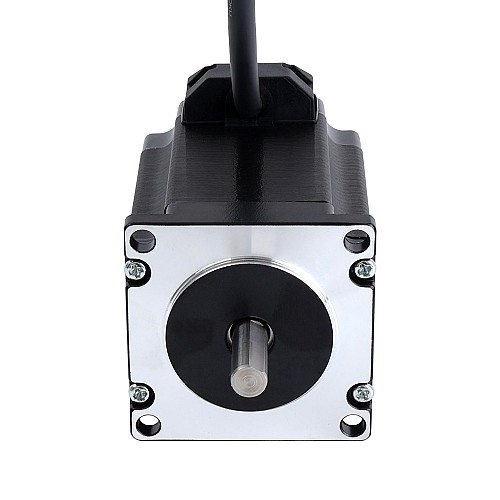

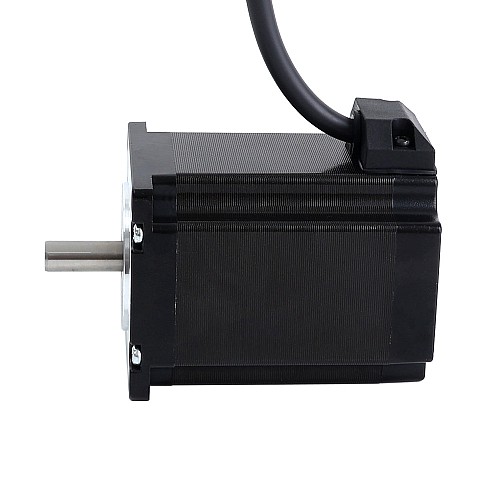

This Nema 23 stepper CNC motor has a step angle of 1.8degrees, size of 57x57x76mm, and draws 2.8A per phase. It has 4 wires and has a holding torque of 1.85Nm(261.98oz.in).

Electrical Specification

Manufacturer Part Number: 23HS30-2694S
Number Of Phase: 2
Step Angle: 1.8deg
Holding Torque: 1.85Nm(261.98oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 1.1 ohms± 10%
Inductance: 5.4mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 76mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-CUT Shaft Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 1.08kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	185
Holding Torque(oz.in)	261.98
Inductance(mH)	5.4
Phase Resistance(ohms)	1.1
Rated Current(A)	2.8
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	76
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	8
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1080
