86IBL400-4830
Input Voltage(V)48VDC
Holding Torque(Ncm)127
Rated Current(A)8.33
Holding Torque(oz.in)179.85
Question

Pre-order: A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

Downloads

Same series
ModelInput Voltage(V)Holding Torque(Ncm)Rated Current(A)Holding Torque(oz.in)PriceStock
86IBL100-241524VDC644.1790.63C$186.44In stock
86IBL200-241524VDC1278.33179.85C$186.44In stock
86IBL200-483048VDC644.1790.63C$186.44Backorder
86IBL400-483048VDC1278.33179.85C$203.38Backorder
Nema 34 86x86x152mm Integrated Brushless DC Motor 400W 48V 3000RPM 1.27Nm 8.33A w/ Driver
This is Nema 34 86x86x152mm integrated brushless DC Motor 400W 48V 3000RPM 1.27Nm 8.33A with driver.... Read More
from
C$203.38
5 or more: C$196.43
10 or more: C$189.94
50 or more: C$183.86
100 or more: C$178.16

Select a country to see live inventory

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more

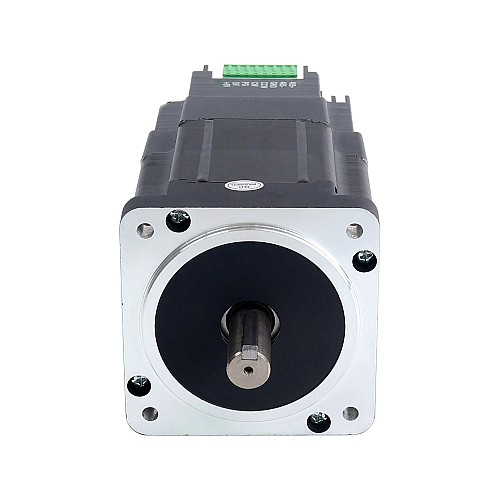

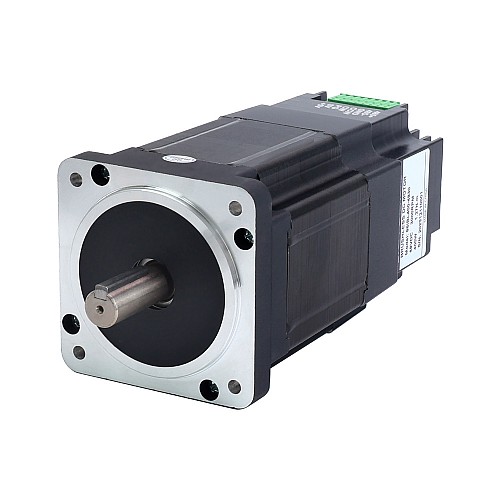

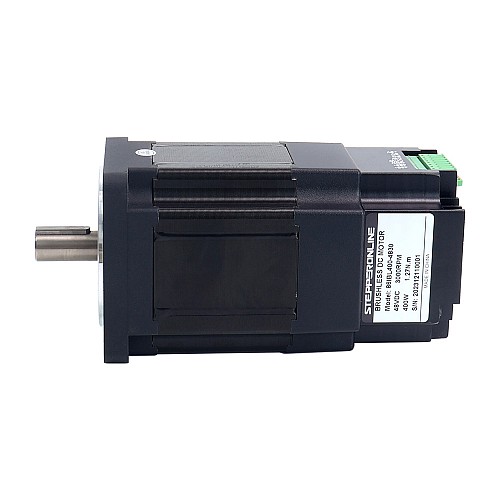

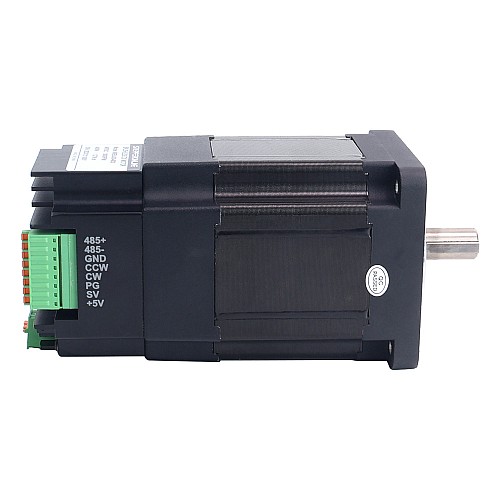

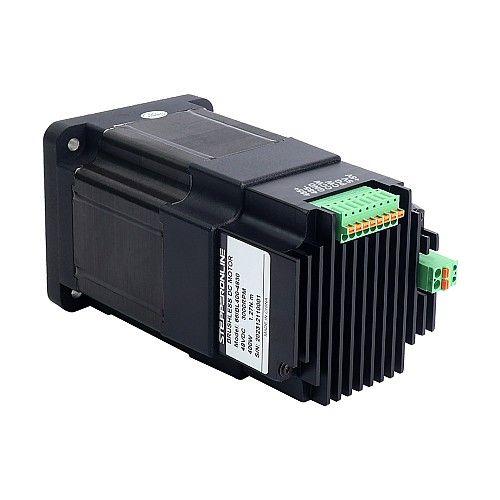

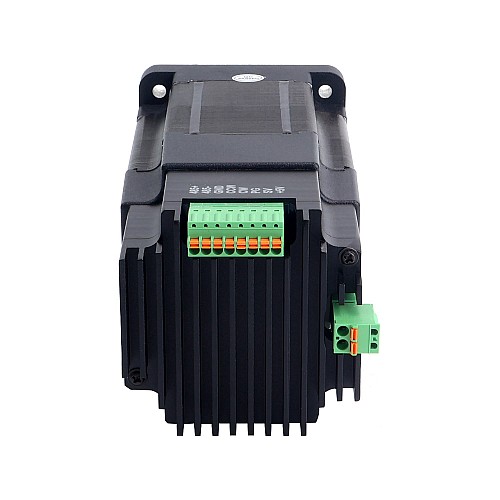

This is Nema 34 86x86x152mm integrated brushless DC Motor 400W 48V 3000RPM 1.27Nm 8.33A with driver. The 86IBL series of integrated brushless motors are mechatronics products developed to cooperate with the field of industrial automatic control. This motor is equipped with a high-performance dedicated brushless DC motor driver chip, which has a series of advantages such as high integration, small size, complete protection, simple and clear wiring, and high reliability. This series includes a variety of integrated motors ranging from 100 to 400W. In addition, the built-in driver is equipped with new PWM technology, which enables the brushless motor to run at high speed, with small vibration, low noise, good stability and high reliability.

Key Features

  • 20KHZ chopper frequency
  • High performance at a low price
  • PID speed and current dual-loop regulator
  • Integrated, saving space and reducing wiring
  • Over-voltage, under-voltage, over-current, current peak value, Hall signal and other fault alarm functions
  • The communication mode adopts the standard Modbus protocol, uses a two-wire serial link communication based on RS485, and the transmission mode is RTU.

Electrical Specifications

  • Manufacturer Part Number: 86IBL400-4830
  • Phase: 3
  • Poles: 8
  • Rated Power: 400W
  • Rated Voltage: 48VDC
  • Rated Speed: 3000±10%RPM
  • Rated Current: 8.33±10%A
  • Rated Torque: 1.27Nm(179.85oz.in)
  • Insulation Class: B 130°C[266°F]
  • Resistance/phase: 0.21±10%Ohms
  • Inductance/phase: 0.51±20%mH
  • Sensor: HALL

Physical Specifications

  • Frame Size: Nema 34 (86 x 86mm)
  • Body Length: 152mm
  • Shaft Diameter: 14mm
  • Shaft Length: 32mm
Product Type
Product Type Integrated BLDC Motor
Electrical Specification
Holding Torque(Ncm) 127
Holding Torque(oz.in) 179.85
Inductance(mH) 0.51
Input Voltage(V) 48VDC
No. of Phase 3
Phase Resistance(ohms) 0.21
Rated Current(A) 8.33
Rated Power(W) 400
Rated Speed(rpm) 3000
Physical Specification
Body Length(mm) 152
Frame Size(mm) Nema 34 (86 x 86)
Shaft Diameter(mm) 14
Shaft Length(mm) 32
