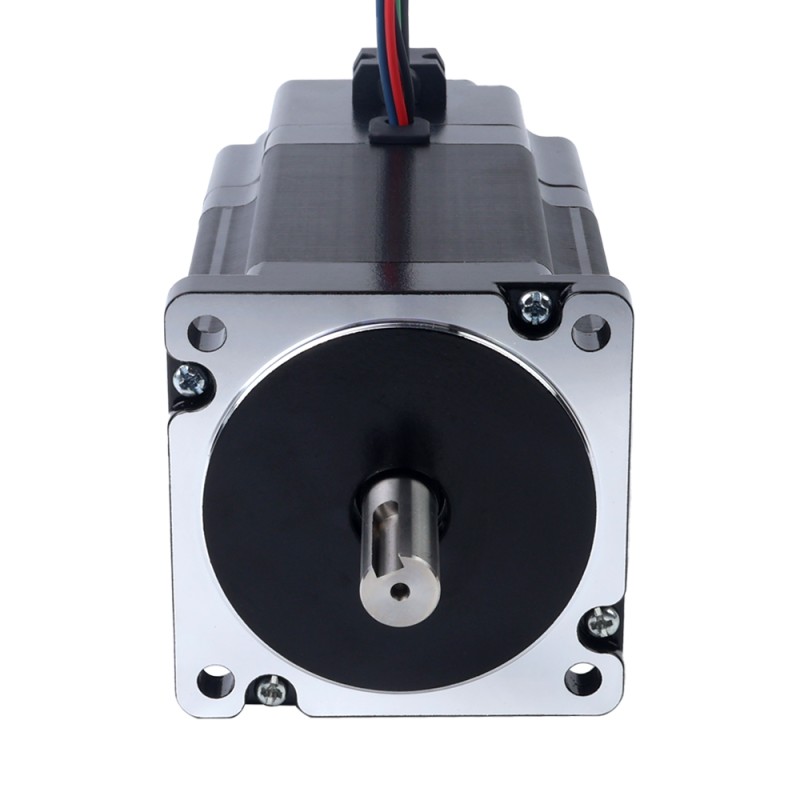

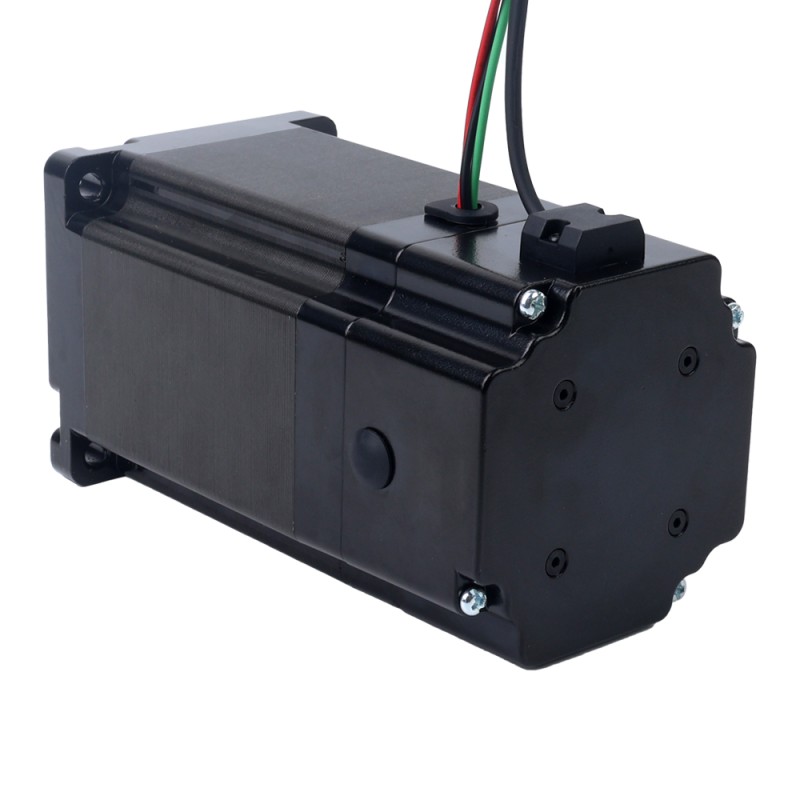

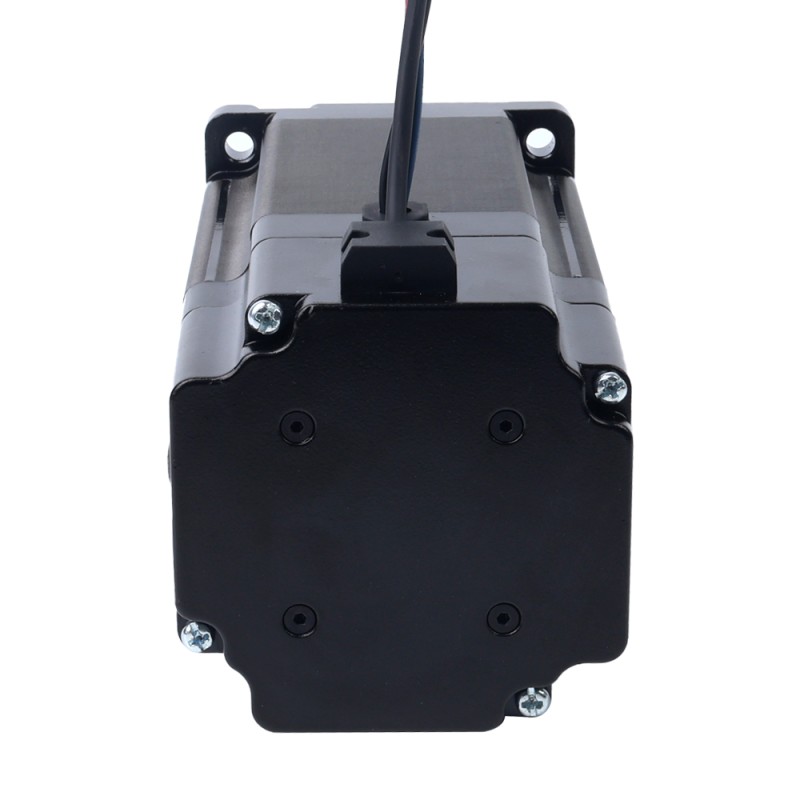

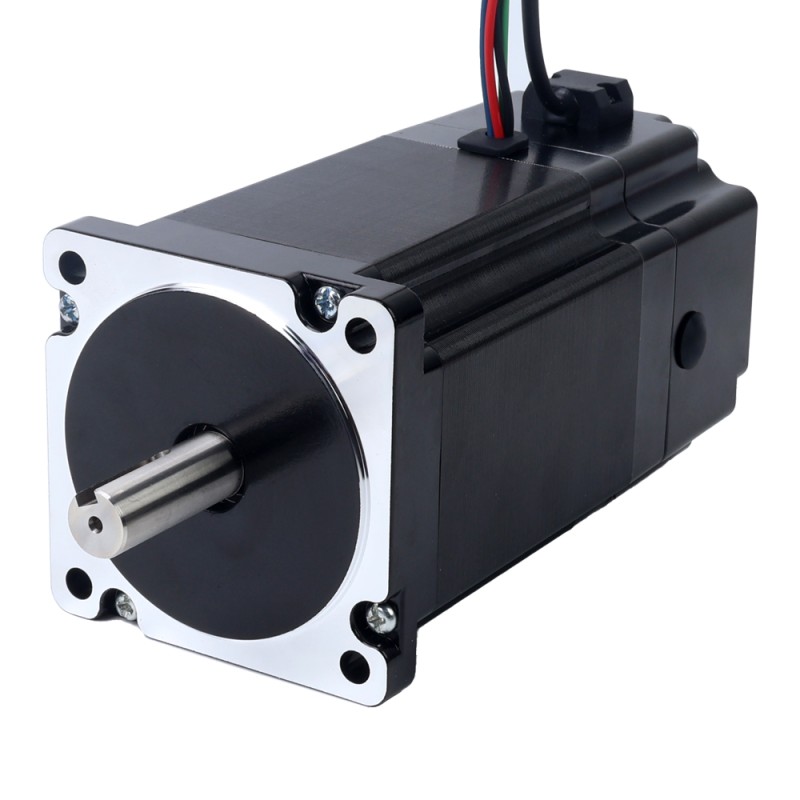

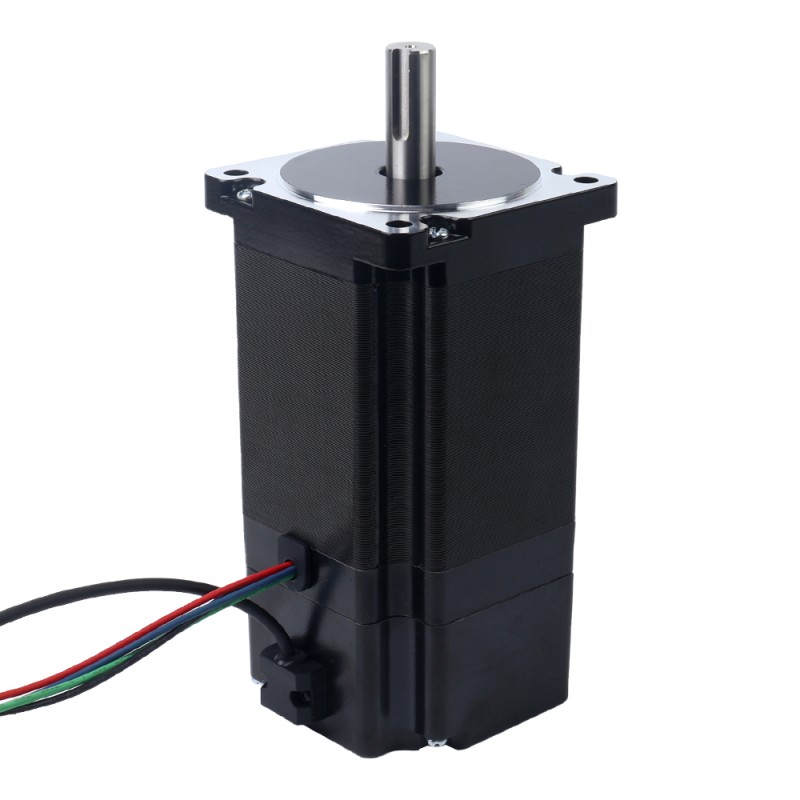

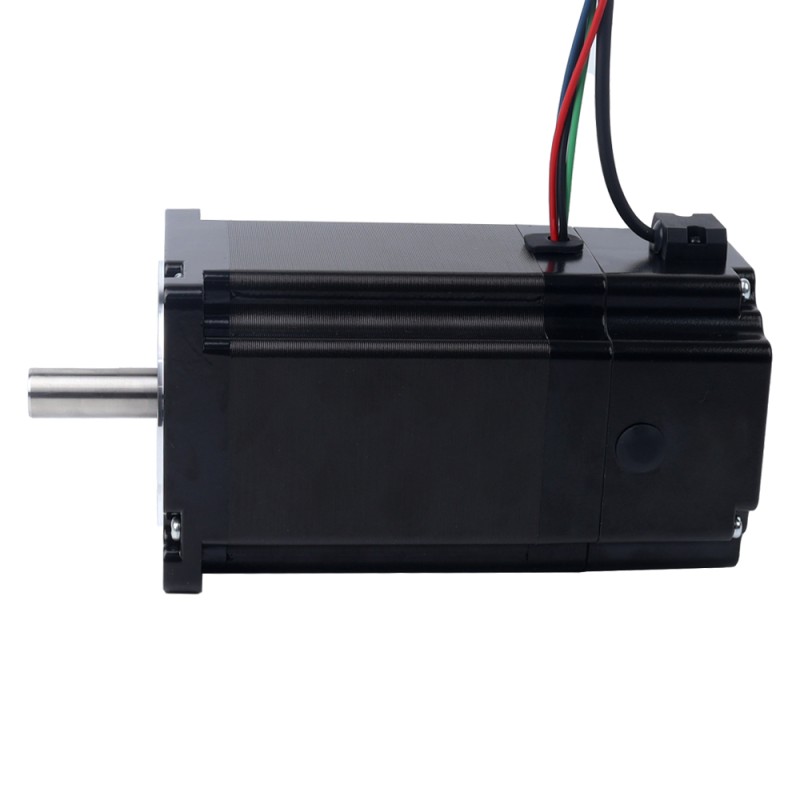

Name: Nema 34 Stepper Motor 8.5Nm(1203.70oz.in) with 24V 6.8W Electromagnetic Brake
Brand: STEPPERONLINE
SKU: 34HS46-6004D-B700
Price: 107.50 CAD
Availability: InStock

Nema 34 Stepper Motor 8.5Nm(1203.70oz.in) with 24V 6.8W Electromagnetic Brake

34HS46-6004D-B700

Shaft Diameter(mm)14

Shaft Length(mm)37

Holding Torque(Ncm)850

Rated Current(A)6.0

Question

Downloads

34HS46-6004D-B700_Full_Datasheet.pdfPDF · 132.5KB 34HS46-6004D-B700.STEPSTEP · 1.07MBLog in to download 34HS46-6004D-B700_Torque_Curve.pdfPDF · 78.94KB

Same series

Model	Shaft Diameter(mm)	Shaft Length(mm)	Holding Torque(Ncm)	Rated Current(A)	Price	Stock
34HS31-6004D-B700	14	37	480	6.0	C$93.90	In stock
34HS38-4204D-B400	14	37	700	4.24	C$131.81	Backorder
34HS46-6004D-B700	14	37	850	6.0	C$107.50	In stock
34HS61-6004D-B700	14	37	1300	6.0	C$125.63	In stock

Nema 34 Stepper Motor 8.5Nm(1203.70oz.in) with 24V 6.8W Electromagnetic Brake

This is a Nema 34 stepper motor with a 24V 6.8W electromagnetic brake. The motor comes with a holdin... Read More

0 reviews • Write a review

from

C$107.50

5 + C$103.07

10 + C$98.98

50 + C$95.21

100 + C$91.71

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a Nema 34 stepper motor with a 24V 6.8W electromagnetic brake. The motor comes with a holding torque of 8.5Nm(1203.70oz.in), rated current of 6.0A and 161mm body length.
The built-in electromagnetic brake realizes the function of frequently starting and stopping a stepper motor to ensure that the motor is powered on or locked when it is powered off.
With its unique advantages like affordable price, energy saving, environmental protection, long life, and easy maintenance, etc., it is widely used in automated equipment such as dispensing machines, elevators, CNC machine tools, tapering machines, and packaging machines.

Electrical Specification

Manufacturer Part Number: 34HS46-6004D-B700
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 8.5Nm(1203.70oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.52ohms±10%
Inductance: 5.50mH±20%(1KHz)
Insulation Class: B 130°C[266°F]
Brake Rated Voltage: 24V
Brake Torque: 7.0Nm(991.28oz.in)
Brake Power: 6.8W

Physical Specification

Frame Size: 86 x 86mm
Body Length: 161mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Length: 25mm
Motor Cable Length: 500mm
Brake Cable Length: 180mm

Connection

A+	A-	B+	B-	Brake DC+	Brake DC-
Black	Green	Red	Blue	Red	Black

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Holding Torque(Ncm)	850
Holding Torque(oz.in)	1203.7
Phase Resistance(ohms)	0.52
Rated Current(A)	6.0
Stepper Motor with	Brake
Brake Specification
Brake Power(W)	6.8
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	700
Brake Torque(oz.in)	991.28
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
IP Rating	40
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	37
