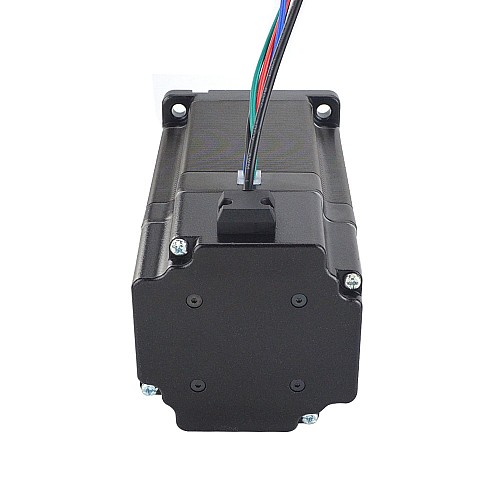

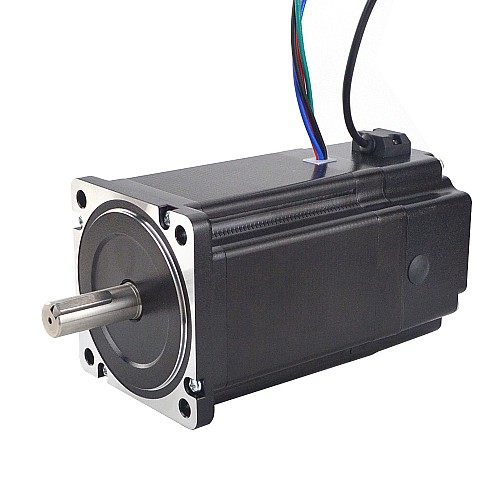

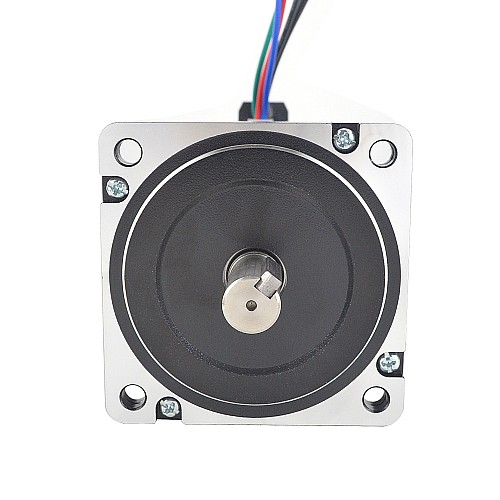

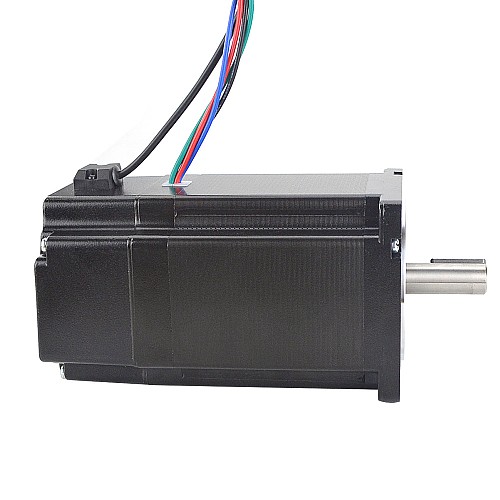

P Series Nema 34 Stepper Motor 8.5Nm(1203.94oz.in) with Electromagnetic Brake

0 reviews - Write a review

C$180.04

5 + C$171.56

10 + C$163.85

50 + C$156.81

100 + C$150.34

In Stock: Pre-order
Model: 34BK50-85
Gross Weight: 5.00kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 20

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 34BK50-85
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 8.5Nm(1203.94oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.54ohms
Inductance: 5.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 112.3mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
keyway Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 3.6kg

Brake Connections

Red--24V+
Red--24V-
5.0Nm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Electrical Specification
Holding Torque(Ncm)	850
Holding Torque(oz.in)	1203.94
Phase Resistance(ohms)	0.54
Rated Current(A)	6.0
Stepper Motor with	Brake
Brake Specification
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	500
Brake Torque(oz.in)	708.06
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	14
Shaft Length(mm)	37
