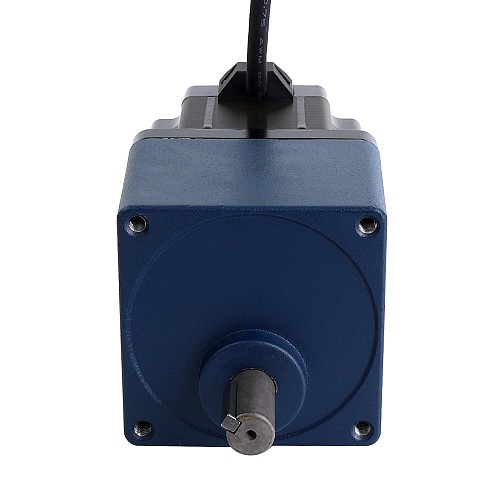

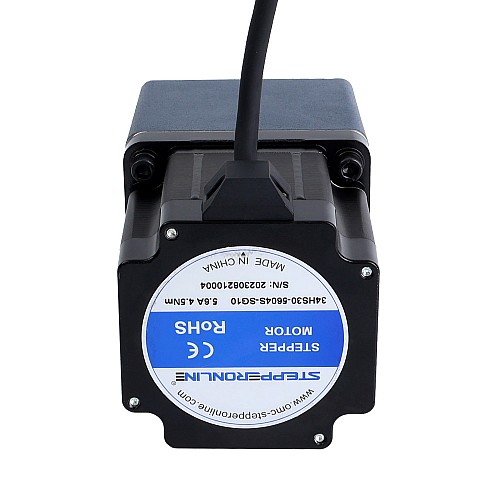

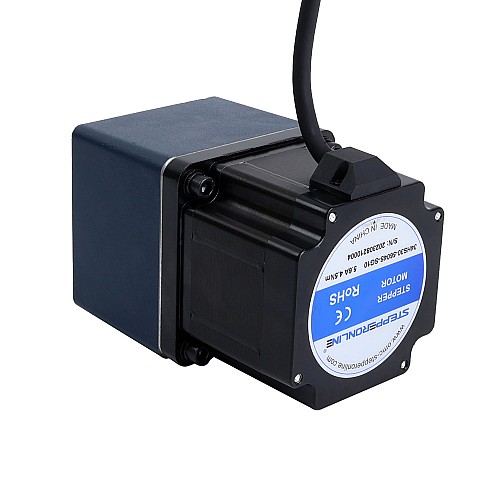

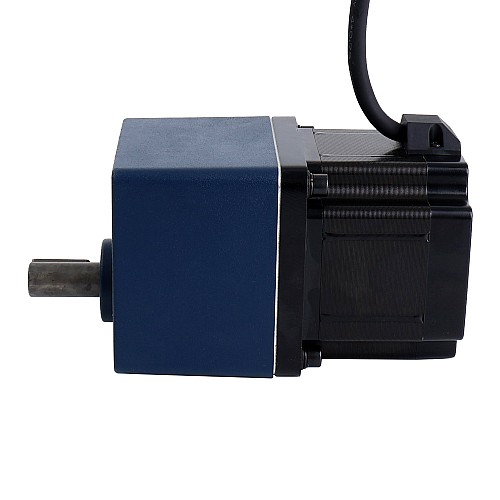

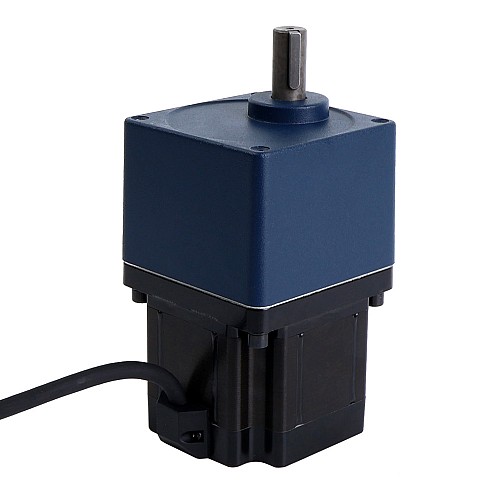

Nema 34 Stepper Motor L=76mm Gear Ratio 10:1 Spur Gearbox

0 reviews - Write a review

C$160.67

5 + C$152.32

10 + C$144.80

50 + C$138.00

100 + C$131.78

In Stock: 10000
Model: 34HS30-5604S-SG10
Gross Weight: 3.88kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This Nema 34 stepper motor is equipped with a spur gearbox. The gear ratio is 10:1 and the max. return difference is 4deg. It's a good solution to applications that require reliability, compact design and high torque but low cost.

Electrical Specification

Manufacturer Part Number: 34HS30-5604S-SG10
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8deg
Holding Torque without Gearbox: 4.5Nm(637.25oz.in)
Rated Current/phase: 5.6A
Phase Resistance: 0.35ohms±10%
Inductance: 2.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Gearbox Specifications

Gearbox Type: Spur
Gear Ratio: 10:1
Efficiency: 81%
Return Difference: <=4deg
Max.Permissible Torque: 10Nm(1416.12oz.in)
Moment.Permissible Torque: 20Nm(2832.24oz.in)
Max. Input Speed: 1350rpm
Max. Output Speed: 50rpm

Physical Specifications

Frame Size: 90 x 90mm
Motor Length: 76mm
Gearbox Length: 65.5mm
Shaft Diameter: Φ15mm
Shaft Length: 38mm
Keyway length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 3.602kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Geared Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Current(A)	5.6
Has Torque/Thrust Curve?	No
Holding Torque w/o Gearbox(N.m)	4.5
Inductance(mH)	2.8
Phase Resistance(ohms)	0.35
Physical Specification
Backlash at No-load	<=4deg
Body Length(mm)	141.5
Frame Size(mm)	Nema 34 (86 x 86)
Gear Ratio(xx:1)	10
Gearbox Type	Spur Gearbox
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	Keyway
Shaft Diameter(mm)	15
Shaft Length(mm)	38
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	3602
